9.7.6 Figure 6 - 914CBR-VxxxBT
130BD213.10
1
2
[ L+2,83 ]
L+72
[0,71]
18
L
L1
[ 4,74 ]
120
[ 4,53 ]
115
[ 4,02 ]
102
[ 4,88 ]
124
1 Name plate
2 Hot surface warning x2

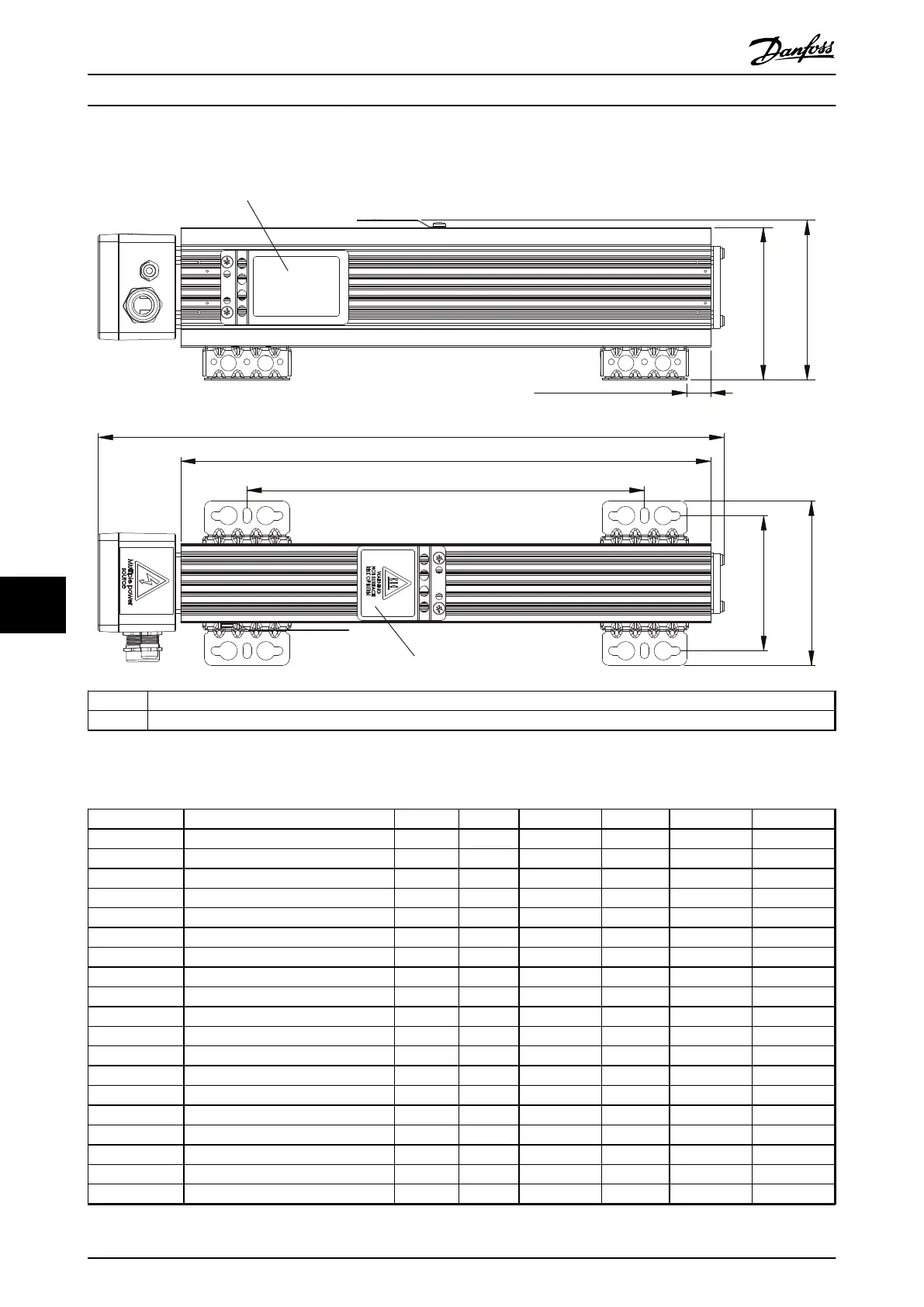

Illustration 9.29 IP65, Side View and Top View
Danfoss P/N Typecode
[Ω]
L ±2 mm L ±0.08 in L1 ±2 mm L ±0.08 in
Weight [kg]
175U3010 MCE101A200RP360RE65TAW 200 210 8.27 110 4.33 1.8
175U3013 MCE101A145RP450RE65TAW 145 260 10.24 160 6.3 2.4
175U3015 MCE101A145RP280RE65TAW 145 160 6.3 70 2.76 1.3
175U3018 MCE101A110RP360RE65TAW 110 210 8.27 110 4.33 1.8
175U3020 MCE101A105RP570RE65TAW 105 330 12.99 230 9.06 3
175U3023 MCE101A80R0P450RE65TAW 80 260 10.4 160 6.3 2.4
175U3025 MCE101A72R0P960RE65TAW 72 560 22.05 460 18.11 4.6
175U3028 MCE101A56R0P680RE65TAW 56 400 15.75 300 11.81 3.5
175U3030 MCE101A52R0P1K29E65TAW 52 760 29.92 660 25.98 6.1
175U3035 MCE101A38R0P1K13E65TAW 38 660 25.98 560 22.05 5.4
175U3042 MCE101A27R0P280RE65TAW 27 160 6.3 70 2.76 1.3
175U3054 MCE101A18R0P450RE65TAW 18 260 10.24 160 6.3 2.4
175U3060 MCE101A13R0P680RE65TAW 13 400 15.75 300 11.81 3.5
175U3069 MCE101A9R00P1K13E65TAW 9 660 25.98 560 22.05 5.4
175U3103 MCE101A1K20P360RE65TAW 1200 210 8.27 110 4.3 1.8
175U3105 MCE101A850RP280RE65TAW 850 160 6.3 70 2.76 1.3
175U3109 MCE101A630RP360RE65TAW 630 210 8.27 110 4.33 1.8
175U3111 MCE101A570RP570RE65TAW 570 330 12.99 230 9.06 3
175U3113 MCE101A415RP790RE65TAW 415 460 18.11 360 14.17 3.9
Specifications Design Guide
98 Danfoss A/S © Rev. 05/2014 All rights reserved. MG90O202
