Danfoss VLT Brake Resistor MCE 101

Danfoss P/N Typecode
[Ω]
L ±2 mm L ±0.08 in L1 ±2 mm L1 ±0.08 in
Weight [kg]
175U3336 MCE101A80R0P570RE54CAW 80 330 12.99 230 9.06 3
175U3337 MCE101A56R0P680RE54CAW 56 400 15.75 300 11.81 3.5
175U3338 MCE101A38R0P1K13E54CAW 38 660 25.98 560 22.05 5.4
175U3343 MCE101A145RP450RE54CAW 145 260 10.24 160 6.30 2.4
175U3344 MCE101A100RP570RE54CAW 100 330 12.99 230 9.06 3
175U3345 MCE101A72R0P680RE54CAW 72 400 15.75 300 11.81 3.5
175U3346 MCE101A52R0P1K13E54CAW 52 660 25.98 560 22.05 5.4
175U3351 MCE101A72R0P1K13E54CAW 72 660 25.98 560 22.05 5.4
175U3360 MCE101A105RP790RE54CAW 105 460 18.11 360 14.17 3.9

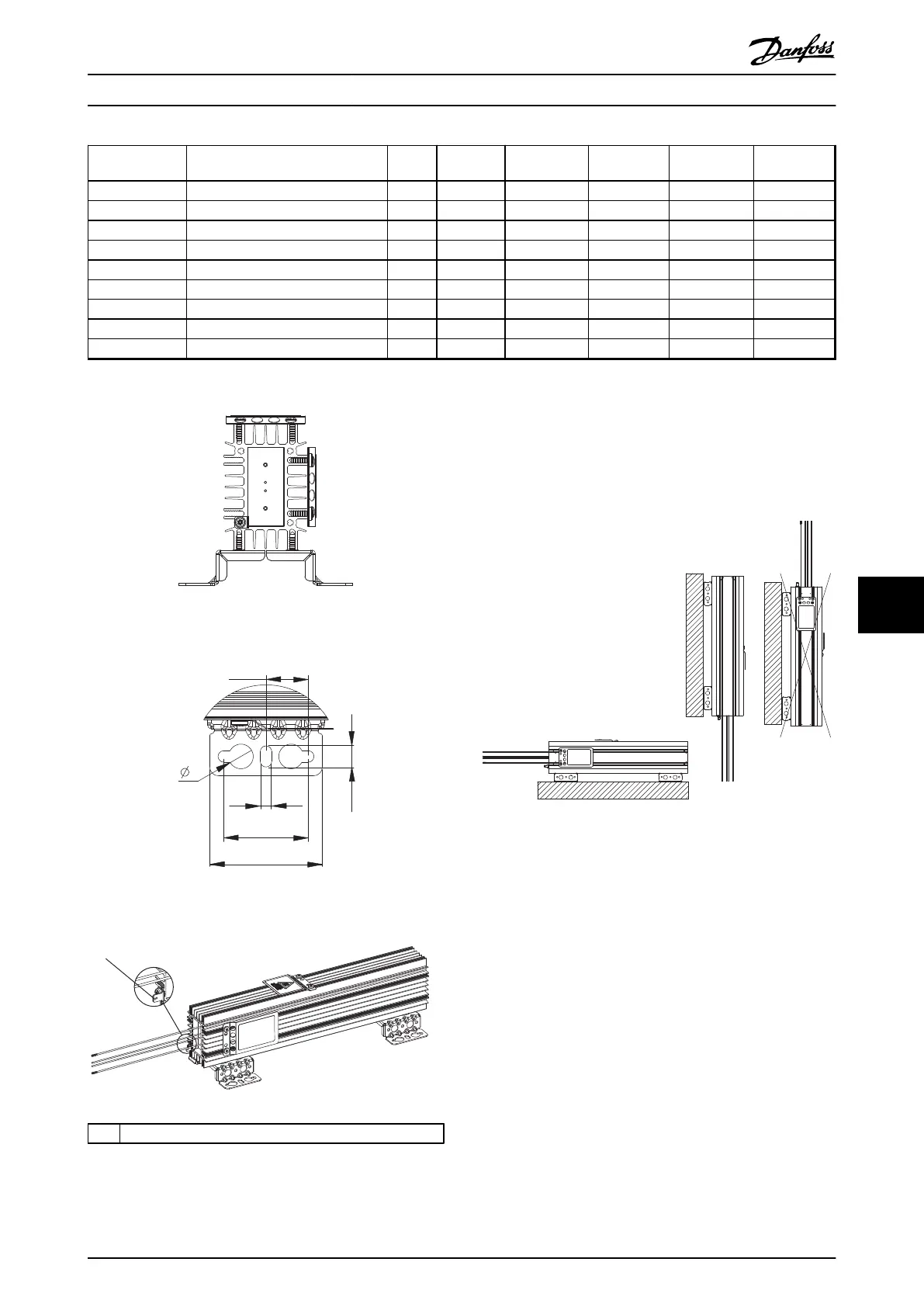

Table 9.11 Mechanical Dimensions
130BD220.10
Illustration 9.25 IP54, End View, Connection Box
[0,94]
24
[0,26]
6,5
[1,89]
48
[2,52]
64
[0,47] 12
[0,55]
14
130BD223.10
Illustration 9.26 Mounting Hole
1
130BD222.10
1 PE Male Fast-On tab 6.3x0.8
Illustration 9.27 IP54, 3D View
Mechanical mounting (see Illustration 9.28):
•
Vertical with connection box down, or
•
Horizontal
130BD221.10
Illustration 9.28 Mechanical Mounting
