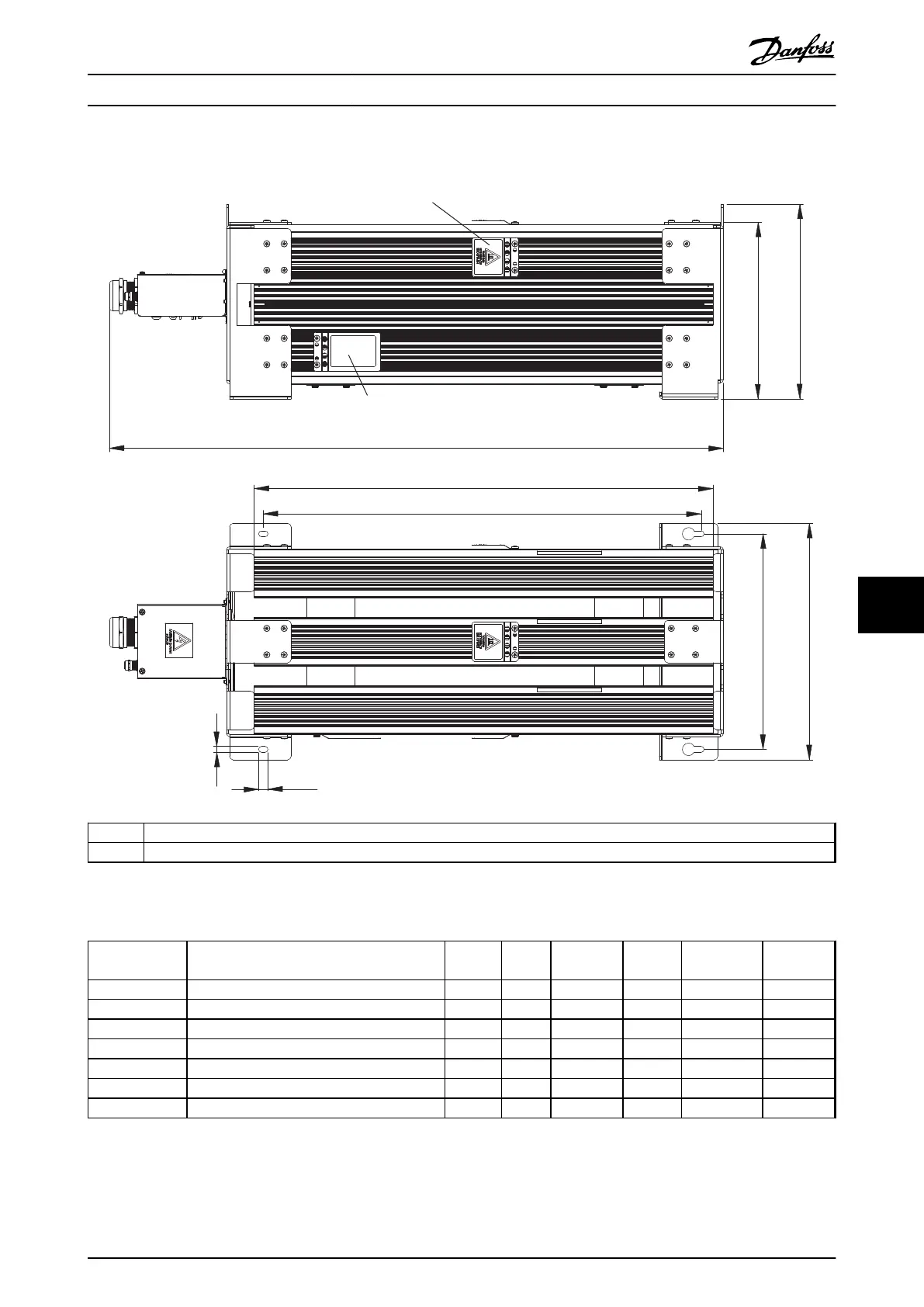

9.7.18 Figure 18 - 930CBT-VxxxGHT
130BD304.10
[L +8.82]
L +224
L
L1
[0.53]
13.5
[11.02]
280
1
2
[0.33]
8.5
[12.2]
310
[13.39]
340
[10]
254
1 Hot Surface Warning x3
2 Name plate
Illustration 9.91 IP21, Side View and Top View
Danfoss P/N
Type code
Ω
L±2
mm
L±0.08 in
L1±2
mm
L1±0.04 in
Weight [kg]
175U3076 MCE101A5R50P6K30E21TAW 5.5 660 25.98 630 24.8 39
175U3154 MCE101A42R0P8K20E21TAW 42 760 29.92 730 28.74 44.5
175U3162 MCE101A31R0P8K20E21TAW 31 760 29.92 730 28.74 44.5
175U3166 MCE101A28R0P6K30E21TAW 28 660 25.98 630 24.8 39
175U3170 MCE101A22R0P8K20E21TAW 22 760 29.92 730 28.74 44.5
175U3180 MCE101A5R70P8K20E21TAW 5.7 760 29.92 730 28.74 44.5
175U3182 MCE101A3R50P8K20E21TAW 3.5 760 29.92 730 28.74 44.5
Table 9.33 Mechanical Dimensions
