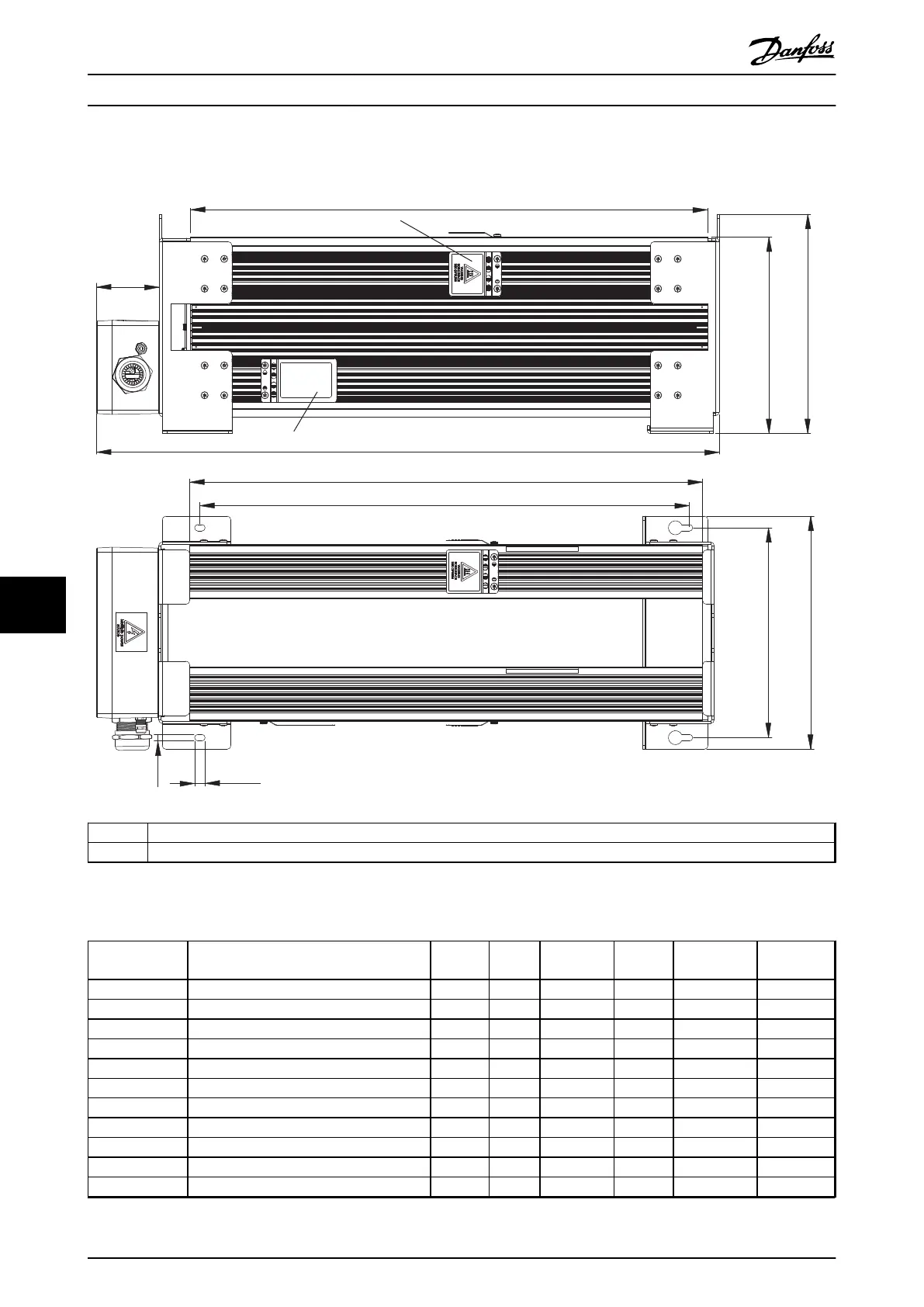

9.7.17 Figure 17 - 929CBT-VxxxBGHT
130BD286.10
[0.53]
13.5
[9.88]
251
[11.02]
280
[L + 5.31]
L + 135
L
L1
L
[3.15]
80
1
2
[10.63]
270
[0.33]
8.5
[11.81]
300
1 Hot surface warning x3
2 Name plate
Illustration 9.85 IP65, Side View and Top View
Danfoss code Typecode
Ω
L±2
mm
L±0.08 in L1±2 mm L1±0.04 in
Weight [kg]
175U3052 MCE101A15R5P3K50E65TAW 15,5 560 22.05 530 20.87 26.5
175U3058 MCE101A13R5P4K20E65TAW 13,5 660 25.95 630 24.8 30
175U3064 MCE101A11R0p5K50E65TAW 11 760 29.92 730 28.74 33.5
175U3066 MCE101A9R50P4K20E65TAW 9,5 660 25.95 630 24.8 30
175U3071 MCE101A7R00P5K50E65TAW 7 760 29.92 730 28.74 33.5
175U3135 MCE101A105RP4K20E65TAW 105 660 25.95 630 24.8 30
175U3143 MCE101A72R0P4K20E65TAW 72 660 25.95 630 24.8 30
175U3149 MCE101A52R0P5K50E65TAW 52 760 29.92 730 28.74 33.5
175U3157 MCE101A38R0P5K50E65TAW 38 760 29.92 730 28.74 33.5
175U3175 MCE101A13R0P3K50E65TAW 13 560 22.05 530 20.87 26.5
175U3177 MCE101A9R00P5K50E65TAW 9 760 29.92 730 28.74 33.5
Specifications Design Guide
122 Danfoss A/S © Rev. 05/2014 All rights reserved. MG90O202
