9.7.19 Figure 19 - 930CBT- VxxxBGHT
130BD298.10
[12.2]
310
[13.39]
340
[0.53]
13.5
L
L1
[L + 5.71]
L + 145
[3.54]
90
2
1
[10]
254
[11.02]
280
[0.33]
8.5
1 Hot Surface Warning
2 Name plate

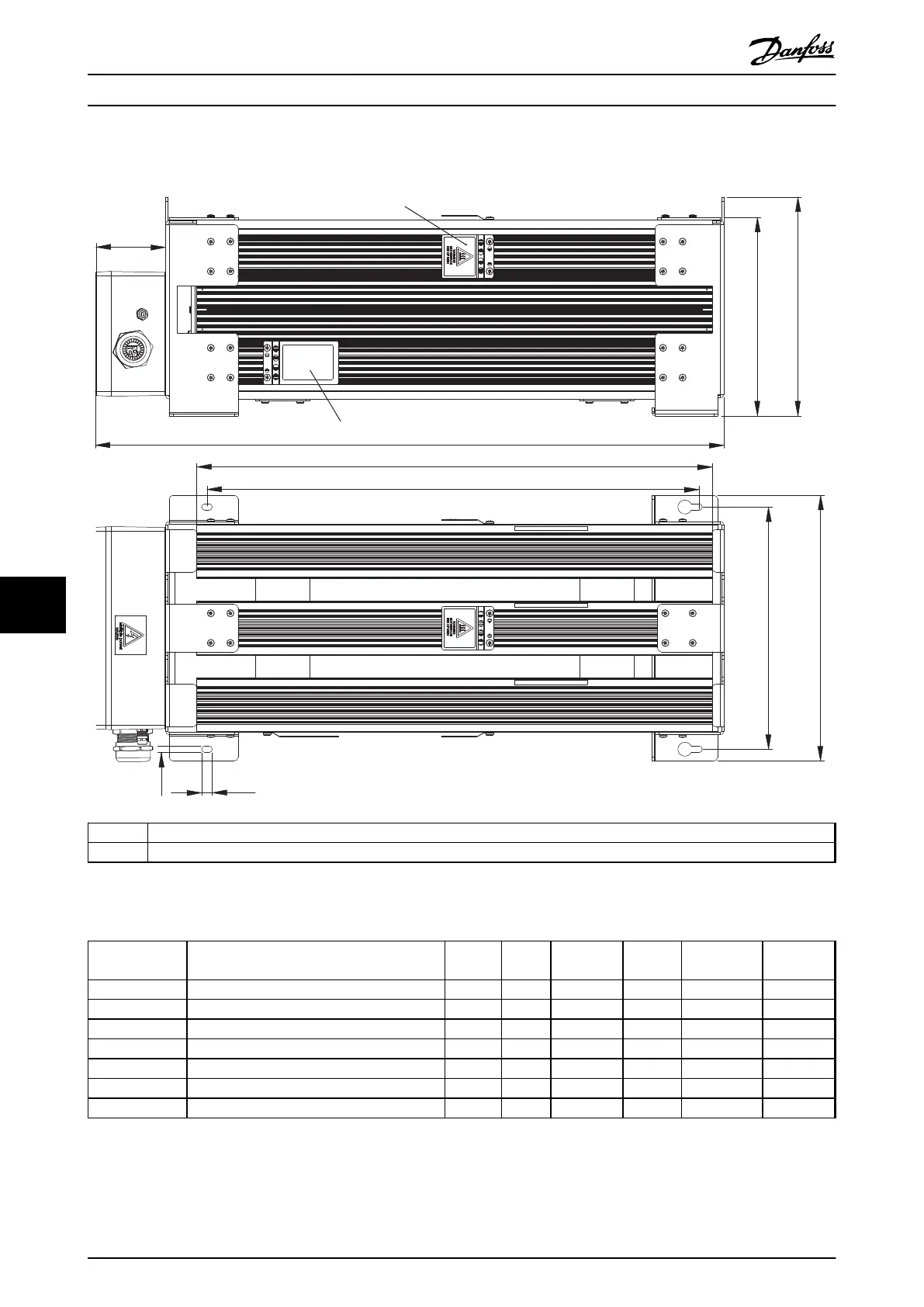

Illustration 9.97 IP65, Side View and Top View
Danfoss P/N
Type code
Ω
L±2
mm
L±0.08 in
L1±2
mm
L1±0.04 in
Weight [kg]
175U3077 MCE101A5R50P6K30E65TAW 5.5 660 25.98 630 24.8 39
175U3155 MCE101A42R0P8K20E65TAW 42 760 29.92 730 28.74 44.5
175U3163 MCE101A31R0P8K20E65TAW 31 760 29.92 730 28.74 44.5
175U3167 MCE101A28R0P6K30E65TAW 28 660 25.98 630 24.8 39
175U3171 MCE101A22R0P8K20E65TAW 22 760 29.92 730 28.74 44.5
175U3181 MCE101A5R70P8K20E65TAW 5.7 760 29.92 730 28.74 44.5
175U3183 MCE101A3R50P8K20E65TAW 3.5 760 29.92 730 28.74 44.5
Table 9.34 Mechanical Dimensions
