130BD299.10
1
[4.02]
102
[0.79]
20
[3.35]
85
[5.12]
130
1 Torque 1–1.4 Nm (8.86–12.34 in)

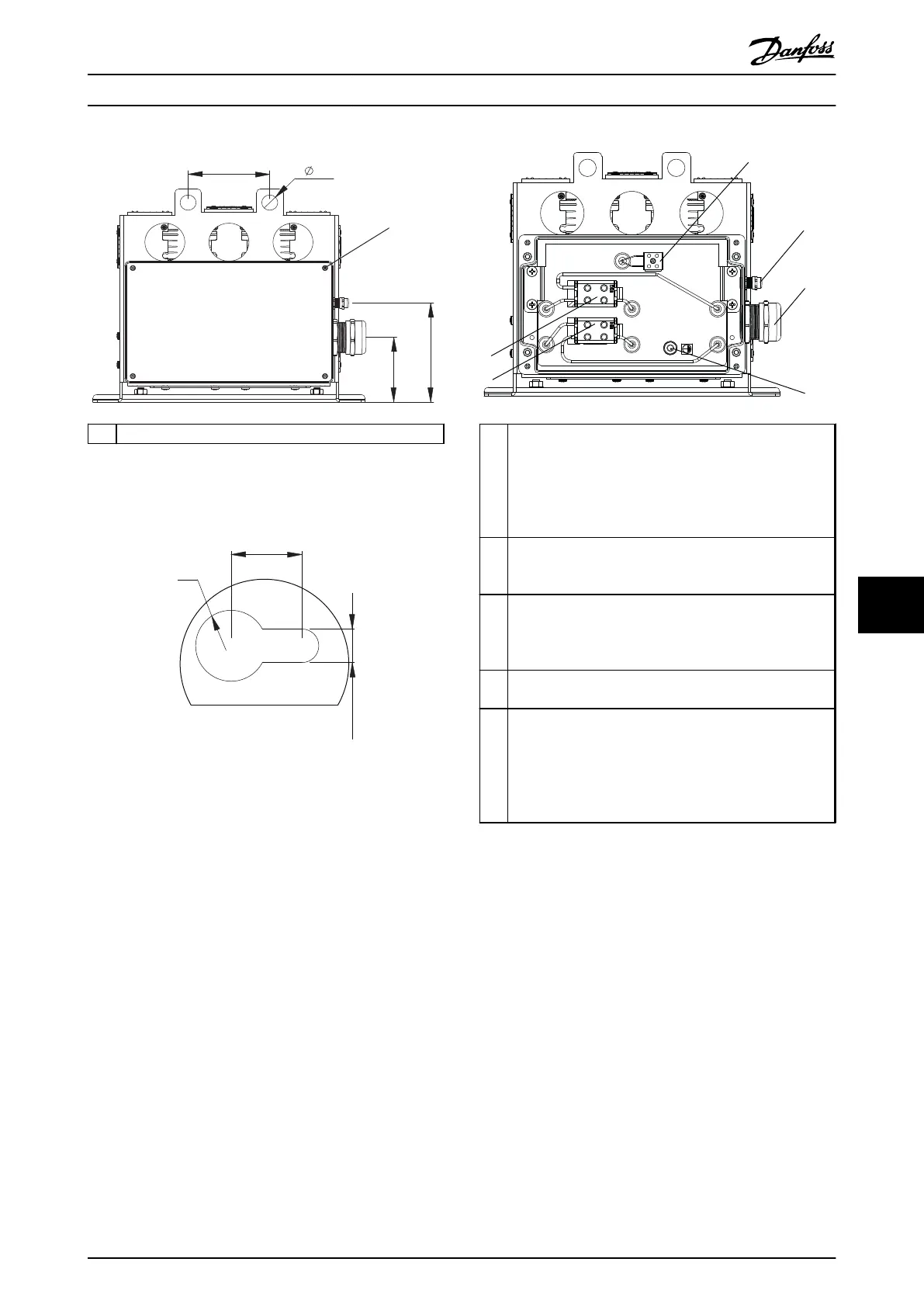

Illustration 9.98 IP65, End View, Connection Box
130BD303.10
[0.71]
18
[0.33]
8.5
[0.35]
R9
Illustration 9.99 Mounting Hole
1
2
3
4
5
130BD300.11
5
1 Temperature switch connection:
Marked: T1/T2, PHOENIX G5/2
IEC: 0.2-4 mm
2
/500 V
UL: AWG 28-10/300 V
Wire stripping: 8 mm (0.31 in)
Torque: 0.7 Nm (6.2 lb-in)
2 For temperature switch cable:
Clamping range: 3.5–7.0 mm (0.14–0.28 in)
Size Wrench (SW): 16 mm (0.63 in)
3 For resistor cable:
Cable gland with internal connection for braid
Clamping Range: 19-28 mm (0.74–1.1 in)
Size Wrench (SW): 45 mm (1.78 in)
4 PE: M8
Torque 5–5.5 Nm (44.28–48.71 lb-in)
5 Resistor connection:
Marked RB /RB2, ENSTO K66
IEC: Cu 2.5-50 mm
2
, AI 6-50 mm
2
/750 V
UL: AWG 6-1/0/600 V
Wire stripping: 23 mm (0.9 in)
Torque: 10 Nm (90 lb-in)
Illustration 9.100 Connection Box
Specifications Design Guide
MG90O202 Danfoss A/S © Rev. 05/2014 All rights reserved. 129
9 9
