Danfoss P/N Typecode
[Ω]
L ±2 mm L ±0.08 in L1 ±2 mm L ±0.08 in
Weight [kg]
175U3115 MCE101A410RP570RE65TAW 410 330 12.99 230 9.06 3
175U3117 MCE101A270RP790RE65TAW 270 460 18.11 360 14.17 3.9
175U3119 MCE101A270RP1K13E65TAW 270 660 25.98 560 22.05 5.4
175U3121 MCE101A200RP1K13E65TAW 200 660 25.98 560 22.05 5.4
175U3125 MCE101A145RP450RE65TAW 145 260 10.24 160 6.3 2.4
175U3137 MCE101A100RP570RE65TAW 100 330 12.99 230 9.06 3
175U3145 MCE101A70R0P790RE65TAW 70 460 18.11 360 14.17 3.9
175U3401 MCE101A100RP450RE65TAW 100 260 10.24 160 6.3 2.4
175U3403 MCE101A70R0P570RE65TAW 70 330 12.99 230 9.06 3
175U3405 MCE101A48R0P960RE65TAW 48 560 22.05 460 18.11 4.6
175U3407 MCE101A35R0P1K13E65TAW 35 660 25.98 560 22.05 5.4
175U3415 MCE101A410RP450RE65TAW 410 260 10.24 160 6.3 2.4
175U3417 MCE101A270RP570RE65TAW 270 330 12.99 230 9.06 3
175U3419 MCE101A200RP960RE65TAW 200 560 22.05 460 18.11 4.6
175U3421 MCE101A145RP1K13E65TAW 145 660 25.98 560 22.05 5.4
175U3429 MCE101A570RP450RE65TAW 570 260 10.24 160 6.3 2.4
175U3431 MCE101A415RP570RE65TAW 415 330 12.99 230 6.09 3
175U3433 MCE101A270RP960RE65TAW 270 560 22.05 460 18.11 4.6
175U3435 MCE101A200RP1K13E65TAW 200 660 25.98 560 22.05 5.4
175U3441 MCE101A18R0P570RE65TAW 18 330 12.99 230 9.06 3
175U3449 MCE101A110RP450RE65TAW 110 260 10.24 160 6.3 2.4
175U3451 MCE101A80R0P570RE65TAW 80 330 12.99 230 9.06 3
175U3455 MCE101A72R0P680RE65TAW 72 400 15.75 300 11.81 3.5
175U3457 MCE101A52R0P1K13E65TAW 52 660 25.98 560 22.05 5.4
175U3465 MCE101A72R0P1K13E65TAW 72 660 25.98 560 22.05 5.4
175U3478 MCE101A27R0P360RE65TAW 27 210 8.27 110 4.33 1.8
175U3482 MCE101A105RP790RE65TAW 105 460 18.11 360 14.17 3.9

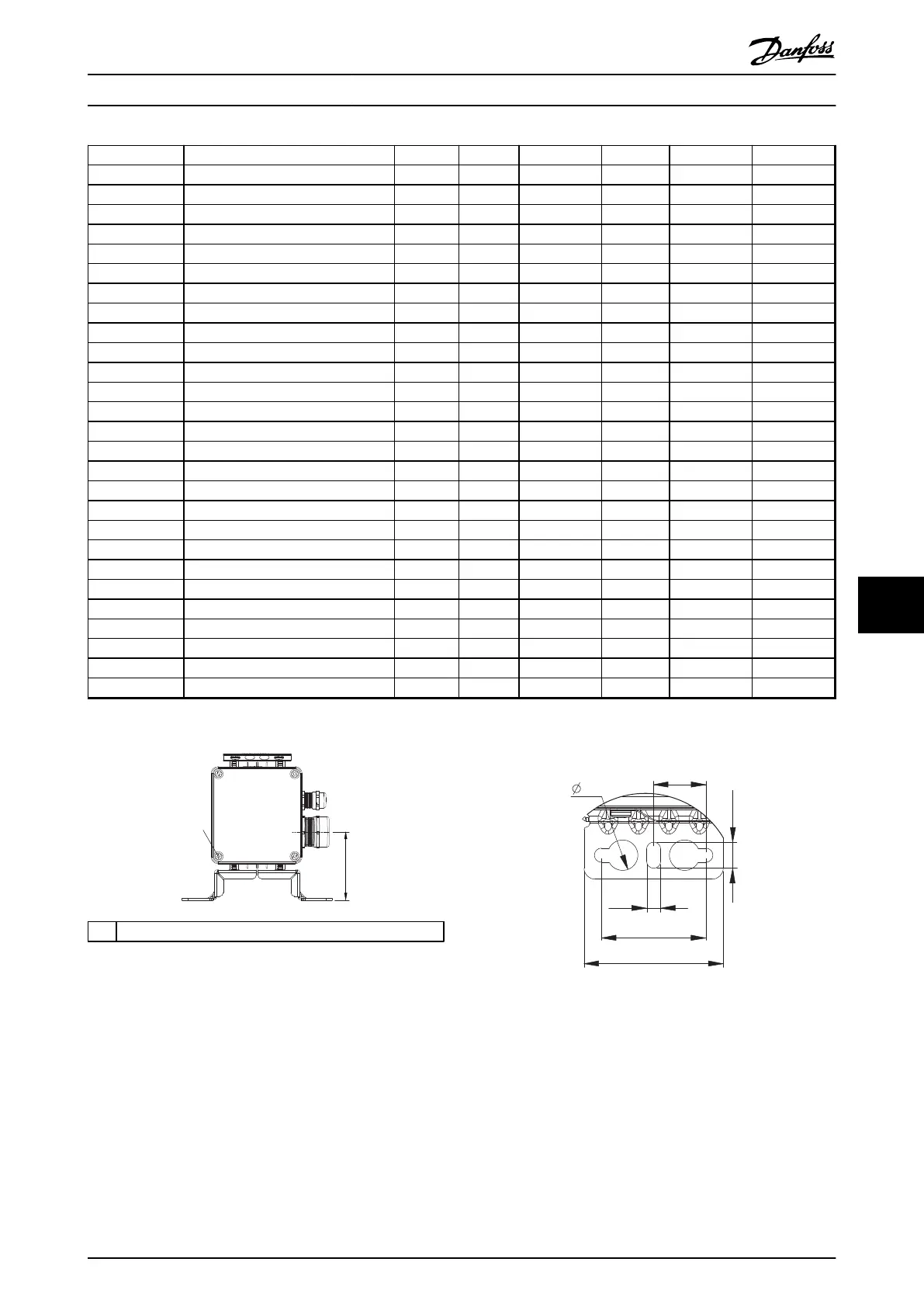

Table 9.12 Mechanical Dimensions
1
Torque 2–3 Nm (17.71–26.57 lb-in)
Illustration 9.30 IP65, End View, Connection Box
[2,52]
64
[1,89]
48
[0,26]
6,5
[0,55]
14
[0,94]
24
[0,47]
12
130BD218.10
Illustration 9.31 Mounting Hole
Specifications Design Guide
MG90O202 Danfoss A/S © Rev. 05/2014 All rights reserved. 99
9 9
