Danfoss code Typecode
[Ω] L ±2 mm L ±0.08
in
L1 ±2
mm
L1 ±0.04
in
Weight [kg] [AWG]
175U3305 MCE101A27R0P1k40E54CAW 27 400 15.75 300 11.81 8.2 10
175U3306 MCE101A18R0P2K20E54CAW 18 560 22.05 460 18.11 11 10
175U3307 MCE101A13R0P3K20E54CAW 13 760 29.92 660 25.98 14.6 10
175U3314 MCE101A110RP1k70E54CAW 110 460 18.11 360 14.17 9.2 10
175U3315 MCE101A80R0P2K20E54CAW 80 560 22.05 460 18.11 11 10
175U3316 MCE101A56R0P3K20E54CAW 56 760 29.92 660 25.98 14.6 10
175U3322 MCE101A145RP1K70E54CAW 145 460 18.11 360 14.17 9.2 14
175U3323 MCE101A100RP2K20E54CAW 100 560 22.05 460 18.11 11 10
175U3324 MCE101A72R0P3K20E54CAW 72 760 29.92 660 25.98 14.6 10
175U3330 MCE101A5R70P1K40E54CAW 5.7 400 15.75 300 11.81 8.2 10
175U3331 MCE101A5R70P1K70E54CAW 5.7 460 18.11 360 14.17 9.2 10
175U3332 MCE101A3R50P2K20E54CAW 3.5 560 22.05 460 18.11 11 10
175U3333 MCE101A3R50P2K80E54CAW 3.5 660 25.98 560 22.05 12.8 10
175U3334 MCE101A2R80P3K20E54CAW 2.8 760 29.92 660 25.98 14.6 10
175U3339 MCE101A28R0P1K40E54CAW 28 400 15.75 300 11.81 8.2 10
175U3340 MCE101A22R0P1K70E54CAW 22 460 18.11 360 14.17 9.2 10
175U3341 MCE101A14R0P2K80E54CAW 14 660 25.98 560 22.05 12.8 10
175U3347 MCE101A38R0P1K40E54CAW 38 400 15.75 300 11.81 8.2 10
175U3348 MCE101A31R0P1K70E54CAW 31 460 18.11 360 14.17 9.2 10
175U3349 MCE101A27R0P2K20E54CAW 27 560 22.05 460 18.11 11 10
175U3350 MCE101A19R0P2K80E54CAW 19 660 25.98 560 22.05 12.8 10
175U3352 MCE101A52R0P1K40E54CAW 52 400 15.75 300 11.81 8.2 10
175U3353 MCE101A42R0P1K70E54CAW 42 460 18.11 360 14.17 9.2 10
175U3354 MCE101A31R0P2K20E54CAW 31 560 22.05 460 18.11 11 10
175U3355 MCE101A27R0P2K80E54CAW 27 660 25.98 560 22.05 12.8 10
175U3356 MCE101A22R0P3K20E54CAW 22 760 29.92 660 25.98 14.6 10
175U3357 MCE101A19R0P2k20E54CAW 19 560 22.05 460 18.11 11 10
175U3358 MCE101A14R0P3k20E54CAW 14 760 29.92 660 25.98 14.6 10
175U3359 MCE101A12R0P3K20E54CAW 12 760 29.92 660 25.98 14.6 10

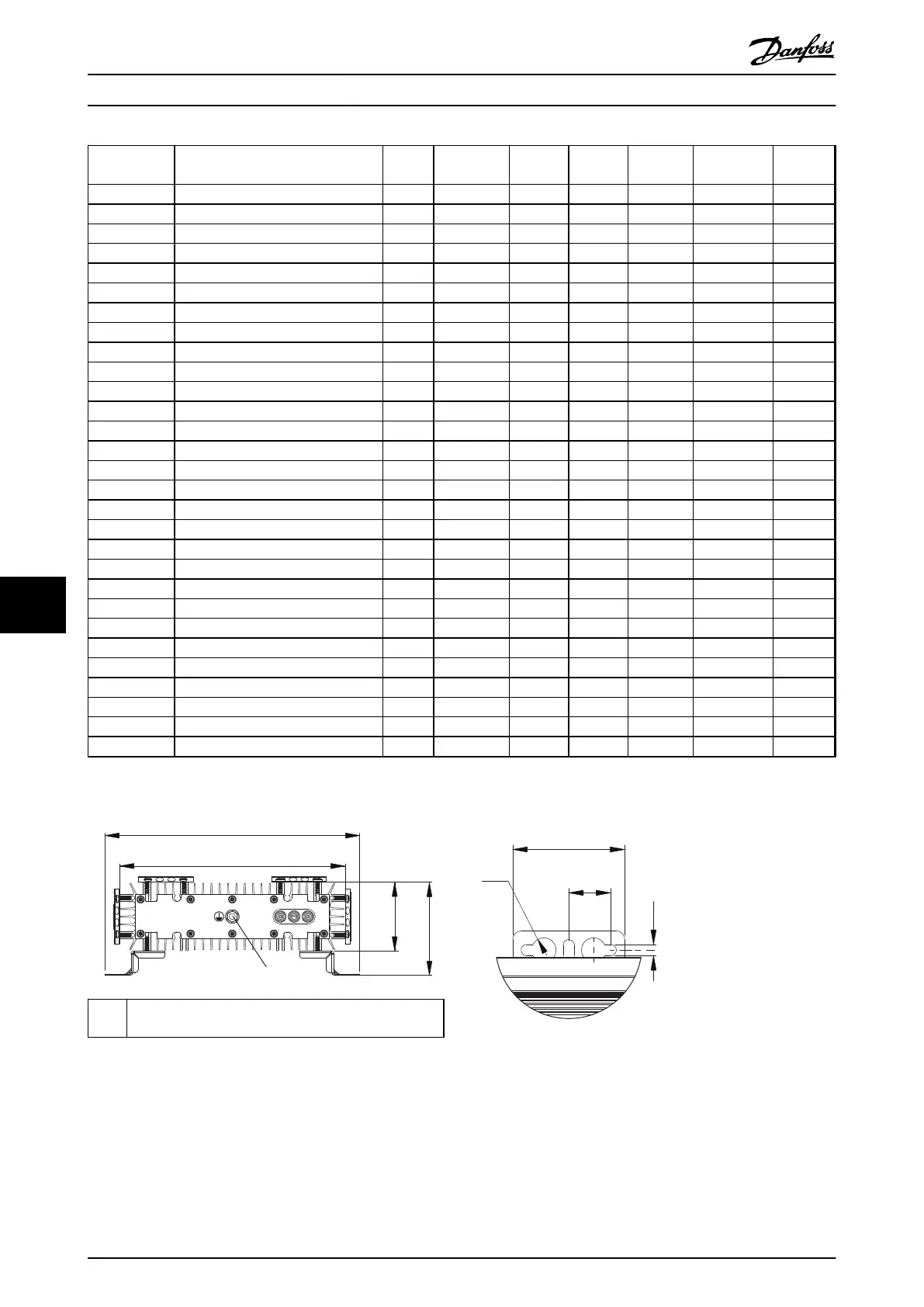

Table 9.7 Mechanical Dimensions
130BD524.10
[10.24]
260
[2.76]
70
[9.06]
230
[3.74]
95
1
1
PE: M6
Torque 4.2-4.8 Nm (37.17–42.48 lb-in)
Illustration 9.8 IP54, End View, Cable End
[2.52]
64
[0.26]
6.5
[0.94]
24
[0.28]
R7
130BD526.10
Illustration 9.9 Mounting Hole
Specifications Design Guide
88 Danfoss A/S © Rev. 05/2014 All rights reserved. MG90O202
