Danfoss VLT Brake Resistor MCE 101 User Manual

Danfoss P/N Typecode
[Ω]
L ±2
mm
L ±0.08 in
L1 ±2
mm
L1 ±0.04 in
Weight [kg]
175U3107 MCE101A145RP2K20E65TAW 145 560 22.05 460 18.11 11
175U3123 MCE101A200RP1K70E65TAW 200 460 18.11 360 14.17 9.2
175U3127 MCE101A145RP1K70E65TAW 145 460 18.11 360 14.17 9.2
175U3131 MCE101A110RP2K20E65TAW 110 560 22.05 460 18.11 11
175U3133 MCE101A105RP3K20E65TAW 105 760 29.92 660 25.98 14.6
175U3139 MCE101A80R0P2K20E65TAW 80 560 22.05 460 18.11 11
175U3141 MCE101A72R0P2K80E65TAW 72 660 25.98 560 22.05 12.8
175U3147 MCE101A56R0P2K80E65TAW 56 660 25.98 560 22.05 12.8
175U3153 MCE101A48R0P1K40E65TAW 48 400 15.75 300 11.81 8.2
175U3161 MCE101A35R0P1K70E65TAW 35 460 18.11 360 14.17 9.2
175U3169 MCE101A27R0P2K20E65TAW 27 560 22.05 460 18.11 11
175U3173 MCE101A18R0P3K20E65TAW 18 760 29.92 660 25.98 14.6
175U3409 MCE101A27R0P1K40E65TAW 27 400 15.75 300 11.81 8.2
175U3411 MCE101A18R0P2K20E65TAW 18 560 22.05 460 18.11 11
175U3413 MCE101A13R0P3K20E65TAW 13 760 29.92 660 25.98 14.6
175U3423 MCE101A110RP1K70E65TAW 110 460 18.11 360 14.17 9.2
175U3427 MCE101A56R0P3K20E65TAW 56 760 29.92 660 25.98 14.6
175U3437 MCE101A100RP2K20E65TAW 100 560 22.05 460 18.11 11
175U3439 MCE101A72R0P3K20E65TAW 72 760 29.92 660 25.98 14.6
175U3445 MCE101A5R70P1K40E65TAW 5,7 400 15.75 300 11.81 8.2
175U3447 MCE101A3R50P2K80E65TAW 3,5 660 25.98 560 22.05 12.8
175U3459 MCE101A38R0P1K40E65TAW 38 400 15.75 300 11.81 8.2
175U3461 MCE101A19R0P2K80E65TAW 19 660 25.98 560 22.05 12.8
175U3463 MCE101A14R0P3K20E54TAW 14 760 29.92 660 25.98 14.6
175U3467 MCE101A52R0P1K40E65TAW 52 400 15.75 300 11.81 8.2
175U3469 MCE101A31R0P2K20E65TAW 31 560 22.05 460 18.11 11
175U3471 MCE101A27R0P2K80E65TAW 27 660 25.98 560 22.05 12.8
175U3480 MCE101A22R0P3K20E65TAW 22 760 29.92 660 25.98 14.6
175U3484 MCE101A5R70P1K70E65TAW 5,7 460 18.11 360 14.17 9.2

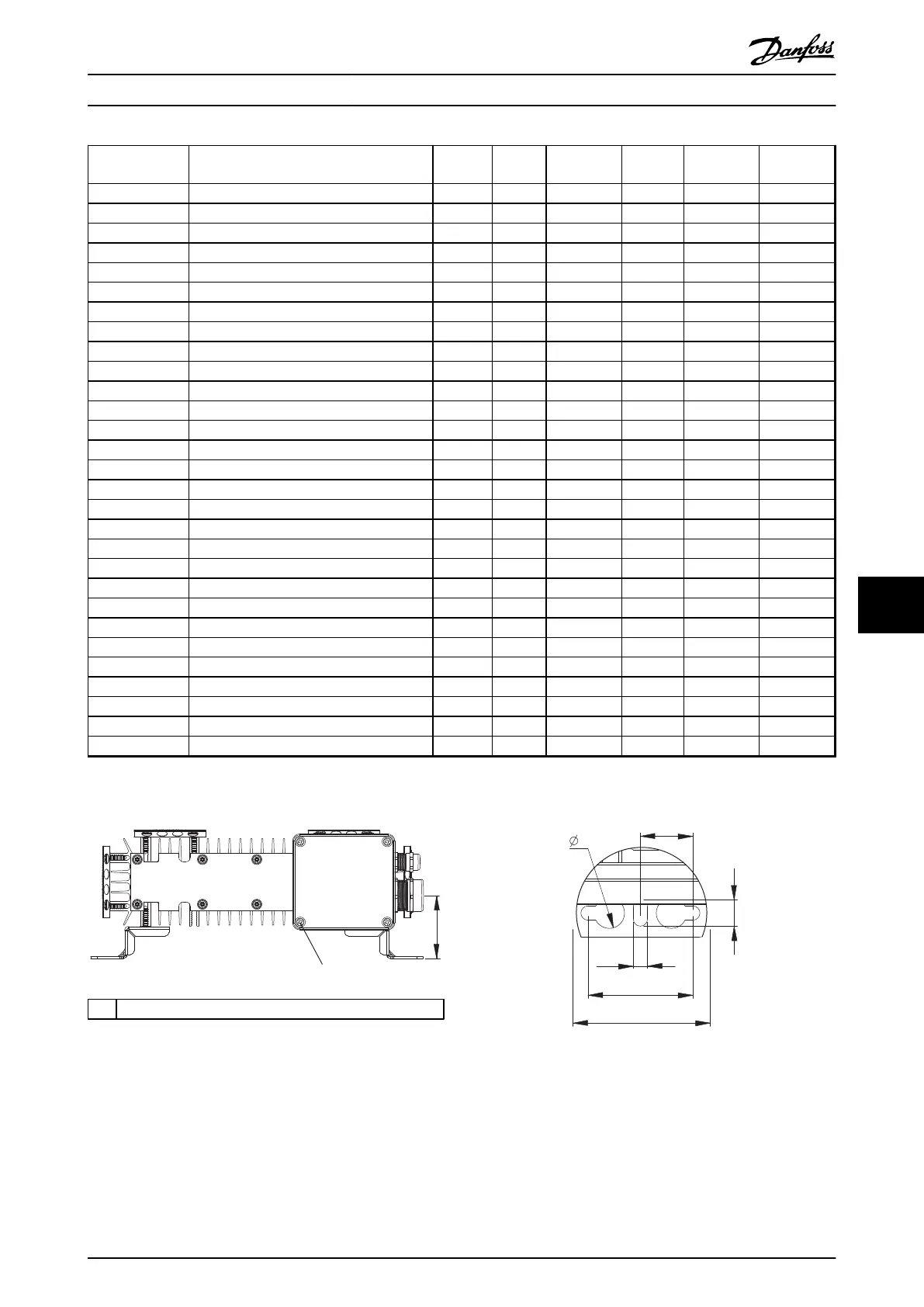

Table 9.8 Mechanical Dimensions
130BD231.10
[1.95] 49
1
1
Torque 2–3 Nm (17.71–26.57 lb-in)
Illustration 9.13 IP65, End View, Connection Box
[0.55]
14
[0.26]
6.5
[1.89]
48
[2.52]
64
[0.47] 12
[0.94]
24
130BD235.10
Illustration 9.14 Mounting Hole
Specifications Design Guide
MG90O202 Danfoss A/S © Rev. 05/2014 All rights reserved. 91
9 9
