Danfoss VLT CDS 803 Operating Guide

NOTICE
With IP21/NEMA Type1 option kit mounted, a distance of 50 mm (2 in) between the units is required.

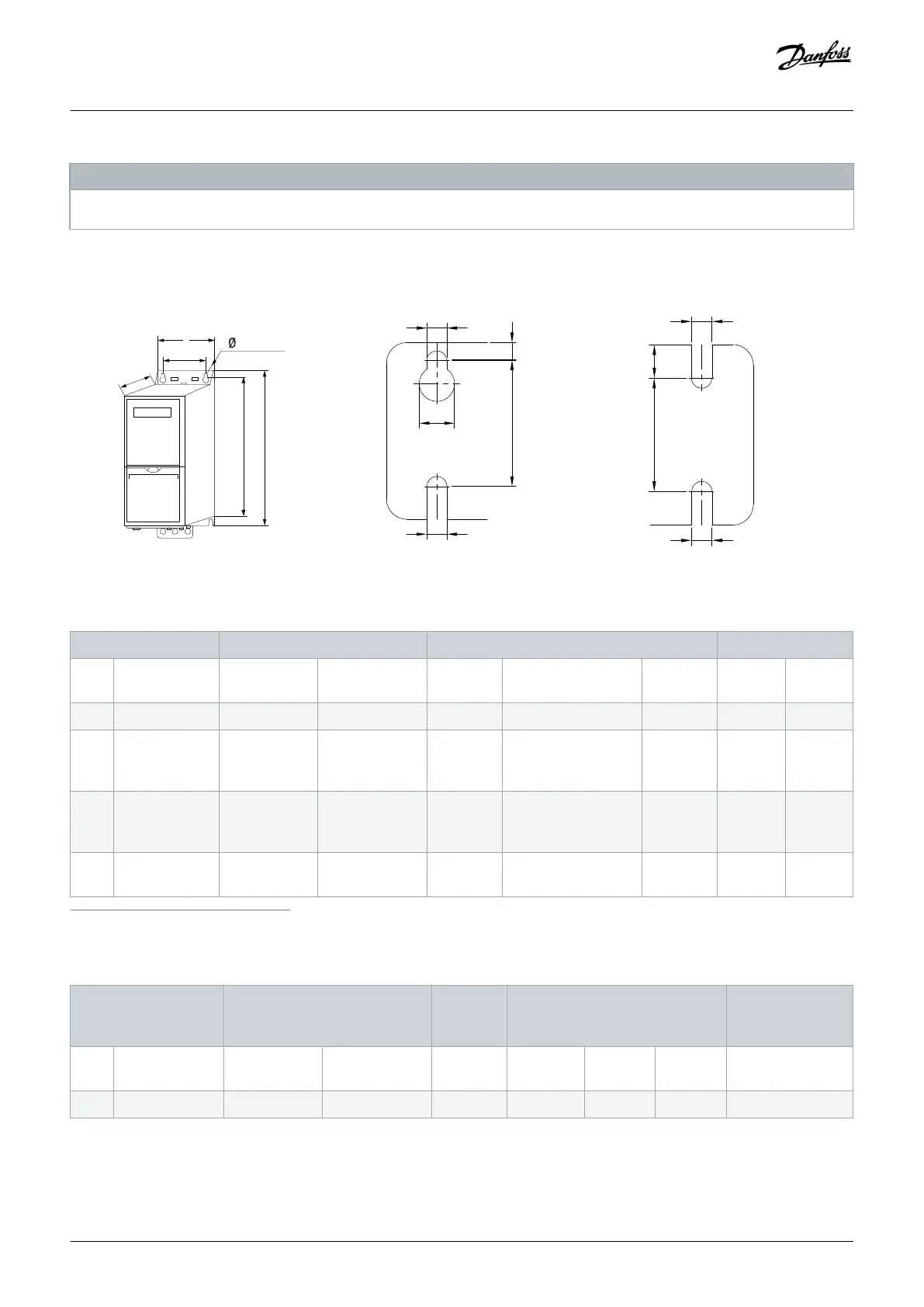

3.1.3 Drive Dimensions
e
f
a
e
e
f
a
d
e
A
a
b
B
C
D
e30bf984.10
Illustration 1: Dimensions
Table 7: Dimensions, Enclosure Sizes H3–H6
Enclosure Power [kW (hp)] Height [mm (in)] Width [mm (in)]
Size IP protection
rating
3x200–240 V 3x380–480 V A
A
(1)
a B b
H3 IP20 – 6.0–7.5 (8.0–10) 255 (10.0) 329 (13.0) 240 (9.4) 100 (3.9) 74 (2.9)
H4 IP20 6.0–7.5
(8.0–10)
10 (15) 296 (11.7) 359 (14.1) 275 (10.8) 135 (5.3) 105 (4.1)
H5 IP20 10 (15) 18.5–22
(25–30)
334 (13.1) 402 (15.8) 314 (12.4) 150 (5.9) 120 (4.7)
H6 IP20 – 30 (40) 518 (20.4) 595 (23.4)/635 (25),
45 kW
495 (19.5) 239 (9.4) 200 (7.9)
1
Including decoupling plate.
Table 8: Dimensions, Enclosure Sizes H3–H6
Enclosure Power [kW (hp)] Depth
[mm (in)]
Mounting hole [mm (in)] Maximum weight
Size IP protection
rating
3x200–240 V 3x380–480 V C d e f kg (lb)
H3 IP20 – 6.0–7.5 (8.0–10) 206 (8.1) 11 (0.43) 5.5 (0.22) 8.1 (0.32) 4.5 (9.9)
Installation
Operating Guide | VLT® Compressor Drive CDS 803
AQ321748767627en-000101 / 130R0570| 11
Danfoss A/S © 2019.12
