Table 10: Connection of Compressor to Terminals
Drive terminals Compressor
U T1
V T2
W T3

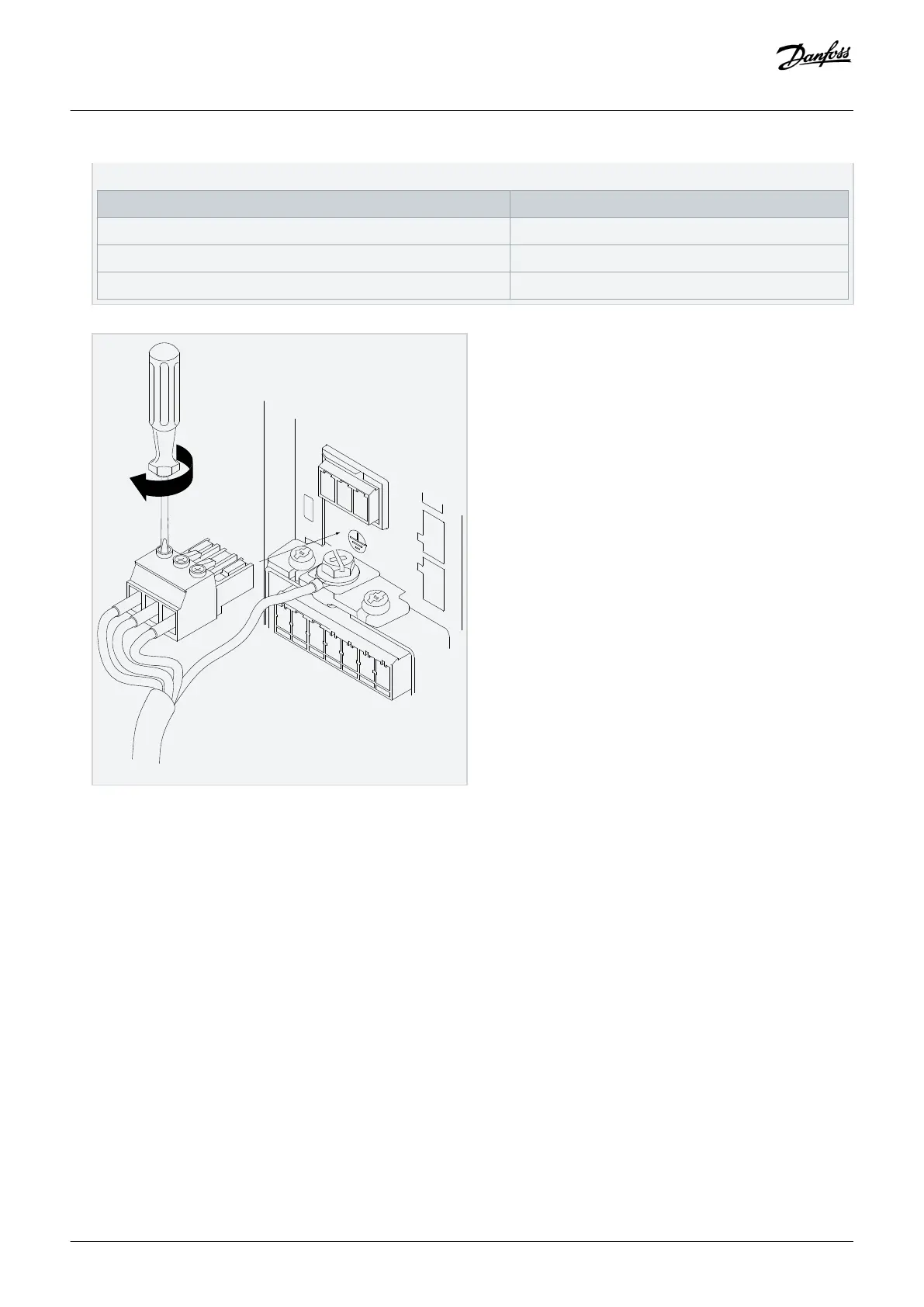

4. Connect the mains supply to terminals L1, L2, and L3, and then tighten the screws according to the torques.
e30ba263.10
95
M
A
INS
+DC
BR-
BR+
U
V
W
91
92
93
L1
L2
L3
RELA
Y 1 RELA
Y 2
5. Tighten support bracket on mains wires.
