Danfoss VLT FC 300

Terminal locations - Inverter Frame size F12 and F13
287.4 [11.32]
0.0 [0.00]
339.4 [13.36]
253.1 [9.96]
0.0 [0.00]
287.4 [11.32]
0.0 [0.00]
339.4 [13.36]
465.6 [18.33]
465.6 [18.33]
308.3 [12.14]
180.3 [7.10]
210.1 [8.27]
0.0 [0.00]
66.4 [2.61]
181.4 [7.14]
296.4 [11.67] 431.0 [16.97] 546.0 [21.50] 661.0 [26.03] 795.7 [31.33] 910.7 [35.85]
1025.7 [40.38]
246.1 [9.69]
294.1 [11.58] 330.1 [13.00]
574.7 [22.63] 610.7 [24.04] 658.7 [25.93] 694.7 [27.35] 939.4 [36.98] 975.4 [38.40]
1023.4 [40.29]
1059.4 [41.71]
144.3 [5.68] 219.3 [8.63]
512.3 [20.17] 587.3 [23.12] 880.3 [34.66] 955.3 [37.61]
1
2
3
2
3
130BA850.10
FASTENER TORQUE: MIO 19 Nm (14 FT -LB)
U/T1 96 V/T2 97 W/T3 98
FASTENER TORQUE: MIO 19 Nm (14 FT -LB)
U/T1 96 V/T2 97 W/T3 98
FASTENER TORQUE: MIO 19 Nm (14 FT -LB)
U/T1 96 V/T2 97 W/T3 98

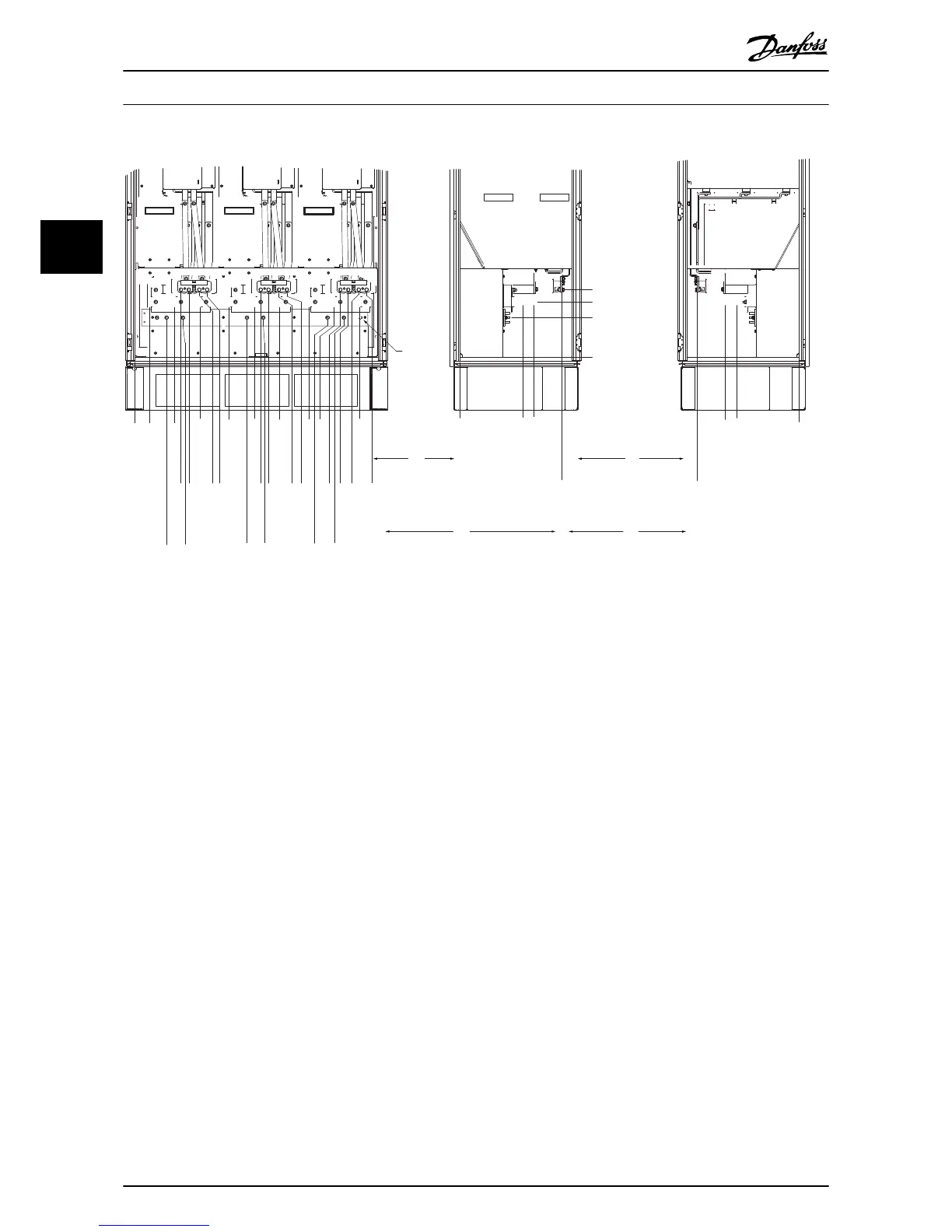

Illustration 3.13 Terminal locations - Inverter Cabinet (front, left and right side view). The gland plate is 42 mm below .0 level.
1) Earth ground bar
