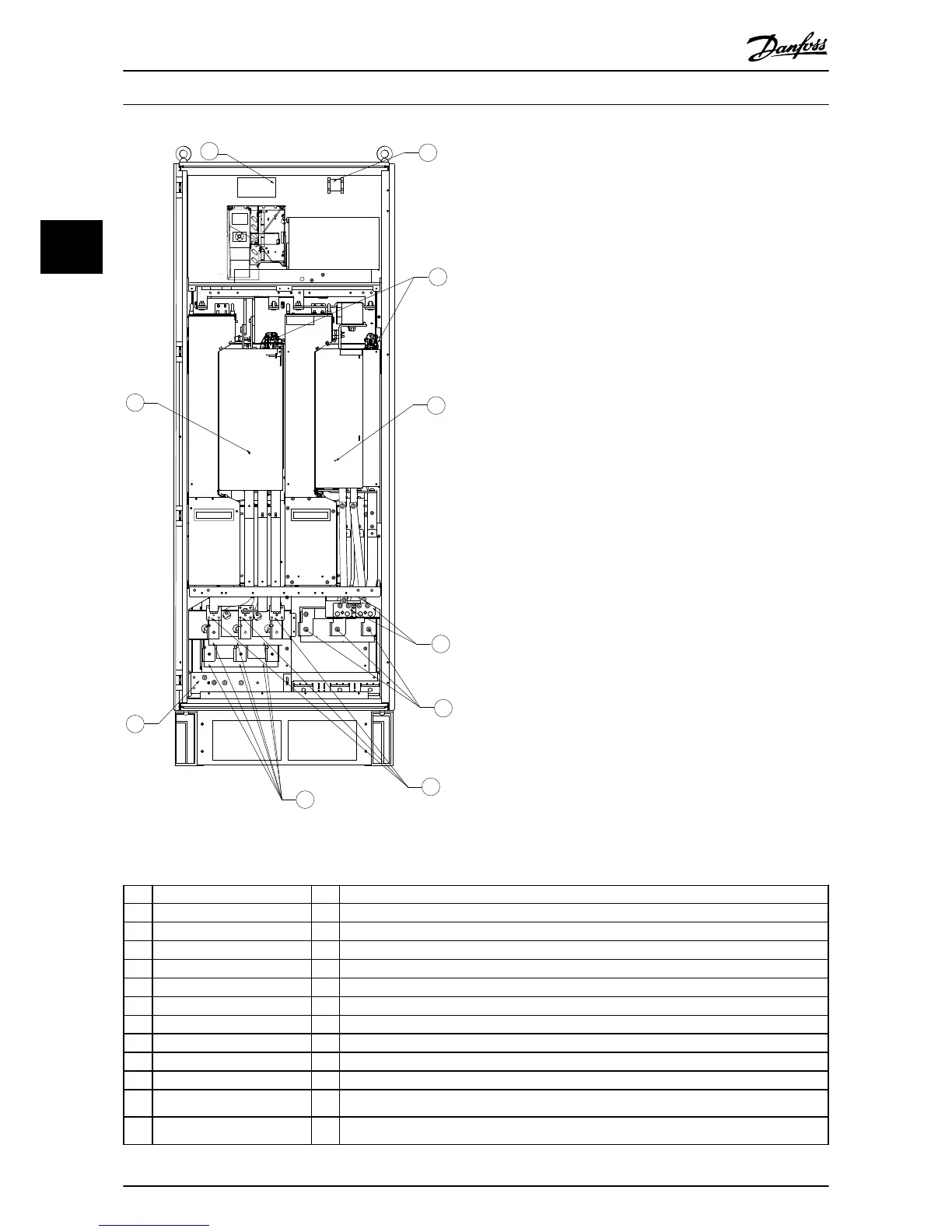

Illustration 3.23 Rectifier and Inverter Cabinet, frame size F8 and
F9
1)
12-pulse rectifier module 5) Motor connection
2) Ground / Earth PE Terminals U V W
3) Mains / Fuses T1 T2 T3
R1 S1 T1 96 97 98
L1-1 L2-1 L3-1 6) Brake Terminals
91-1 92-1 93-1 -R +R
4) Mains / Fuses 81 82
R2 S2 T2 7) Inverter Module
L2-1 L2-2 L3-2 8) SCR Enable / Disable
91-2 92-2 93-2 9) Relay 1 Relay 2
01 02 03 04 05 06
10) Auxillary Fan
104 106
