Danfoss VLT HVAC Drive FC 102 - Page 151

2
8
9
10
6
5
4
3
11
1
130BF862.10
7
1 Screw (T30) 7 Nut (10 mm)
2 Inrush card 8 Screw (T30)
3 DC(+) busbar 9 Screw (T30)
4 Inrush support bracket 10 DC(-) busbar
5 Threaded stando (11 mm) 11 DC(-) busbar (DC coil to capacitor bank)
6 DC(-) busbar (DC coil to capacitor bank) – –

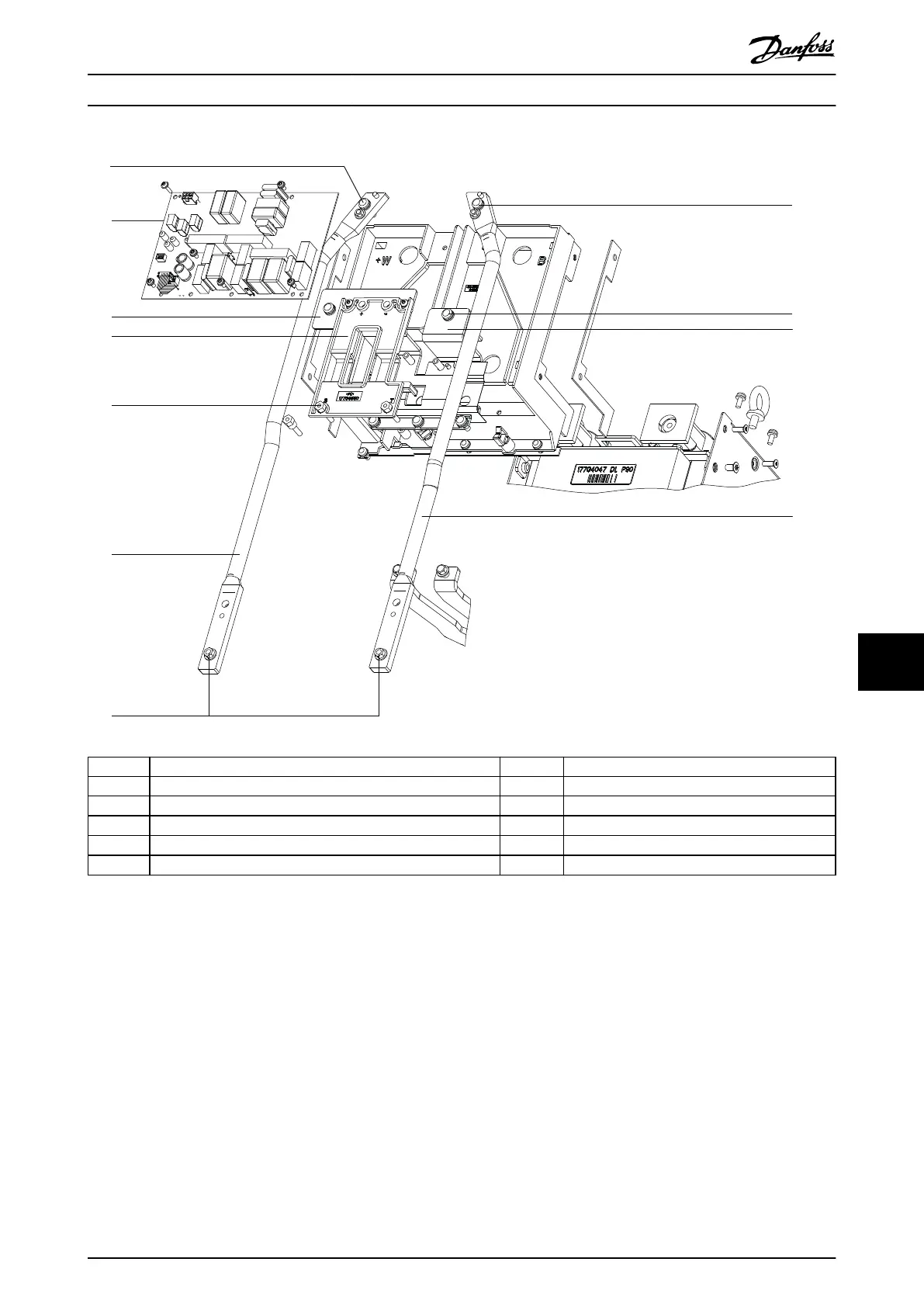

Illustration 10.9 DC Bus Rails and Inrush Card
D1h/D3h/D5h/D6h/J8 Drive Di... Service Guide
MG94A502 Danfoss A/S © 02/2019 All rights reserved. 149
10 10
