130BA834.11

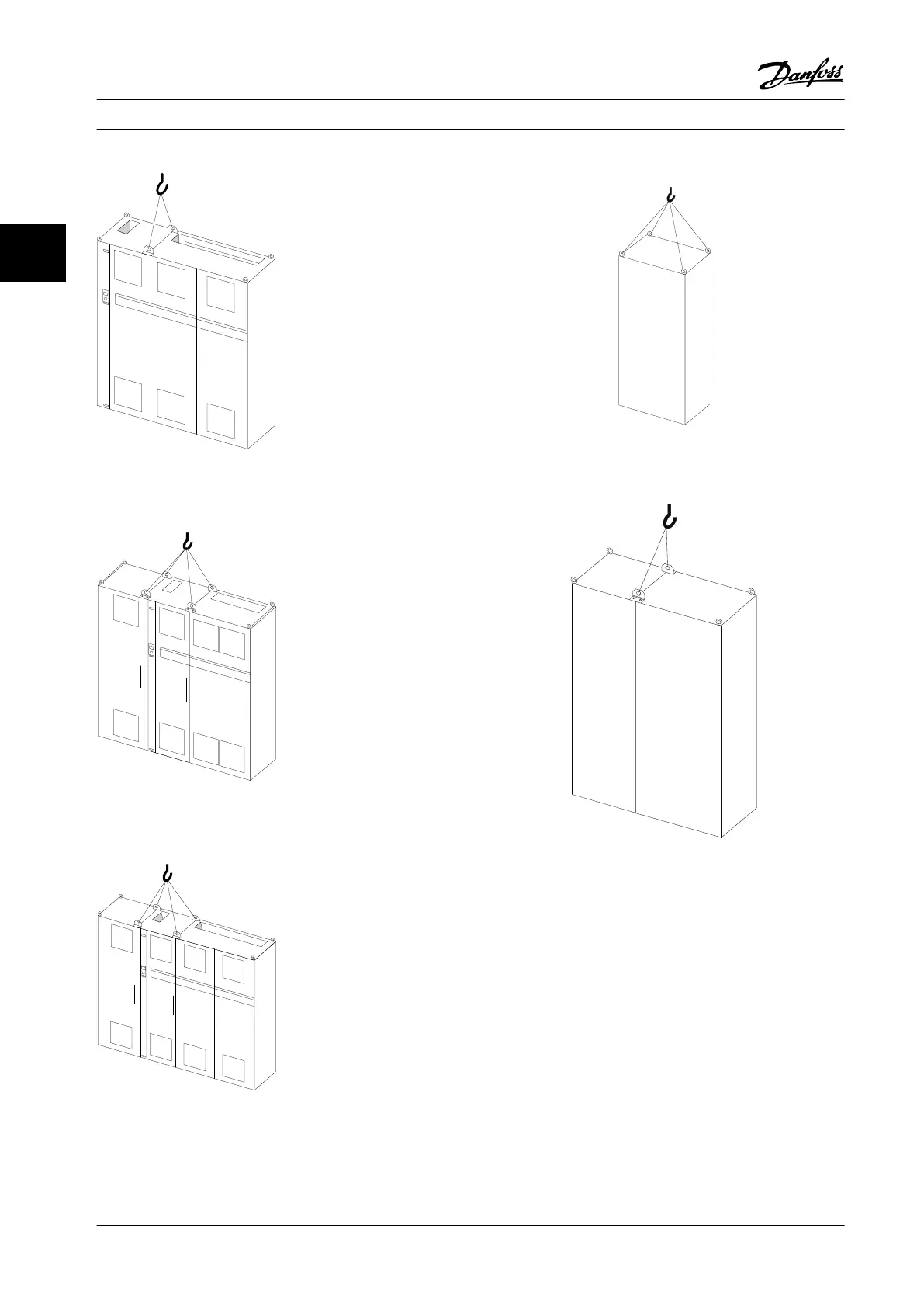

Figure 3.4 Recommended Lifting Method, Enclosure Size F2
(460 V, 1000 to 1200 hp, 575/690 V, 1250 to 1350 hp)
130BA833.11
Figure 3.5 Recommended Lifting Method, Enclosure Size F3
(460 V, 600 to 900 hp, 575/690 V, 900 to 1150 hp)
130BA835.11
Figure 3.6 Recommended Lifting Method, Enclosure Size F4
(460 V, 1000 to 1200 hp, 575/690 V, 1250 to 1350 hp)
130BB753.11
Figure 3.7 Recommended Lifting Method, Enclosure Type F8
130BB688.11
Figure 3.8 Recommended Lifting Method, Enclosure Size
F9/F10
