MODEL 700 CONTROL VALVE
1.6.4 Parts list for the Series 700 Control Valves

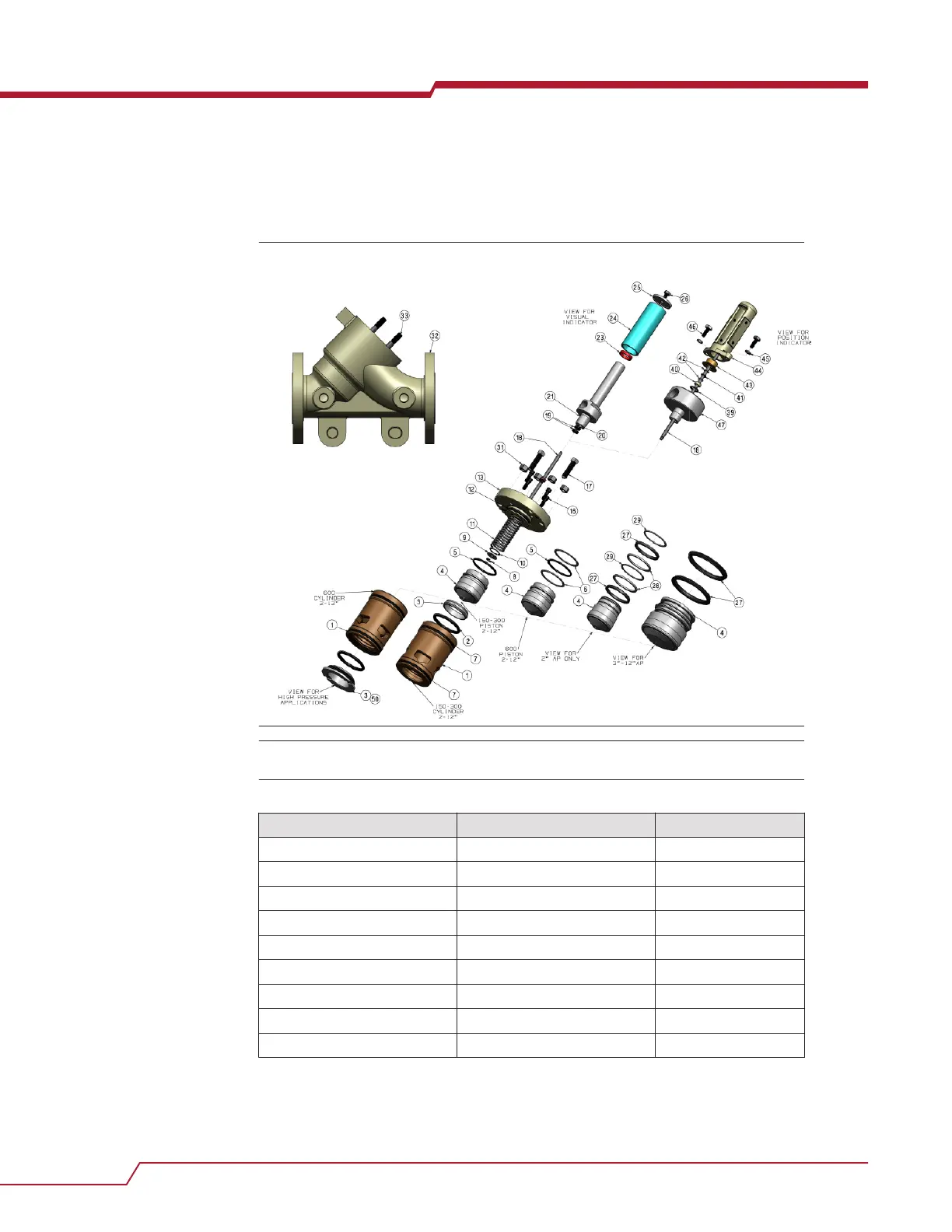

Figure 1-4: Part identification for an NPS 2-12 inch Control Valve
NOTICE
Item numbers are not meant to be consecutively numbered.
Table 1-1: Part description for Model 700 Control Valve NPS 2 - 12
Item number Description Quantity
1 Cylinder 1
2 O-ring 1
3 Seat ring 1
4 Piston 1
5 O-ring 1
6 Backup ring 2
7 O-ring 2
8 Retaining ring 1
9 Washer 1
