ENGLISH
10
IMPORTANT: It is advised to read each step entirely before starting assembly on instructions. Do not tighten screws
completely until all screws for that step have been installed. Hardware combination involving a locking washer and
washer should be installed with the locking washer closest to the head of the screw.

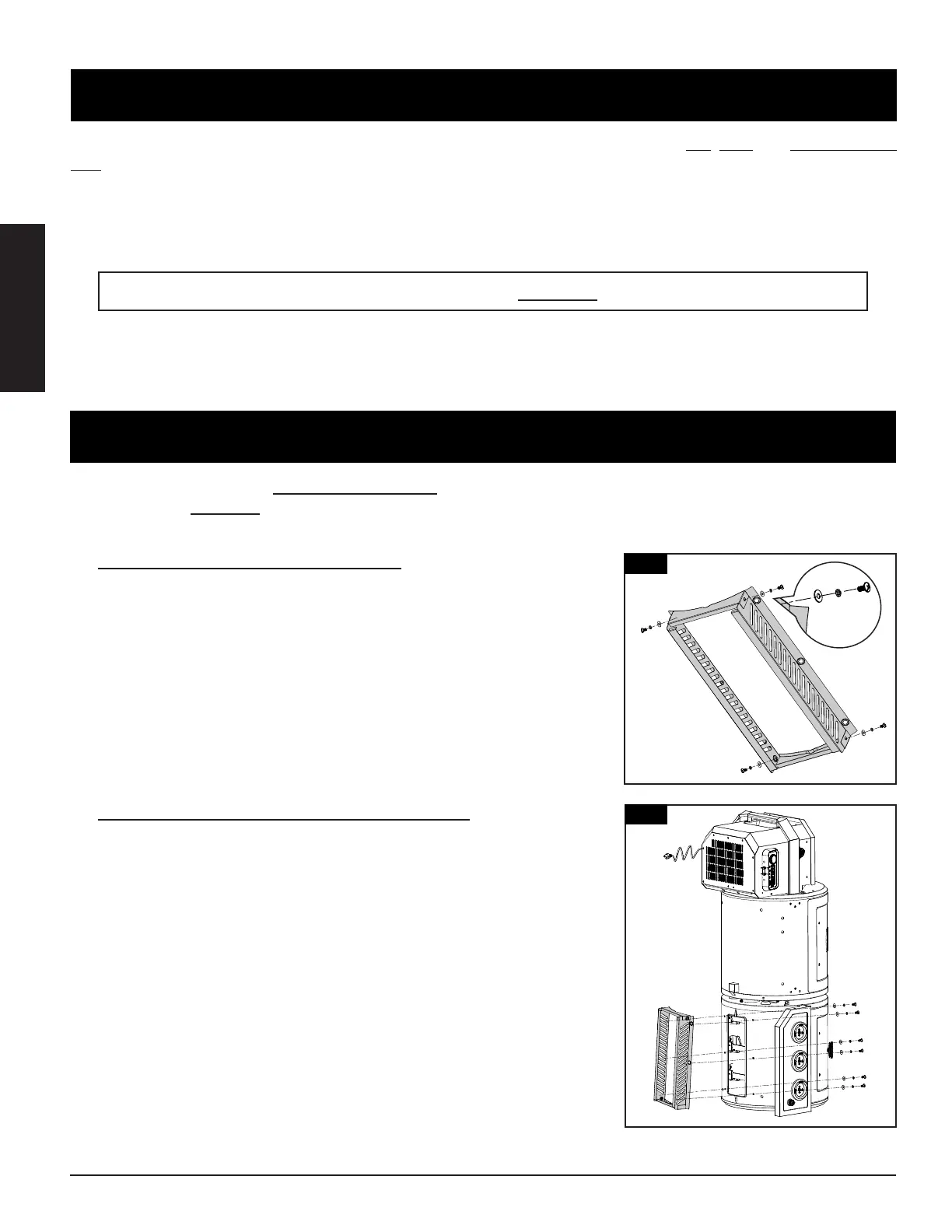

1.
Parts Required:
2 x Grease Tray Support A (#23)
2 x Grease Tray Support B (#24)
4 x Screw (#A)
4 x Locking Washer (#C)
4 x Washer (#B)
Installation:
• Mount Grease Tray Support A to Grease Tray Support B using four
screws, locking washers and washers.
2.
Parts Required:
1 x Main Barrel / Hopper Assembly (#9)
6 x Screw (#A)
6 x Locking Washer (#C)
6 x Washer (#B)
Installation:
• Place a piece of cardboard on the floor to prevent scratching the unit.
Lay the Main Barrel on its side, hopper end pointed upward, on the
cardboard.
• Mount Grease Tray Supports to the floor end of the Main Barrel using
six screws, locking washers and washers.
Parts are located throughout the shipping carton, including underneath the grill. Inspect the grill, parts, and hardware blister
pack after removing from the protective shipping carton. Discard all packaging materials from inside and outside of the grill
before assembly, then review and inspect all parts by referencing the parts list. If any part is missing or damaged, do not attempt
to assemble. Shipping damage is not covered under warranty. Contact your dealer or Pit Boss Customer Service for parts: Monday
through Sunday, 4am - 8pm PST (EN/FR/ES).
service@pitboss-grills.com | Toll-Free: 1-877-303-3134 | Toll-Free Fax: 1-877-303-3135
IMPORTANT: To ease installation and avoid injury, use two people when assembling this appliance.
Tools required for assembly: screwdriver, wrench and level.
Tools not included.
2
1
24
9
24
23
23
