ENGLISH
41
K
K
R
W
G
W
P
R
W
Y
R
Y
  

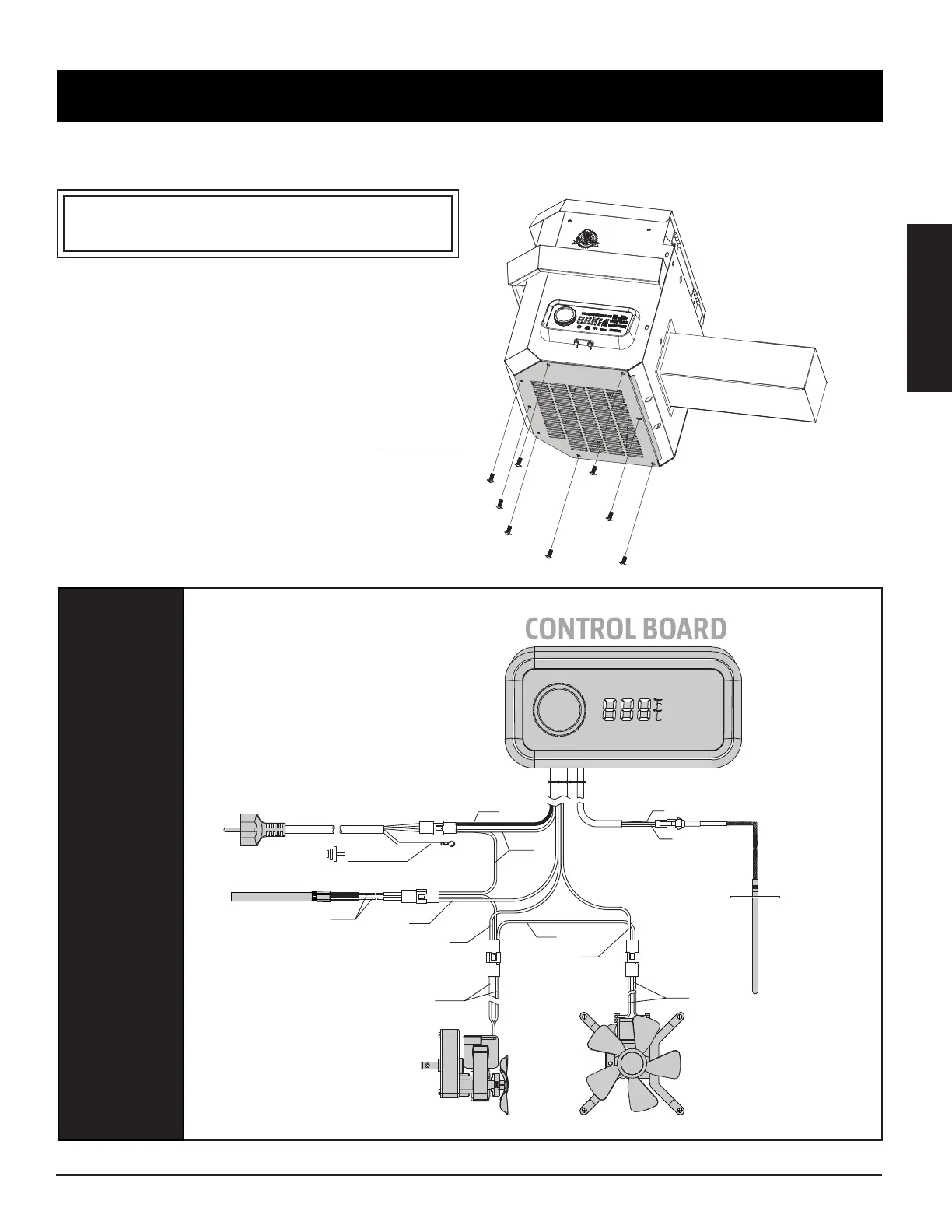

The Digital Control Board system is an intricate and valuable piece of technology. For protection from power surges and electrical
shorts, consult the wire diagram below to ensure your power source is sufficient for the operation of the unit.
PB – ELECTRIC REQUIREMENTS
110-120V, 60HZ, 250W, 3-PRONG GROUNDED PLUG
: Electrical components, passed by product safety testing and certification services, comply
with a testing tolerance of ± 5-10 percent.
LOCATE AND REMOVE
THE EIGHT SCREWS
OF ACCESS PANEL ON
UNDERSIDE OF UNIT
INDEX
K : BLACK
W : WHITE
R : RED
Y : YELLOW
P : PURPLE
O : ORANGE
G : GREEN
IGNITOR ASSEMBLY /
HD CARTRIDGE HEATER
200W, 120V, 2.6 AMP
0.375” X 5.000” / 9.5 X 127 MM
DRAFT FAN
110-120V, 50/60HZ,
0.1 AMP, 1 PHASE
GROUNDED
POWER CORD
VW-1, 105°C/221°F,
18-3 STANDARD CSA
AUGER MOTOR
& FEED SYSTEM
120V, 50/60HZ,
0.22 AMP, 2 RPM MOTOR
GROUND
GRILL PROBE
CONTROL BOARD
