Plumbing
Meter and valve are installed as illustrated.
Meter
Kamstrup ultrasonic water meter to be installed as per manufacturer’s instructions.
Cut-off Valve
Electrically actuated ball or butterfly valve, 24Vac supplied from KMP-V. The valve can
be installed with any orientation with the actuator pointing upwards or sideways, not
below the horizontal plane.

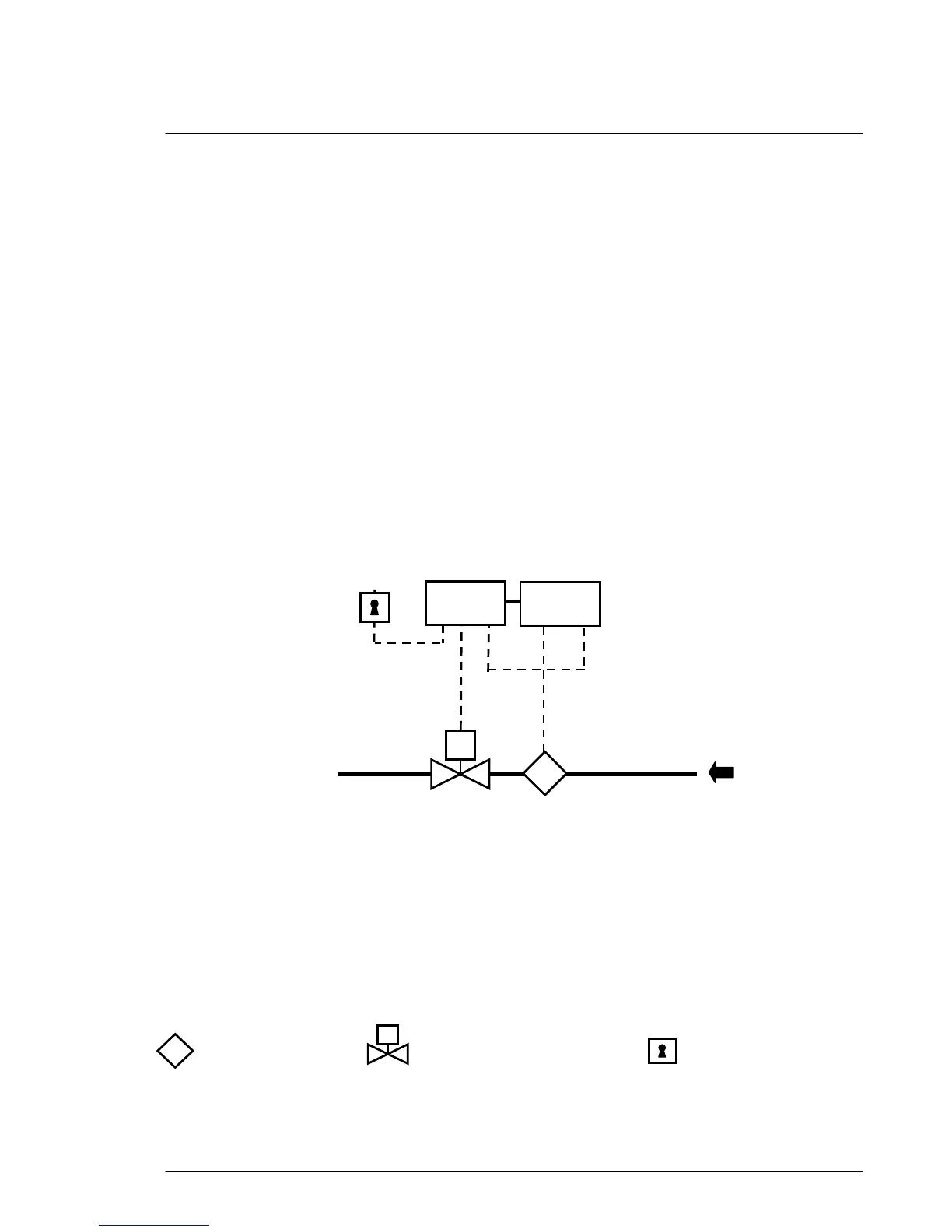

Supply Water Installation System KMP-V
Legend:
Flow meter
Cut-off Valvel
Key Switch 230Vac
To Next Page
