How to Mount the DFC 350 or DFC 450
Procedure
Follow these steps to mount the DFC 350 or DFC 450:
Step
Action
1

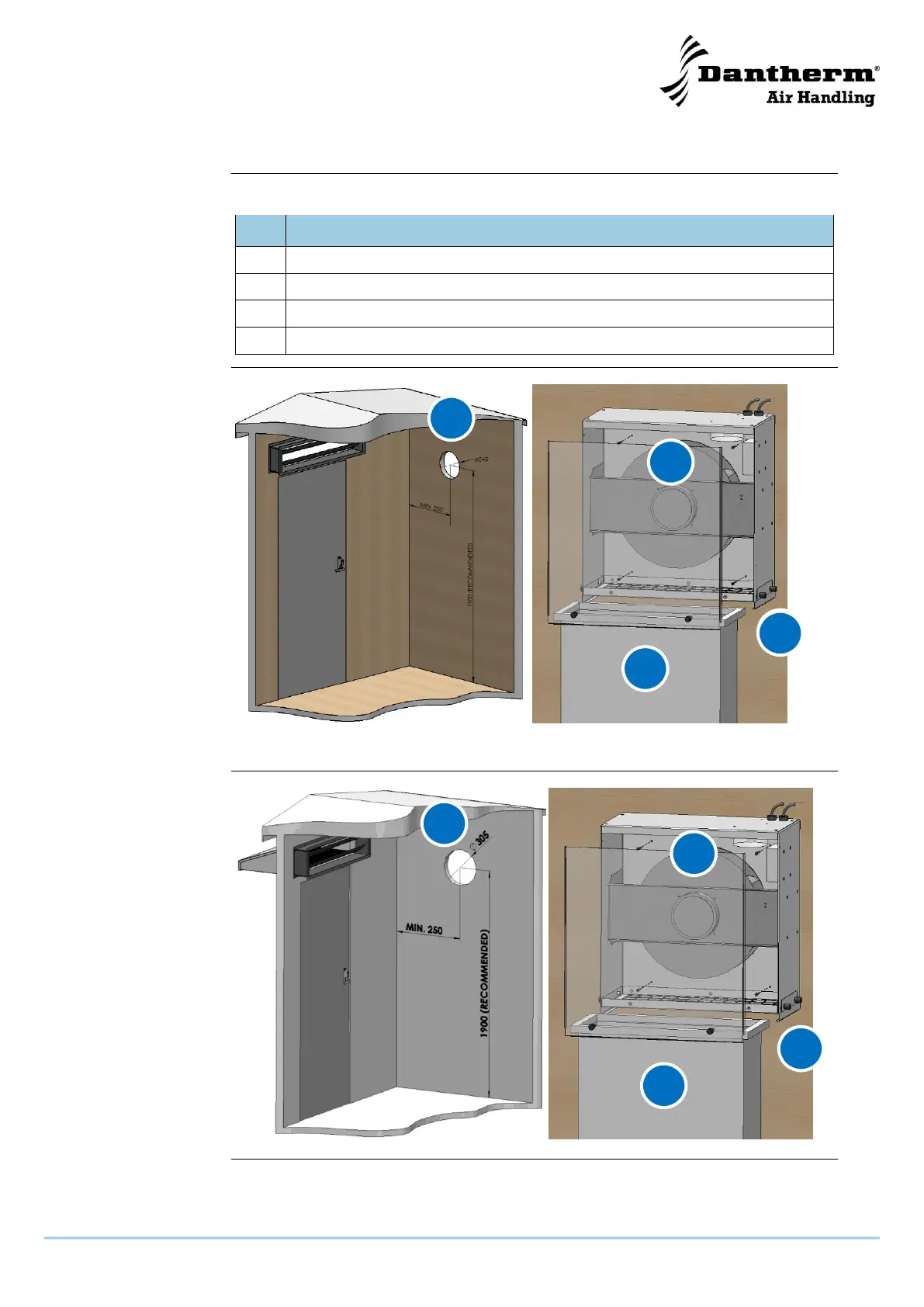

Make a Ø245mm hole in the shelter wall about 1900 mm above the floor.
2
Demount the front cover of the unit by removing the 3 fluted grip knobs.
3
Hold the unit in position and fasten it to the wall with minimum 4 screws.
4
Slide the filter into place and remount the front cover.
