Fittings and installations
Introduction
This section guides you through fittings and installation of HCH 5 and HCH 8.
Important
Only trained and certified installers are allowed to install the unit!

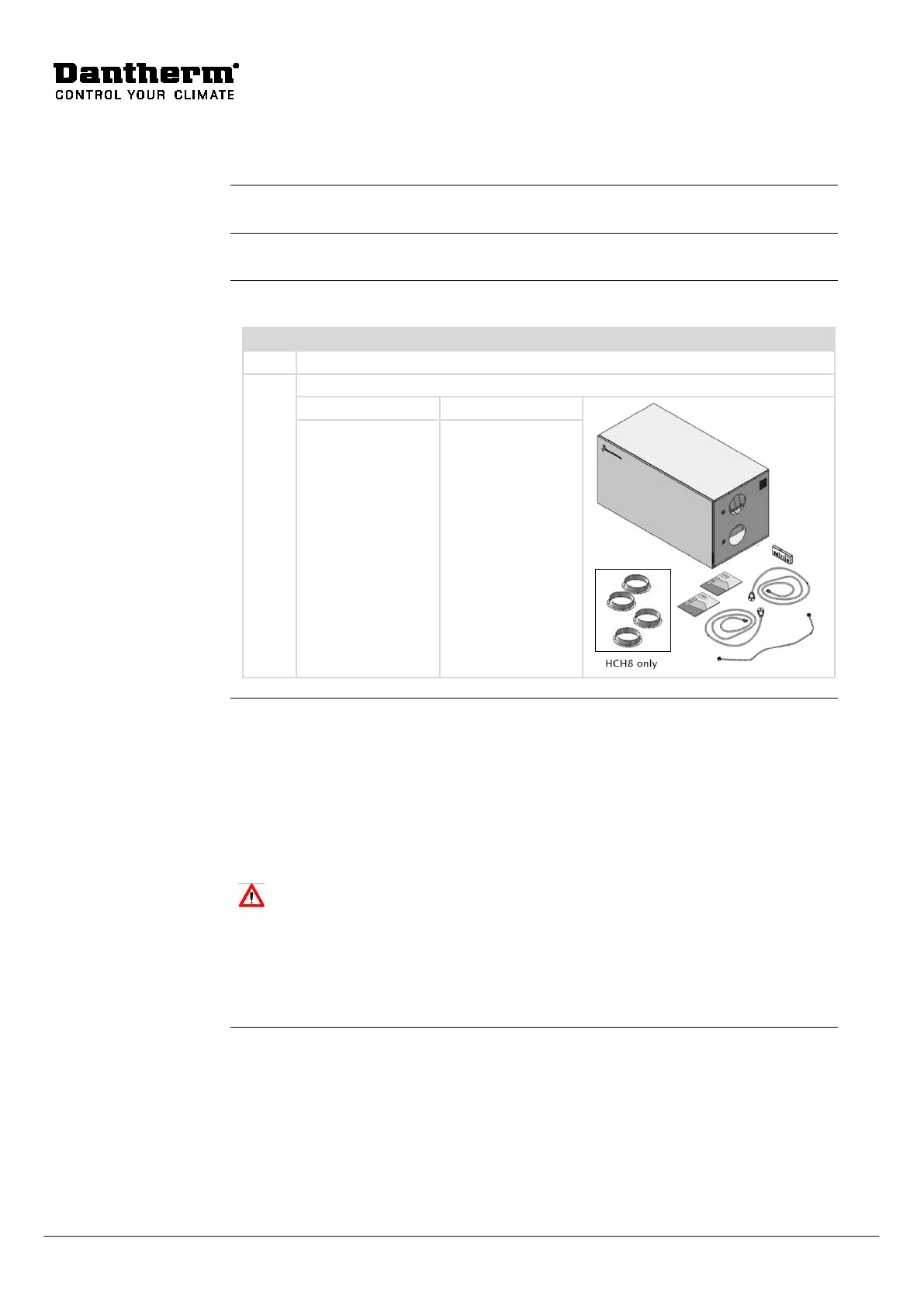

Content of the box
Follow this procedure to check the content of the box:
Step
Action
1
Unpack the unit carefully.
2
Check the content before mounting the unit.
HCH 5
HCH 8
• Power cable set
• User’s guide
and service
manual
• HCP 4 control
panel
• Quick Guide
• Power cable set
• User’s guide
and service
manual
• HCP 4 control
panel
• Four connect-
ors with screws
• Quick Guide
Ducts
The ducts connected to the units must at minimum be on the same size as the duct
connector
s or bigger. The measurements can be seen on page 30.
Dimensioning of the ducts and sound mufflers must be in conformity with national
standards and guidelines directives in applicable current buildi
ng act. For any kind of
support and instructions contact your Dantherm
-distributor.
Noise and vibrations from the unit to the ducts must be minimized. This can be done by
installing sound mufflers on both supply and exhaust air sides.
Hanging ducts. The du
cts must not ”hang” from the unit without support.
.
The ducts must be dimmed
and the units must not be connected until the house is
ready for occupation, which means that the house is clean and dry. This is to pre-
vent any construction dust and condensed water from depositing in the ducting
system and to prevent any sanitation inconveniences from the ventilation units
later on.
Continued overleaf
