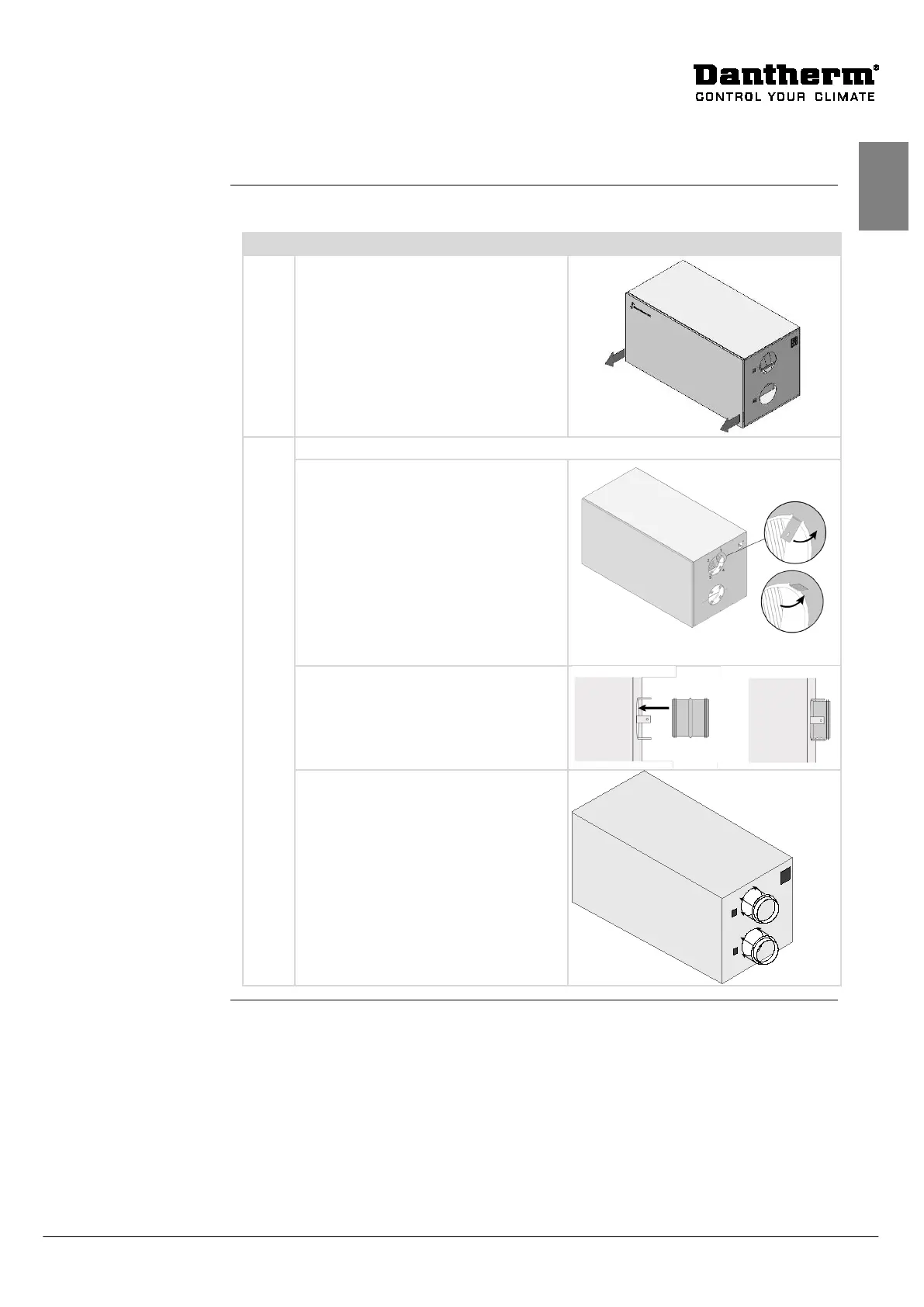

Fittings and installations, continued
Mounting the unit
Follow this procedure to mount the unit:
Step
Action
1
Remove the front door to make sure
that it does not fall off during the
mounting process unintentionally.
Be aware that the styrene front panel
is made of a porous material which is
why any bumps must be avoided.
2
Follow the procedure below depending on the type of your unit.
HCH 5
1. Bend the four flaps with 90° at
both the air in- and outlets as il-
lustrated.
2. Connect four NPU coupling con-
nectors (not included in the deliv-
ery) to the air in- and outlets.
HCH 8
• Mount the four connection pieces
(part of the delivery) to the in-
and
outlets.
Continued overleaf
