Danuser EP6 Hex - Drive Unit Parts

25

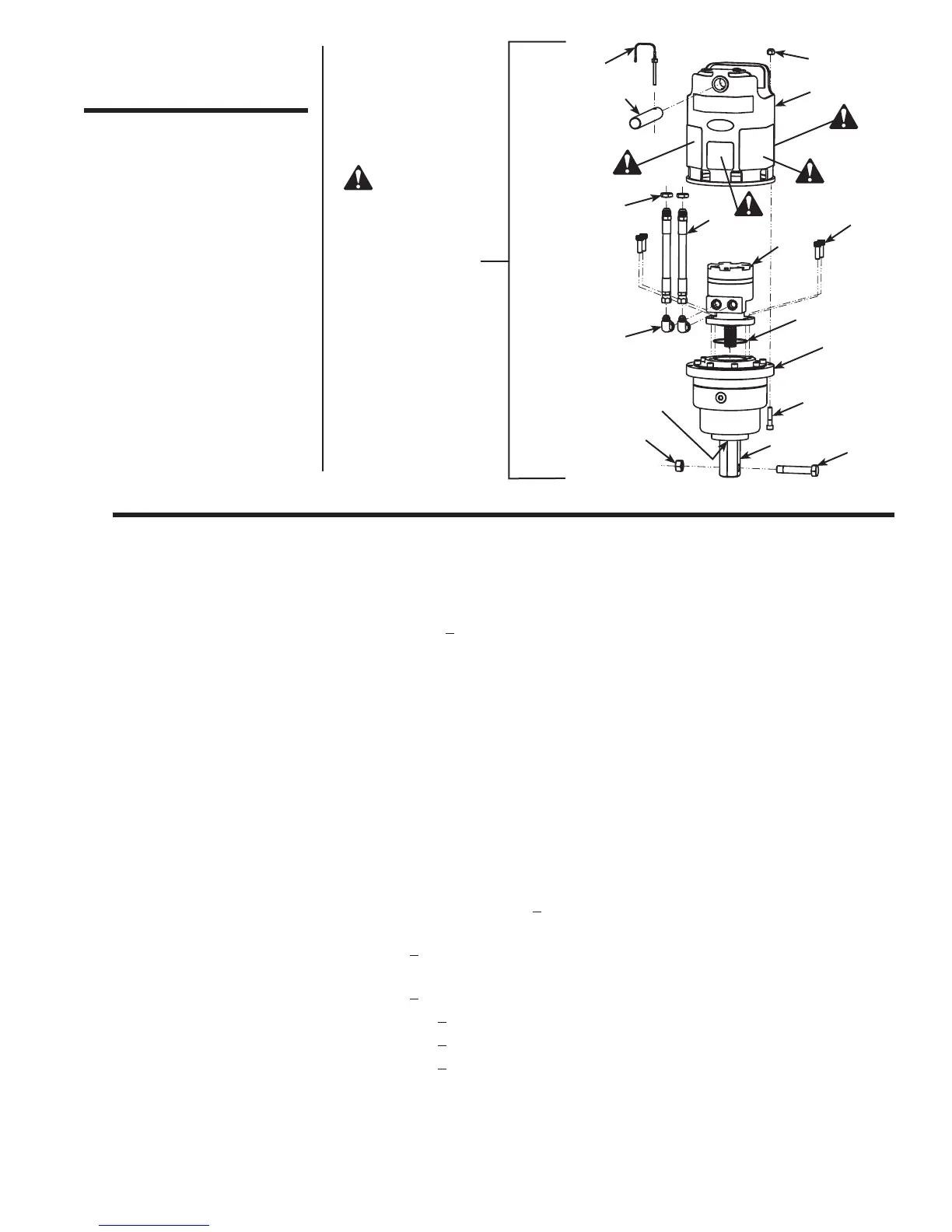

Drive Unit
Parts
2
3
7
8
9
10
11
17
12
16
1
4
14
13
15
= Safety Sign
Location
REF. NO. PART NO. DESCRIPTION QTY. MODELS
1 10180 (H) 20180 (R) Drive Unit 1 EP6 Hex or Rd.
10181 (H) 20181 (R) Drive Unit 1 EP10 Hex or Rd.
10182 (H) 20182 (R) Drive Unit 1 EP15 Hex or Rd.
20001 (H) 20184 (R) Drive Unit 1 EP20 Hex or Rd.
2 10197 Nut (7/16"
14) 8 EP6, EP10, EP15, EP20
3 20186 Housing Assembly 1 EP6, EP10, EP15, EP20
4 20190 Hose Assembly 2 EP6, EP10, EP15, EP20
5 20034 #10 O-ring #8 JIC Elbow 2 EP6, EP10, EP15, EP20
6 10184 Hydraulic Motor 1 EP6
10185 Hydraulic Motor 1 EP10
10186 Hydraulic Motor 1 EP15
10964 Hydraulic Motor 1 EP20
7 10482 Socket Head Bolt (M12 x 1.75 x 35mm) 4 EP6, EP10, EP15, EP20
8 10979 O-ring 1 EP6, EP10, EP15, EP20
9 10183 Planetary Gear Reduction 1 EP6, EP10, EP15, EP20 Hex
20183 Planetary Gear Reduction 1 EP6, EP10, EP15, EP20 Rd.
10 10196 Socket Head Bolt (7/16"
14 x 2") 8 EP6, EP10, EP15, EP20
11 10038 Special Retaining Bolt - 2" Hex
(3/4"
10 x 4", Gr. 8, 3/4" of thread)
1 EP6, EP10, EP15, EP20 Hex
10039 Special Retaining Bolt - 2-9/16" Rd.
(7/8"
9 x 4-1/4", Gr. 8, 3/4" of thread)
EP6, EP10, EP15, EP20 Rd.
12 10041 Nut (3/4"
10) - 2" Hex 1 EP6, EP10, EP15, EP20 Hex
10042 Nut (7/8"
9) - 2-9/16" Round EP6, EP10, EP15, EP20 Rd.
13 20191 Nut (7/8"
14) 2 EP6, EP10, EP15, EP20
14 10193 Pin (1-1/4" x 9-1/2") 1 EP6, EP10, EP15, EP20
15 20012 Lock Pin 1 EP6, EP10, EP15, EP20
16 10980 Output Seal 1 EP6, EP10, EP15, EP20
17 10996 Output Spindle - 2" Hex 1 EP6, EP10, EP15, EP20 Hex
10997 Output Spindle - 2-9/16" Round EP6, EP10, EP15, EP20 Rd.
6
5
