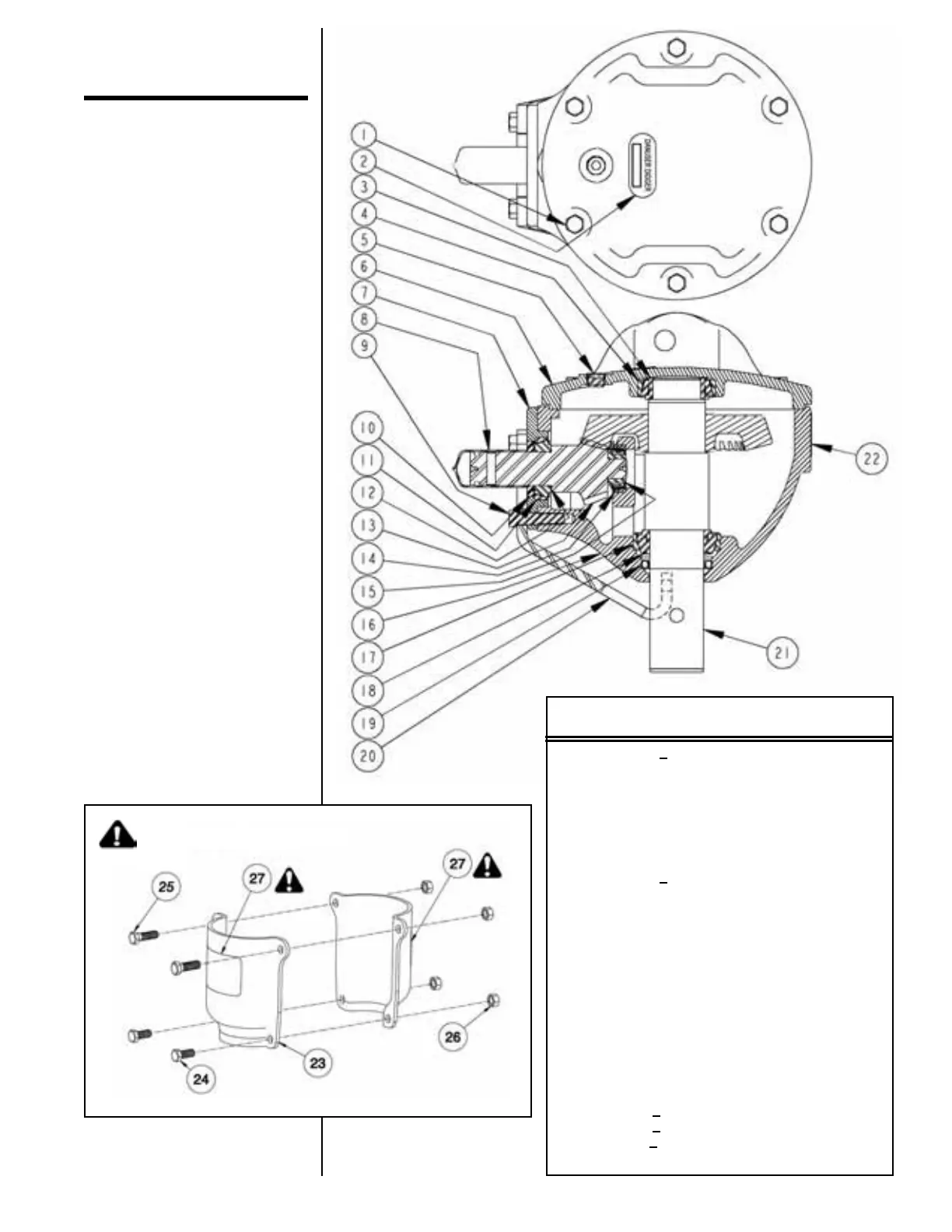

Danuser G20/40 - Gearbox Assembly

Gearbox
Assembly
Ref. Part. No.
No. Description No. Req’d
1 Bolt (7/16
"
14 x 1-3/4" Gr. 5) . . .6059 . . . . . .6
2 Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . .1
3 Cone (Upper Spindle) . . . . . . . . . .6009 . . . . . .1
4 Cup (Upper Spindle) . . . . . . . . . . .6008 . . . . . .1
5 Housing Cover Plug . . . . . . . . . . . .1113 . . . . . .1
6 Gear Housing Cover . . . . . . . . . . .6004 . . . . . .1
7 Cap . . . . . . . . . . . . . . . . . . . . . . . . .6005 . . . . . .1
8 Cap (Pinion Protection) . . . . . . . . .6016 . . . . . .1
9 Bolt (7/16
" 14 x 1-3/4" Gr. 5) . . .6059 . . . . . .3
10 Oil Seal (Pinion) . . . . . . . . . . . . . .6017 . . . . . .1
11 Cup (Outer Pinion) . . . . . . . . . . . . .6012 . . . . . .1
12 Cone (Outer Pinion) . . . . . . . . . . . .6013 . . . . . .1
13 Pinion . . . . . . . . . . . . . . . . . . . . . . .6349 . . . . . .1
14 Cup (Inner Pinion) . . . . . . . . . . . . .6010 . . . . . .1
15 Cone (Inner Pinion) . . . . . . . . . . . .6011 . . . . . .1
16 Gear Housing . . . . . . . . . . . . . . . . .6003 . . . . . .1
17 Cup (Lower Spindle) . . . . . . . . . . .6006 . . . . . .1
18 Cone (Lower Spindle) . . . . . . . . . .6007 . . . . . .1
19 Oil Seal (Spindle) . . . . . . . . . . . . . .6018 . . . . . .1
20 Guard Bracket . . . . . . . . . . . . . . . .6274 . . . . . .1
21 Spindle Assembly . . . . . . . . . . . . . .6352 . . . . . .1
22 Danuser Decal . . . . . . . . . . . . . . . .2088 . . . . . .1
23 Auger Adapter Shield . . . . . . . . . . .6137 . . . . . .2
24 Bolt (3/8
" 16 x 7/8" Gr. 5) . . . . . .2339 . . . . . .2
25 Bolt (3/8
" 16 x 1-1/4" Gr. 5) . . . .1180 . . . . . .2
26 Nut (3/8
" 16) . . . . . . . . . . . . . . . . .2168 . . . . . .4
27 Safety Sign . . . . . . . . . . . . . . . . . . .2169 . . . . . .2
17
= Safety Sign Location
