Danuser G20/40 - Preparation

Preparation
Package Inspection
Component Identification
7
Check for shipping damage immediately, and verify that all components have been received.
Report all shipping damage to the carrier immediately.
Before you begin assembly, open all packaging and compare the contents to the photo
(Fig. 1) and shipping list (Table 1) below to ensure you have all of the components and your
unit has all of the safety signs and shields or guards required by current production safety
standards. If your unit does not comply, contact Danuser Machine Company, Inc.
IMMEDIATELY at (573) 642-2246.

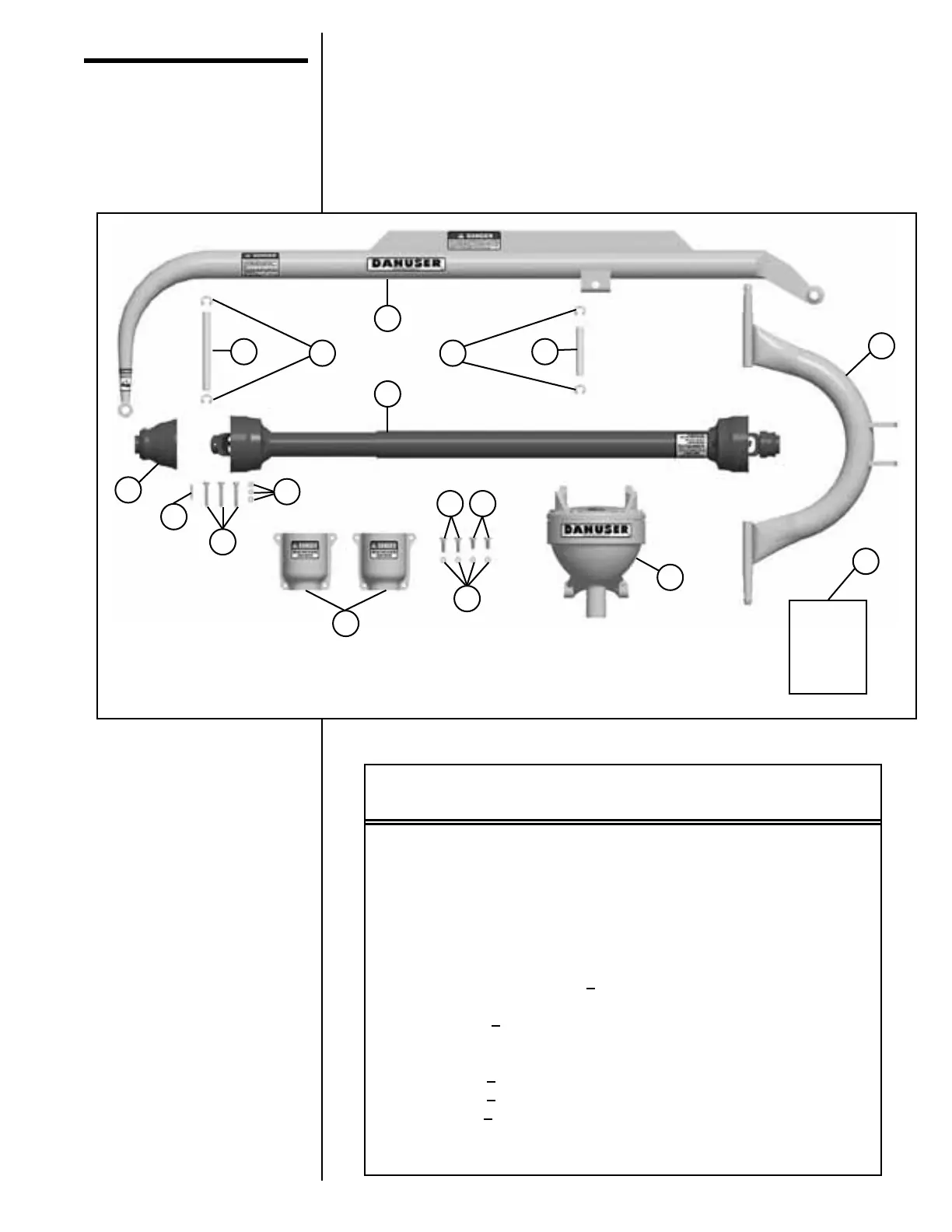

FIG. 1 - DANUSER G20/40 DIGGER COMPONENTS
Ref. Part
No. Description No. Qty.
1 Boom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6045 . . . . . . .1
2 Pin (3/4" x 8") . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6056 . . . . . . .1
3 Retaining Ring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2172 . . . . . . .4
4 Pin (3/4" x 4-15/16") . . . . . . . . . . . . . . . . . . . . . . . . .6055 . . . . . . .1
5 Pinion Guard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6057 . . . . . . .1
6 Driveline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6807 . . . . . . .1
7 Yoke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6051 . . . . . . .1
8 Roll Pin (3/16" x 1-1/2") . . . . . . . . . . . . . . . . . . . . . .6061 . . . . . . .1
9 Special Shear Bolt (5/16"
18 x 2-1/4" Gr. 5) . . . . . .6015 . . . . . . .3
(one required in unit, two spares included)
10 Nut (5/16"
18) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .573 . . . . . . .3
(one required in unit, two spares included)
11 Auger Adapter Shield . . . . . . . . . . . . . . . . . . . . . . . . .6137 . . . . . . .2
12 Bolt (3/8"
16 x 1-1/4" Gr. 5) . . . . . . . . . . . . . . . . . . .1180 . . . . . . .2
13 Bolt (3/8" 16 x 7/8" Gr. 5) . . . . . . . . . . . . . . . . . . . .2339 . . . . . . .2
14 Nut (3/8"
16) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2168 . . . . . . .4
15 Gearbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
16 Owner’s Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
TABLE 1 - SHIPPING LIST OF DANUSER G20/40 DIGGER (PN 6000)
1
2
3
4
3
5
6
7
8
9
10
11
12
13
14
15
16
Owner’s
Manual
Packet
