DAPAudio DCP-24 MKII User Manual

40
DCP-24 MKII Digital Cross Over
Product code: D2083

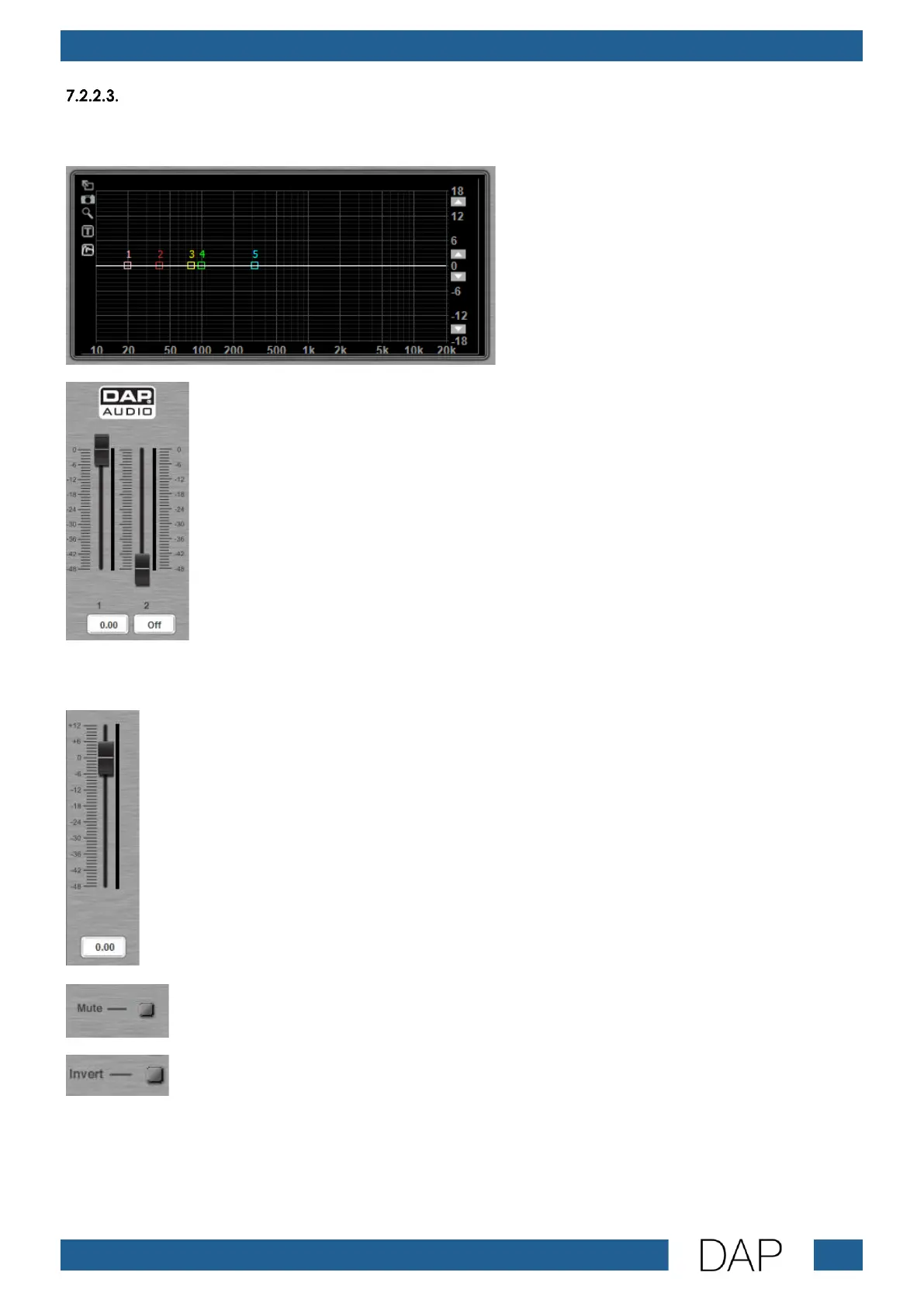

Out 1–4/1–6 Panels
This panel gives you a detailed overview of the settings of the output channels 1–4 (or 1–6 when using
DCP-26 MKII). You can view and adjust all the settings.
The display shows the frequency curve of the
corresponding channel.
Click-and-drag the EQ points (1–5) to edit the
frequency and gain.
You can mix both input channels (A–B).
To decrease/increase gain, perform one of the 2 actions:
● Move the slider up/down.
● Type a value manually in the field below a slider.
The adjustment range is from -48 dB to 0 dB.
To mute an input channel, type “off” in the field below a slider.
The VU meters next to the faders show the input levels for each input.
Note:
The mixer does not function if the input channels are linked.
To decrease/increase gain, perform one of the 2 actions:
● Move the slider up/down.
● Type a value manually in the field below a slider.
The adjustment range is from -48 dB to +12 dB.
The channel has its own VU meter, displaying the current signal level.
Click on the button to mute the channel. The button lights up red.
You can reverse the signal phase of all output channels 1–4 (or 1–6 when using
DCP-26 MKII).
Click on the button to reverse the signal phase. The button lights up red.
