Darfon B09ULF - Module Introduction

9 / 47
1.5 Module introduction

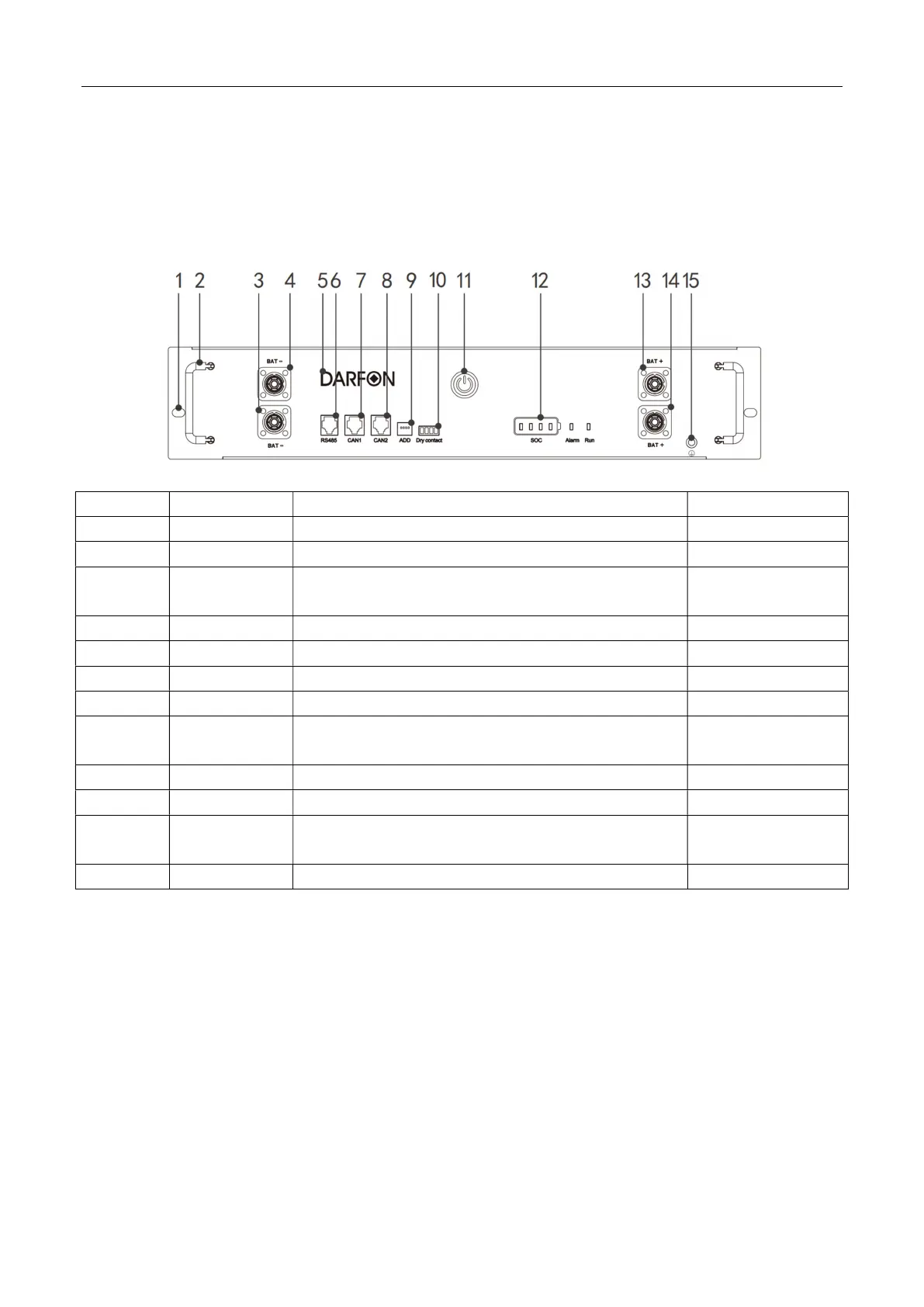

1.5.1 Panel description
NO. Description Function Remark
1 Mounting holes Battery box and cabinet fixing hole
2 handle Battery box handle
3,4
Input and
output negative
Battery box power output negative interface
5 logo Manufacturer description information
6 RS485 RS485 communication interface RJ11-6P
7,8 CAN CAN communication interface RJ45-8P
9 ADD Battery box dial switch
10 Dry node
Multiple battery boxes in parallel with one button to
start the interface
11 button Battery box start/stop button
12 Status display Power and operation fault display
13,14
Input and
output positive
Battery box power output positive interface
15 Grounding hole Used to connect the earth
