4.3 Display state

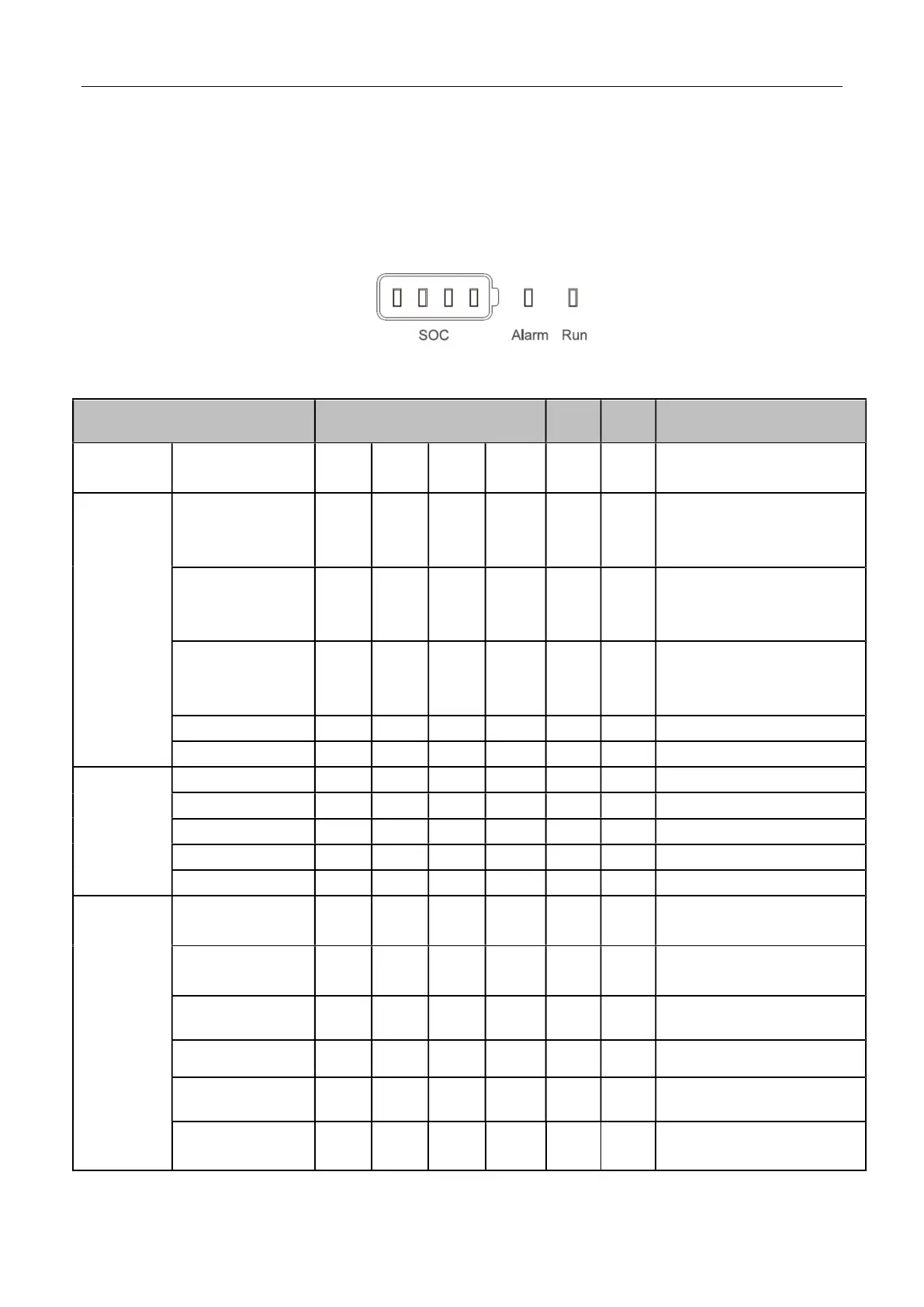

The system status indicator is as shown below, sorted from bottom to top as
LED1-LED6.
Description of requirements: The battery has 6 LED indicators, including protection, operation, power
display (4), the function description is shown in the table below.
States description Capacity LED (Low to high)
ALM
RUN
Remarks
Shut down
mode
All LED’s off
Charging
SOC 0%-25% ★ ★ ★ ★ ●
Battery LED (1^4) from low
to high for the status of the
water lamp
SOC 26%-50% ● ★ ★ ★ ●
Battery LED (2^4) from low
to high for the status of the
water lamp
SOC 51%-75% ● ● ★ ★ ●
Battery LED (3^4) from low
to high for the status of the
water lamp
SOC 76%-99% ● ● ● ★ ● Battery LED 4 flash
SOC 100% ● ● ● ● ● Charge cutoff
Discharging
SOC 1%--25% ● ●
SOC 26%--50% ● ● ●
SOC 51%--75% ● ● ● ●
SOC 76%--100%
● ● ● ● ●
SOC 3% ★ ●
Protection
Low-voltage protect
● ● ●
Including cell low-voltage
and the module low-voltage
Overvoltage protect
● ● ●
Including cell overvoltage and
the module overvoltage
Overcurrent
(discharging)
● ● ●
Low-temp. protect
(Charging)
● ● ● ●
High-temp. protect
(Charging)
● ● ● ●
Low-temp. protect
(Discharging)
● ● ● ●
