3. Electrical Connection

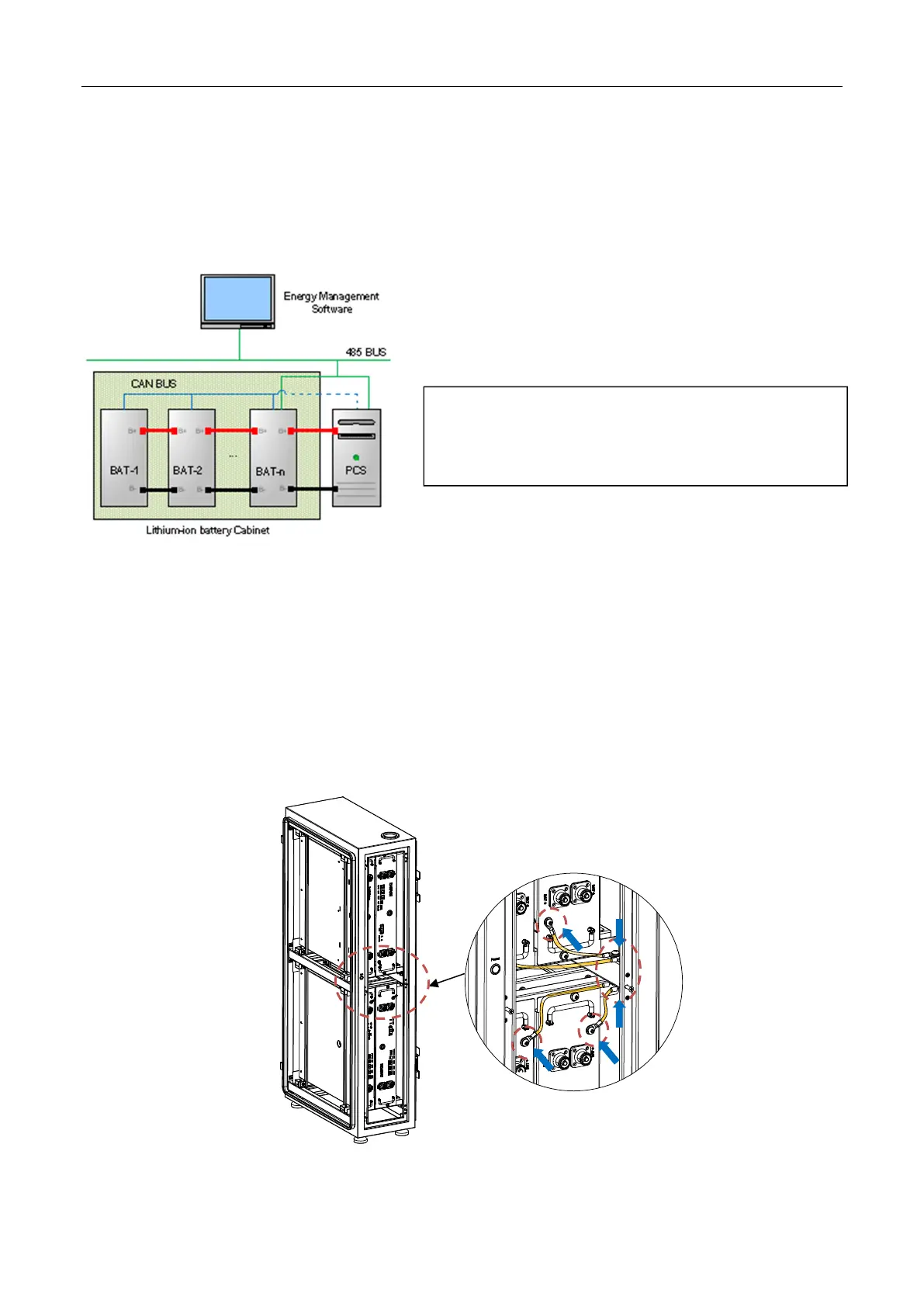

3.1 System working principle diagram
3.2 Battery module ground
Connect the grounding point of the battery module to the casing panel. Fix one end of
the yellow-green grounding wire (labeled BAT/GND) to the grounding point of the chassis
panel with the screw, and connect the other end to the grounding point of the fixed chassis.
Screw the screwdriver with a screwdriver. Tighten
* 1 battery cabinet when N≤4；
4<N≤16 when four battery cabinets are combined
(-------Dotted line means optional)
To Next Page
