(10) Battery module grounding: Please refer to section 3.2
(11) System grounding: Please refer to section 3.3
(12) System wiring: Please refer to section 3.4
(13) DIP switch settings: Please refer to section 3.5
(14) Matching resistor installation: Please refer to section 3.6

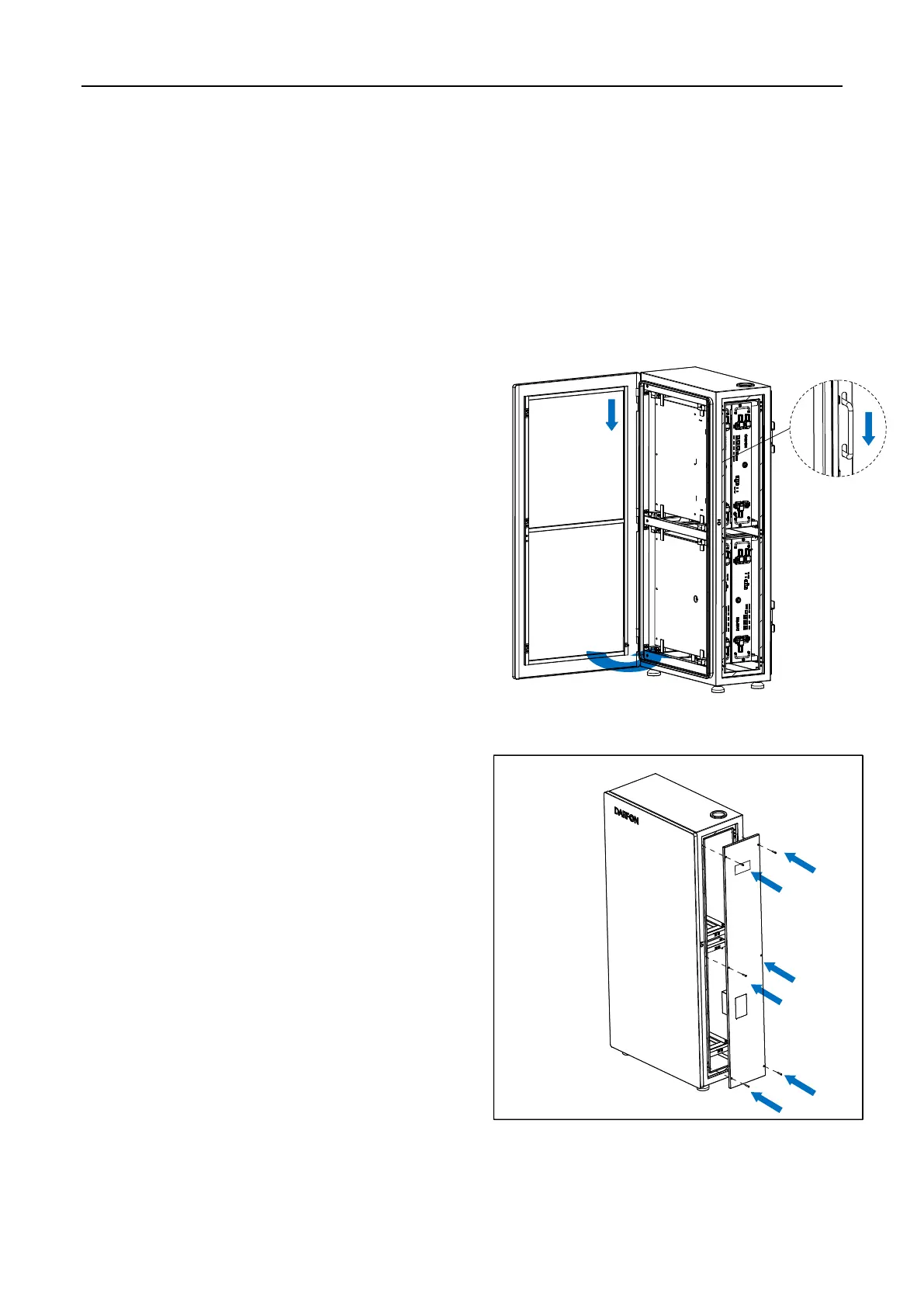

(15) Install the front door: Align the front door
hinge with the hole on the door and press the front
door as shown in . Rotate the front door
clockwise to firmly press the front door and the
cabinet, push the handle down from the inside of
the cabinet as shown in , and lock the front door
as shown in .
(16) Install the side door: After
attaching the side door to the
position, use a screwdriver to lock
the 6 screws on the side door.
