21 / 47

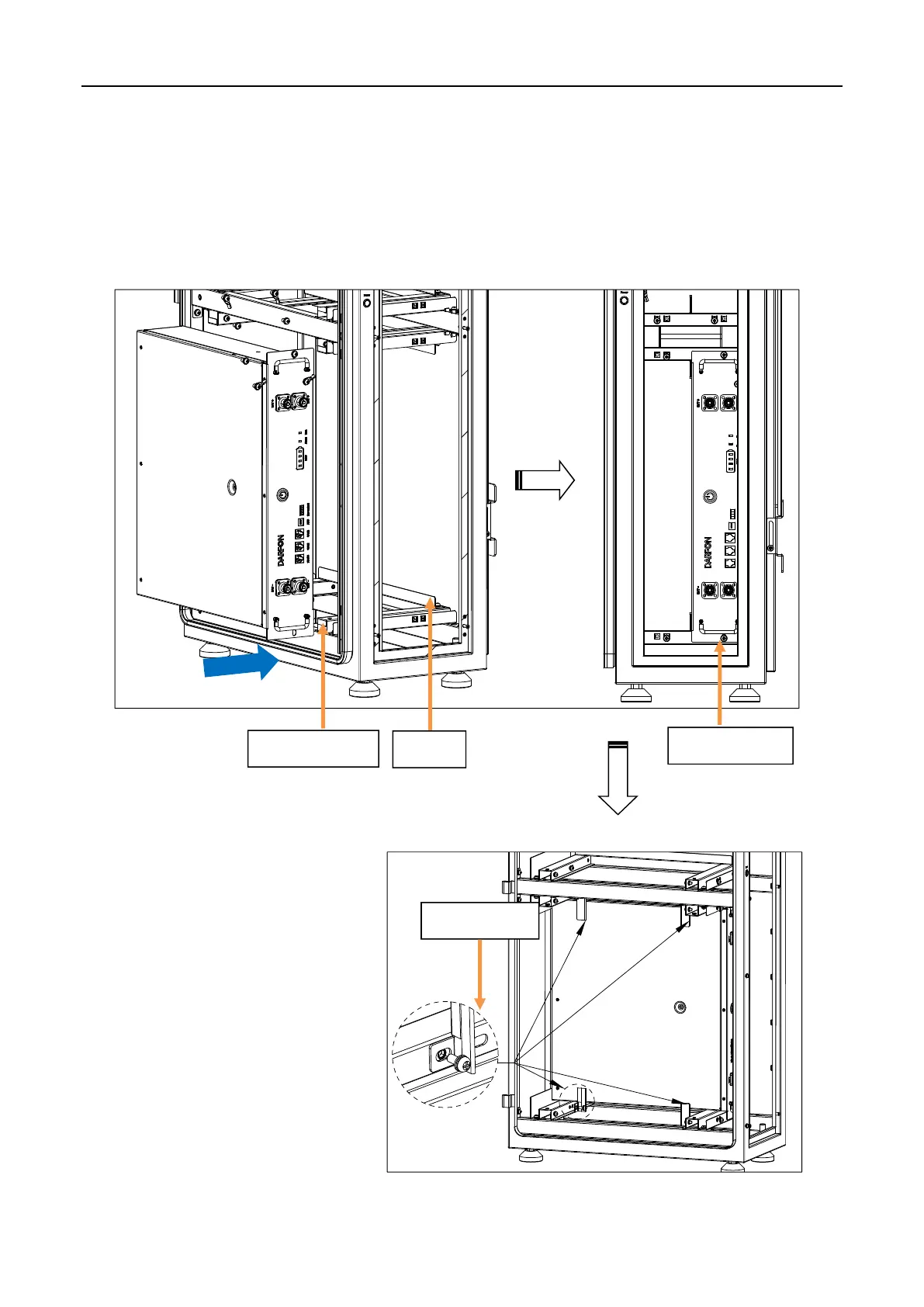

(8) Install the first battery module: As shown in the figure, place the battery module on the battery cabinet
beam, push it in parallel as shown in the figure below, and fasten the battery module cover, using the
screws removed in step 7. The side-mounted battery module is shown as Fix the four battery press
plates to press the battery module as shown in on the front of the cabinet.
Baffle
Cabinet beam
Screw fixing
○
4
○
5
Press plate
○
6
