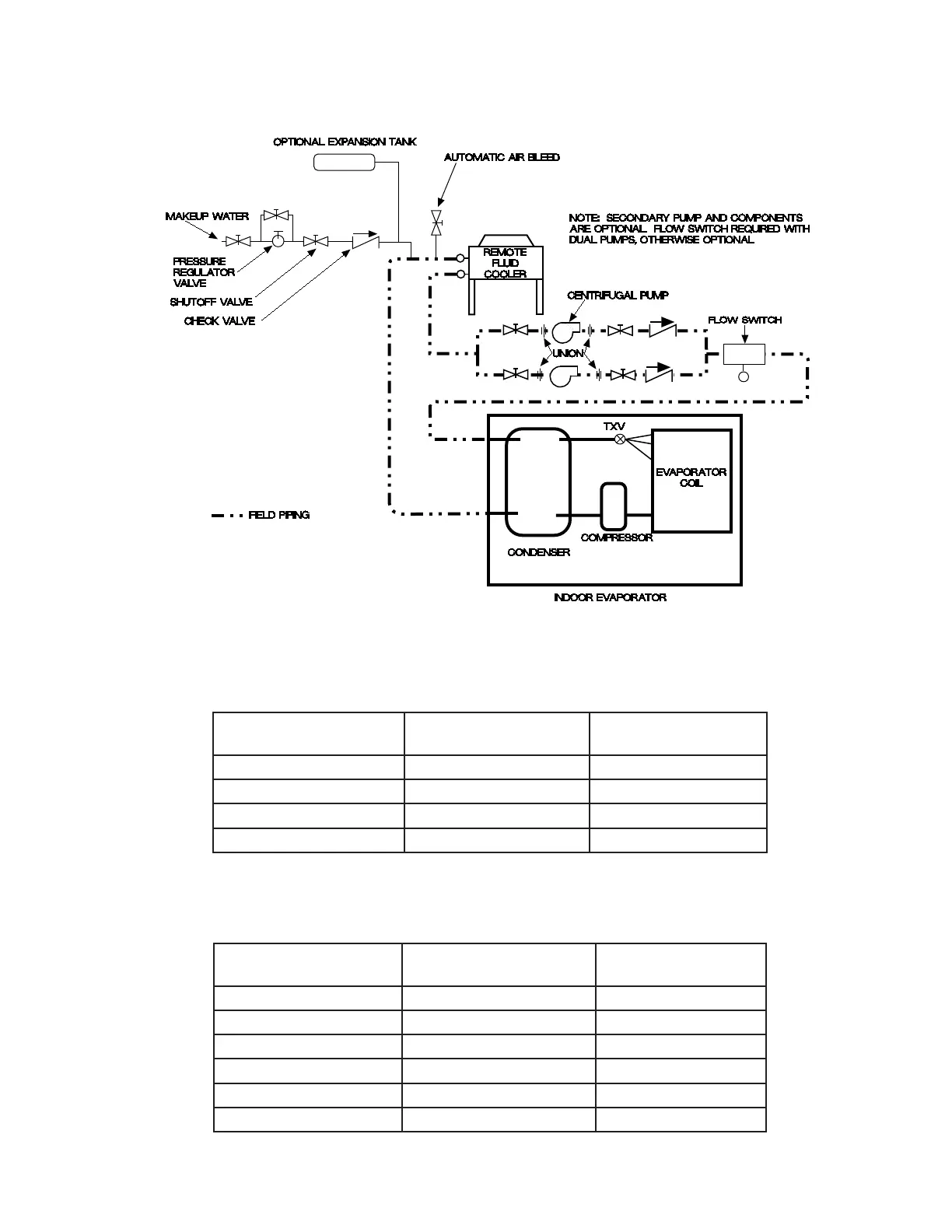

2.2.2 Field Piping, Water/Glycol System
2.2.3 Connection Sizes, Water/Glycol Cooled Units
EVAPORATOR
MODEL
WATER IN
CONNECTION
WATER OUT
CONNECTION
DAMW/G-01 3/4” O.D. 3/4” O.D.
DAMW/G-1.5 3/4” O.D. 3/4” O.D.
DAMW/G-02 3/4” O.D. 3/4” O.D.
DAMW/G-2.5 3/4” O.D. 3/4” O.D.
2.2.3 Connection Sizes, Fluid Coolers (Dry Coolers)
EVAPORATOR
MODEL
WATER IN
CONNECTION
WATER OUT
CONNECTION
DAFC-06 1-5/8” O.D. 1-5/8” O.D.
DAFC-07 1-5/8” O.D. 1-5/8” O.D.
DAFC-09 1-5/8” O.D. 1-5/8” O.D.
DAFC-11 2-1/8” O.D. 2-1/8” O.D.
DAFC-15 2-1/8” O.D. 2-1/8” O.D.
DAFC-17 2-5/8” O.D. 2-5/8” O.D.
