AIR-COOLED FLUID COOLER
22 • Air-Cooled Condenser Manual

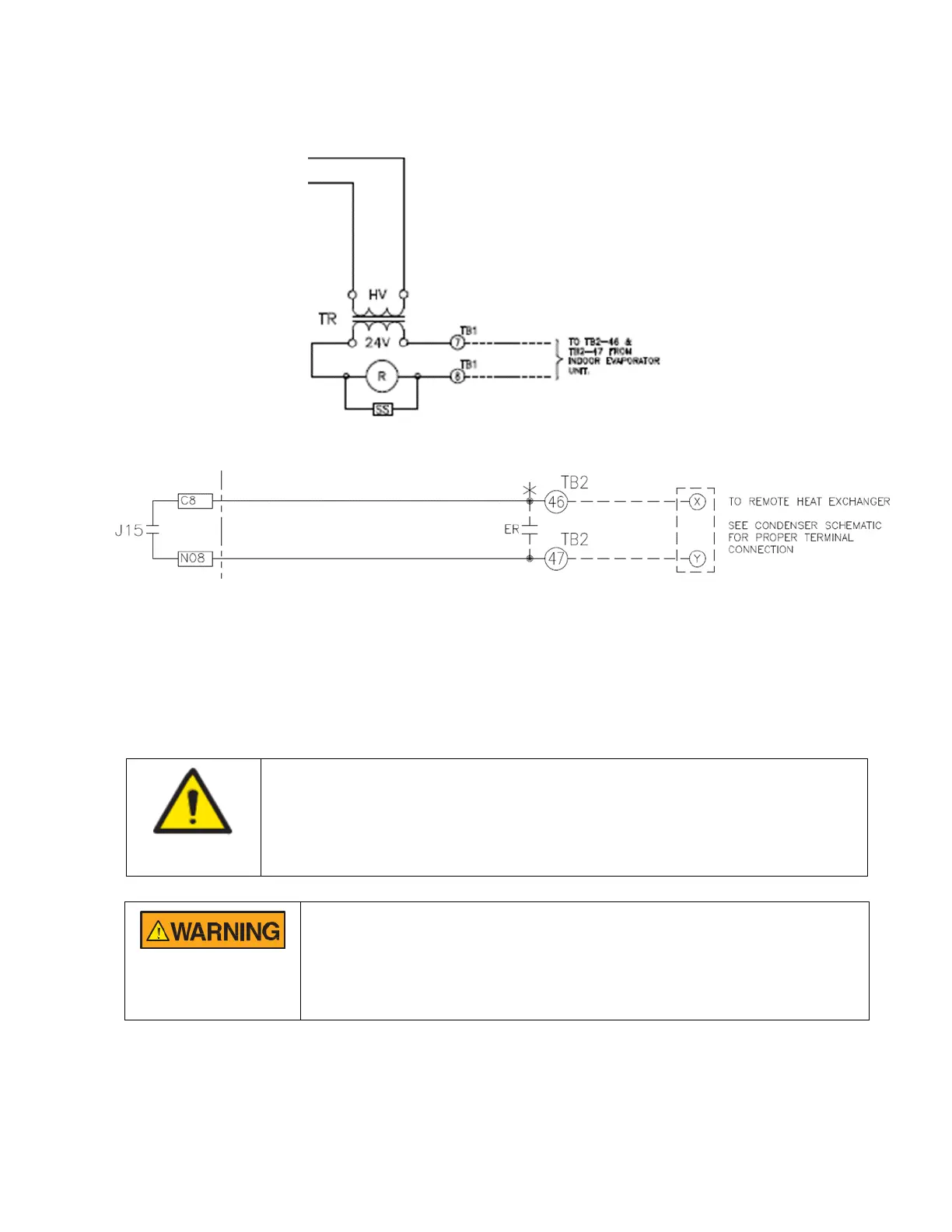

Figure 3 Typical Remote Heat Exchanger Interconnection Points
Figure 4 Typical Indoor Evaporator Interconnection Points
4.8 Disconnect Switch (Optional)
A thru-door locking disconnect switch is an optional feature which includes a non-automatic
disconnect switch mounted in the high voltage section of the electrical control box. The
operating mechanism prevents access to the high voltage electrical components until
switched to the "OFF" position. The operating mechanism protrudes through the exterior door
and is lockable in the OFF position.
NOTICE: The optional disconnect switch extension shaft and locking
handle are shipped loose to prevent damage during transit and
installation. It is the installing contactors responsibility to install these
components as part of the installation process.
WARNING: Before proceeding with the electrical connections,
make certain that the volts, hertz and phase correspond to that
specified on the unit electrical nameplate. Use copper conductors
only.
