DataCard SD460 Quick Install Guide

4 SD460 SLM Laminating System
SD460 Laminating System Quick Install Guide

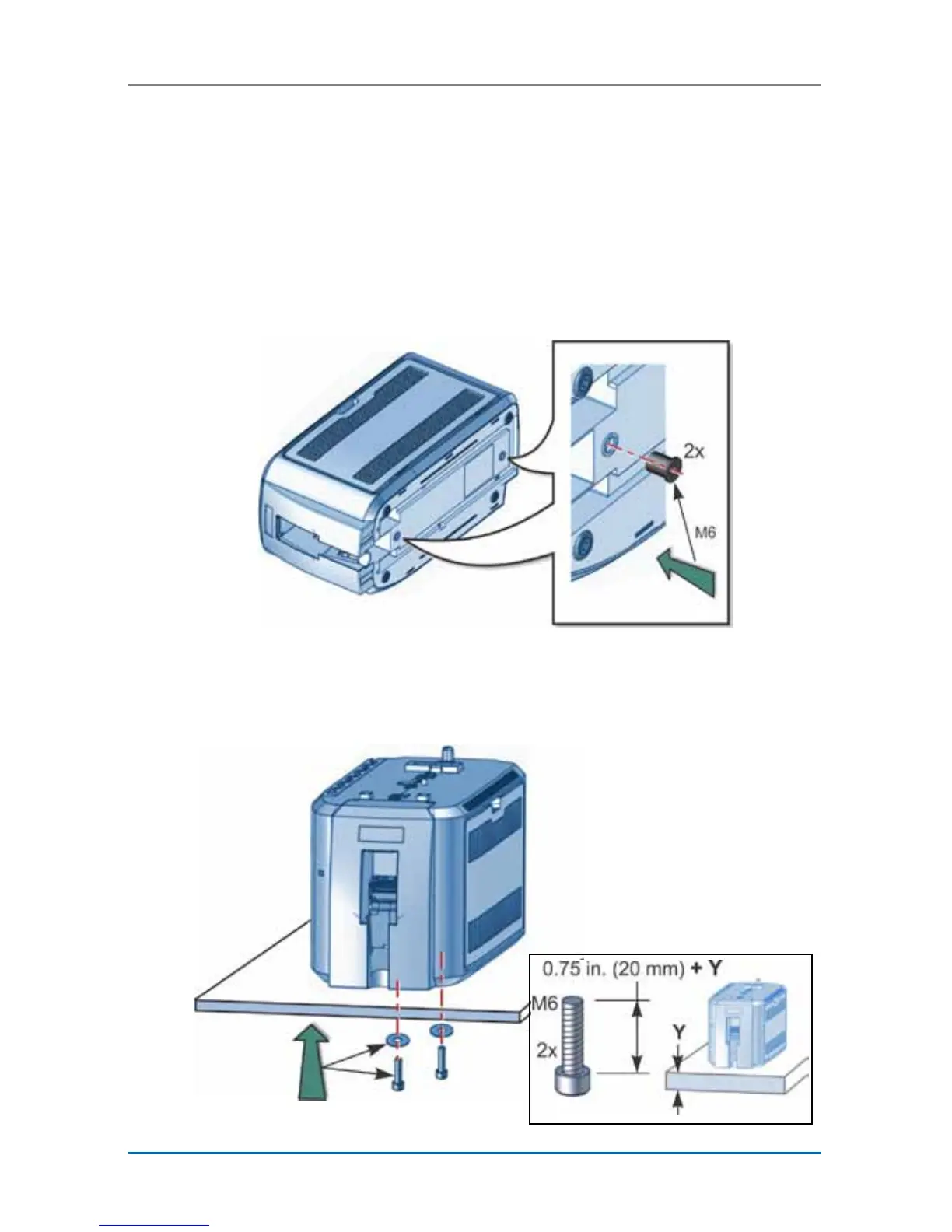

b. Secure the laminator to the mounting surface (optional).
Refertotheprinter’sInstallation and Administrator’s
Guide for detailed measurements and instructions.
i. Carefully tip the laminator onto its left side (the side
without the access door). Insert the M6 well nuts
into the bolt-down openings in the bottom of the
laminator.
ii. Returnthelaminatortoitsuprightpositionand
secure the laminator to the mounting surface with
the two M6 screws.

DataCard SD460 Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Magnetic stripe (ISO 7811), PVC, Smart card
Print technology	Dye-sublimation/Resin Thermal transfer
Duplex print speed (color)	200 card/h
Display	LCD
Certification	cULus, FCC, I.C., CE, Ctick, VCCI, RoHS, WEEE, CCC, KCC
Product color	Black, Blue
Internal memory	128 MB
Built-in barcodes	1D, 2D
Total input capacity	100 sheets
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Wi-Fi	No
USB version	2.0
Ethernet interface type	Fast Ethernet
Storage temperature (T-T)	-15 - 60 °C
Operating temperature (T-T)	15 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Weight	13600 g
Dimensions (WxDxH)	589 x 270 x 513 mm
