DataCard SD460 Quick Install Guide

6 SD460 SLM Laminating System
SD460 Laminating System Quick Install Guide

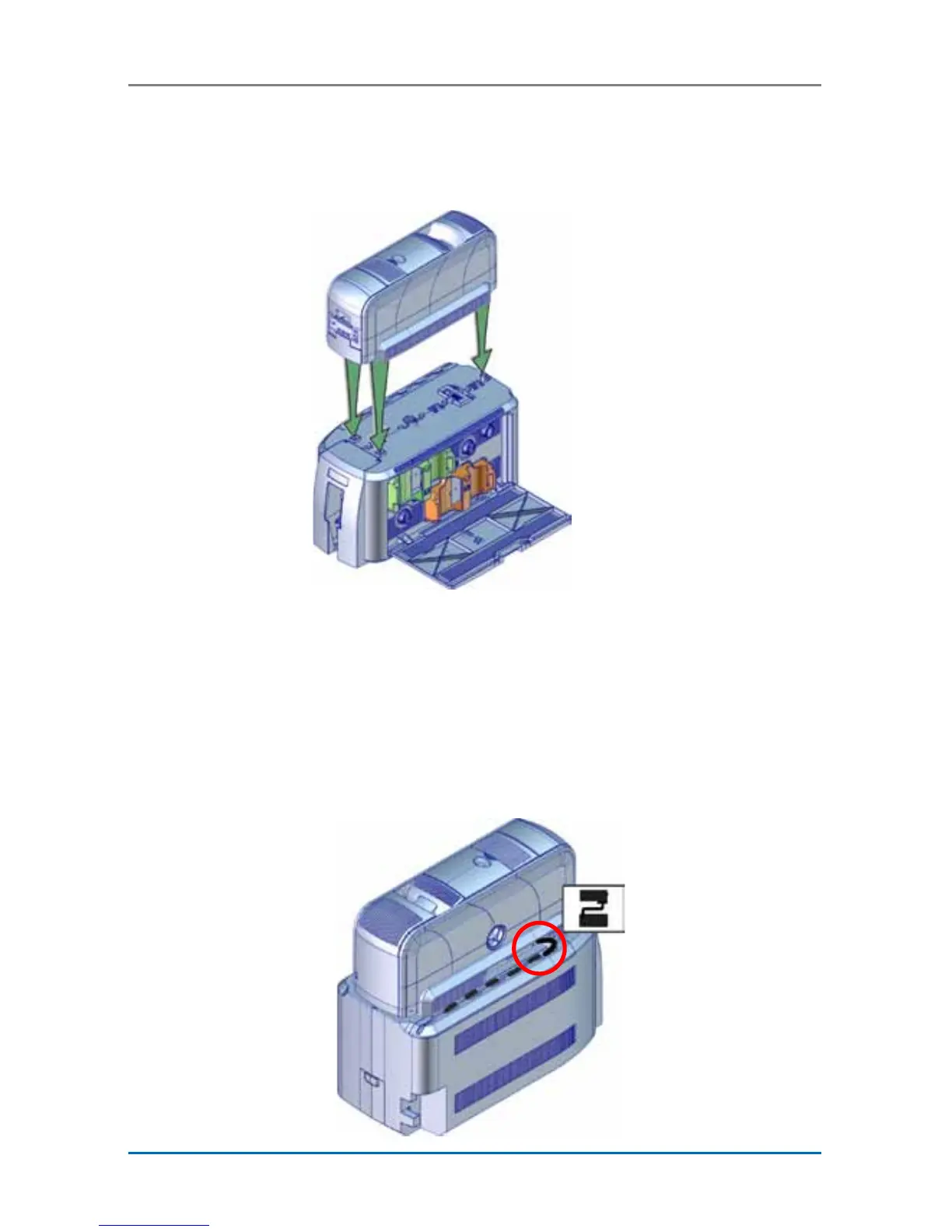

d. Lift the printer over the laminator and align the pins on
the laminator with the holes on the underside of the
printer.
Back
Front
e. Pressdownontheprintercarefully,butrmly,to
position it.
f. Push the printer locking lever to the right to lock the
printer to the laminator. Make sure that the printer is
locked securely to the laminator.
g. Connect the interconnect cable to the bottom data port
of the printer.

DataCard SD460 Specifications

General

Color	Yes
Card size	85.6 x 53.98 mm
Card types	Magnetic stripe (ISO 7811), PVC, Smart card
Print technology	Dye-sublimation/Resin Thermal transfer
Duplex print speed (color)	200 card/h
Display	LCD
Certification	cULus, FCC, I.C., CE, Ctick, VCCI, RoHS, WEEE, CCC, KCC
Product color	Black, Blue
Internal memory	128 MB
Built-in barcodes	1D, 2D
Total input capacity	100 sheets
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Wi-Fi	No
USB version	2.0
Ethernet interface type	Fast Ethernet
Storage temperature (T-T)	-15 - 60 °C
Operating temperature (T-T)	15 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Weight	13600 g
Dimensions (WxDxH)	589 x 270 x 513 mm
