2.2 OM-GRYPHON™ INTERFACE CABLE CONNECTIONS

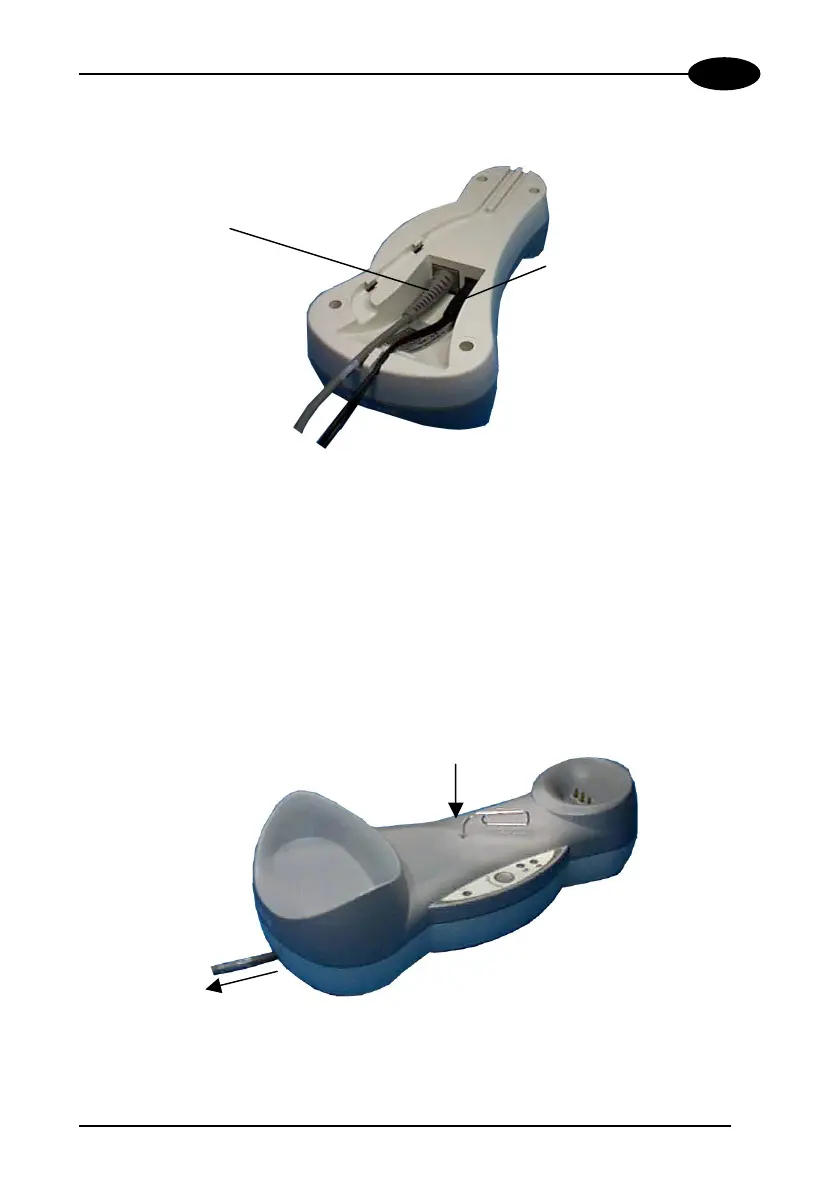

OM-GRYPHON™ Connectors
The OM-GRYPHON™ incorporates a multi-standard interface which can be connected
to a Host by simply plugging an RS232, Wedge or Pen emulation cable into the Host
connector, placed on the base of the cradle. In addition the cradle must be connected
to an external power supply.
To disconnect the cable, insert a paper clip or other similar object into the hole
corresponding to the Host connector on the body of the cradle.
Push down on the clip while unplugging the cable.
Disconnecting the OM-GRYPHON™ Cable
Multi-standard Interface
RS232, WEDGE and PEN Emulation
Power
