3 GRYPHON™ M SYSTEM AND NETWORK LAYOUTS
There are two basic system layouts that can be employed: Stand Alone systems and
Multidrop STAR-System™ Networks.
3.1 STAND ALONE LAYOUTS

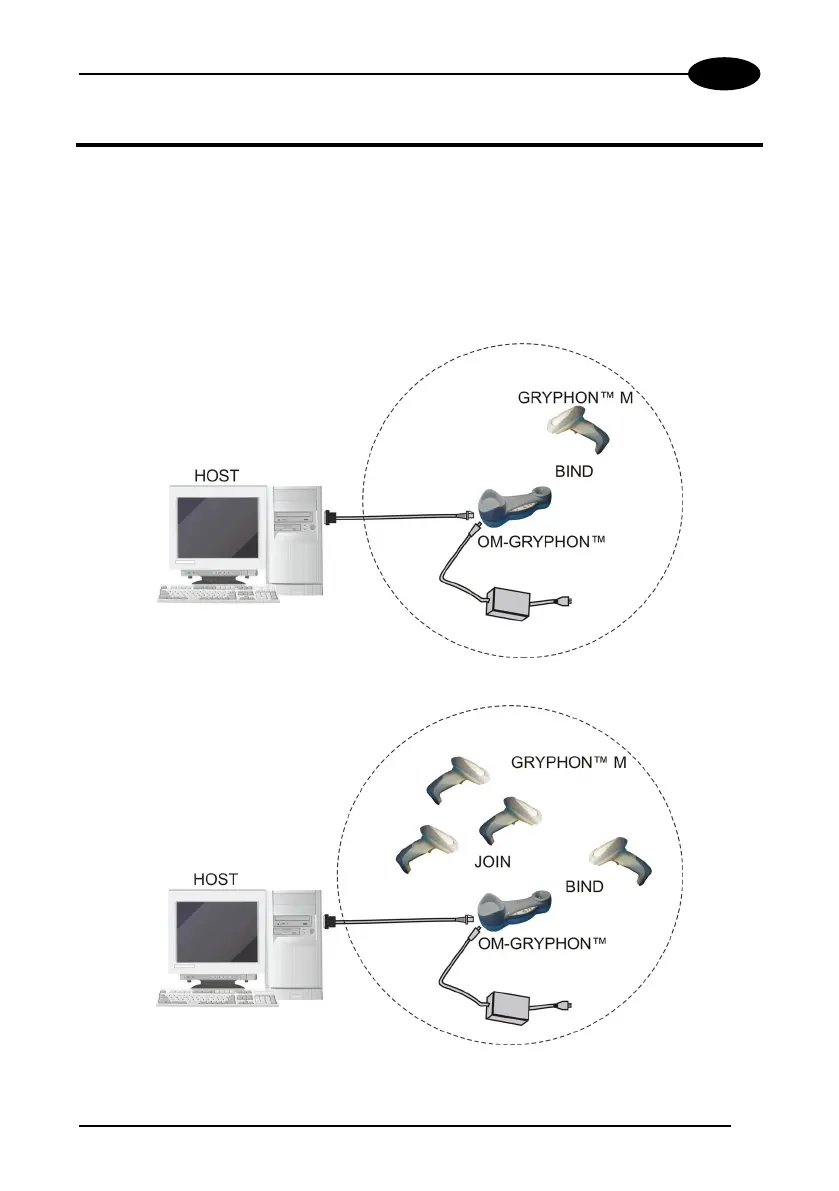

3.1.1 Single Reader Layout
3.1.2 Multiple Reader Layout
In stand alone systems, each cradle is connected to a single Host.
