Datalogic MAGELLAN 1400I Quick Reference Guide

Quick Reference Guide 5
Quick Reference
Use this manual to assist in getting your installation up-and-running
quickly and efficiently. For more details, including programming infor-
mation, reference the Product Reference Guide (PRG), which is available
for viewing and download from the website listed on the back cover of
this manual.
Installation
Route the interface cable from the terminal or host. Plug the AC adapter
(if one is used) into a wall outlet and the interface (I/F) cable, then route
and attach the I/F cable to the scanner. Verify operation by presenting
known-good bar codes to the scanner. The unit should beep
1
and/or
flash its good read LED and send the bar code data to the host or termi-
nal. If not, refer to the Troubleshooting section of this guide.
Scanner installation is complete.
Power Supply
Models require either a Listed class II or class III with a Limited Power
Source (LPS).
For the safety certification to be valid, class III input power sources must
be IEC/EN60950-1 (EN 60335-series, EN 60065 or relevant) approved.
Input: 100-240 VAC
Output: 5 V or 8-14 V (check scanner voltage option)
Max. Current: 1 A Max. Power: 14 W
1. Beeper and LED behavior is selectable and may have been disabled
by a previous user.

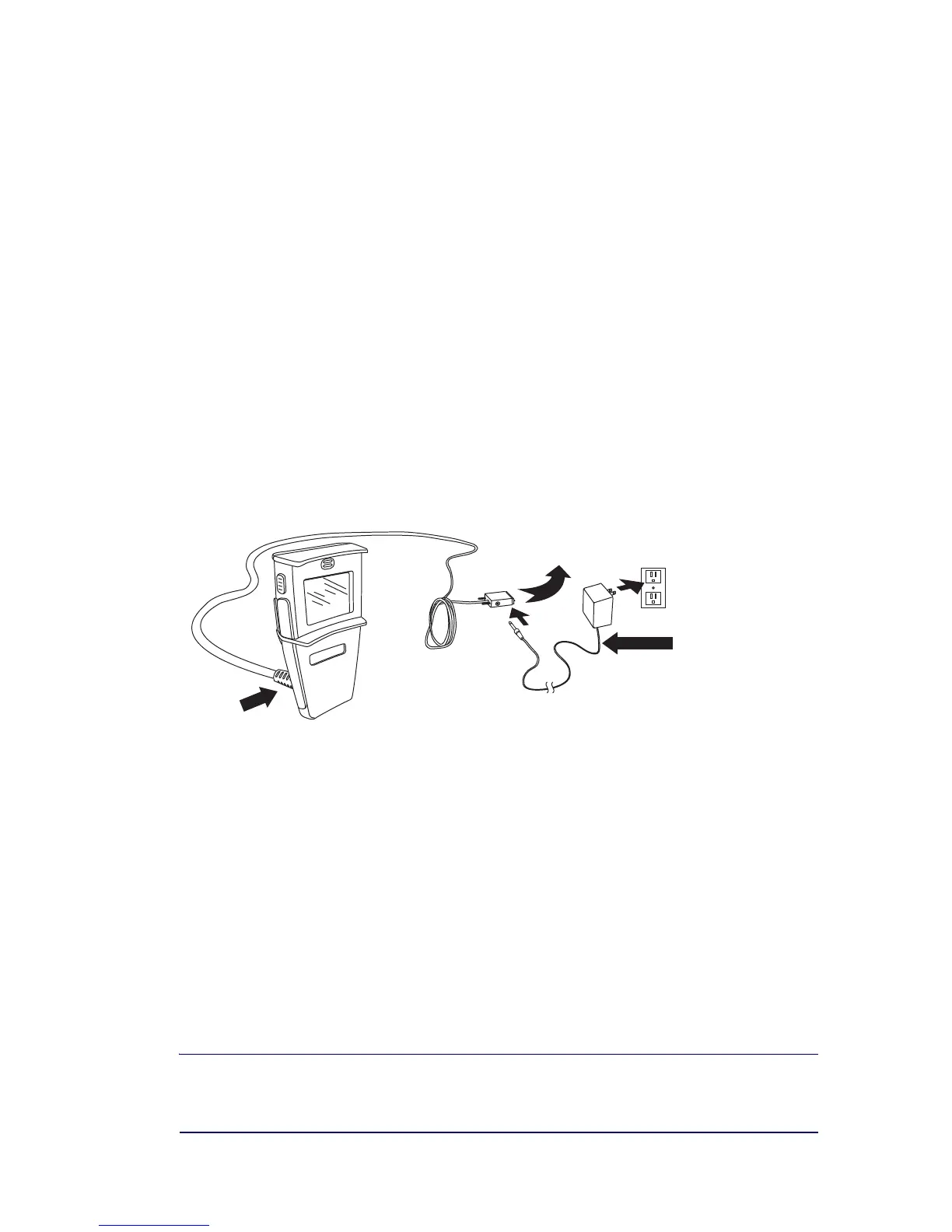

I/F Cable
Connect
Here
A/C Adapter
(if needed)
To Host/Terminal
For 220-230 VAC
adapters, the
cord must be
facing down as
shown in the
illustration. If
installed upwards,
it will pose an
undue strain on the
socket outlet.
