Datalogic MAGELLAN 3200VSI Quick Reference Guide

2Magellan
TM
3200VSi
Installation

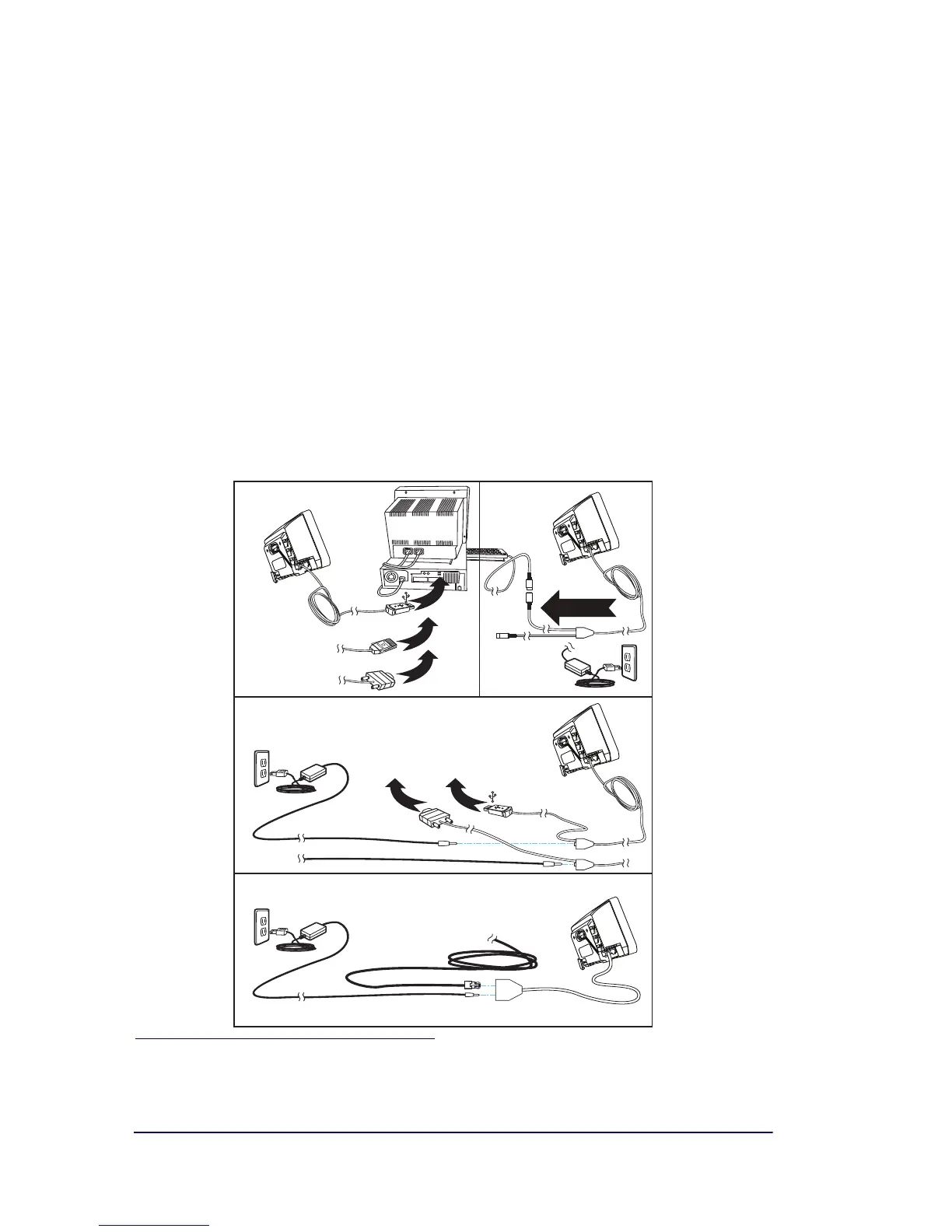

Connect the scanner to the host (terminal) using the interface (I/
F) cable as shown below. A cable from an older existing installa-
tion can be re-used if it uses Power Off the Terminal (POT),
unless it is a USB POT cable. If external power is used/needed,
plug the AC Adapter into the AC wall outlet, then connect it to
the I/F cable as shown in ‘b’ and ‘c’ of the illustration.
Scan some known-good bar code samples to verify correct opera-
tion. The scanner should beep and/or flash its good read LED
1
and send the bar code data to the host or terminal. If not, use the
Troubleshooting section of this guide to identify any problems.
Scanner installation is complete.
1. Be aware that beeper and LED behavior may have previously been configured
as “disabled” by another user.
U
S
B
U
S
B
R
S
-
2
3
2
I
B
M
or...
or...
Terminal (PC)
To Terminal (PC)
To Terminal (PC)
Other Non-POT Cables
Powered by AC Adapter
via short adapter cable
R
S
-
2
3
2
a
b
c
Power Off
the Terminal
(POT)
Keyboard Wedge, RS-232
and USB Cables
Powered by AC Adapter
Keyboard
Wedge

Datalogic MAGELLAN 3200VSI Specifications

General

Tilt angle range	0 - 360 °
Decoding standards	1D/2D/GS1/PDF417
Dimensions (WxDxH)	142 x 152 x 82 mm
Power consumption (standby)	1.8 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Cable length	4.5 m
Standard interfaces	USB
Certification	RoHS

Weight and Dimensions

Weight	600 g
