6 Magellan™ 8300/8400

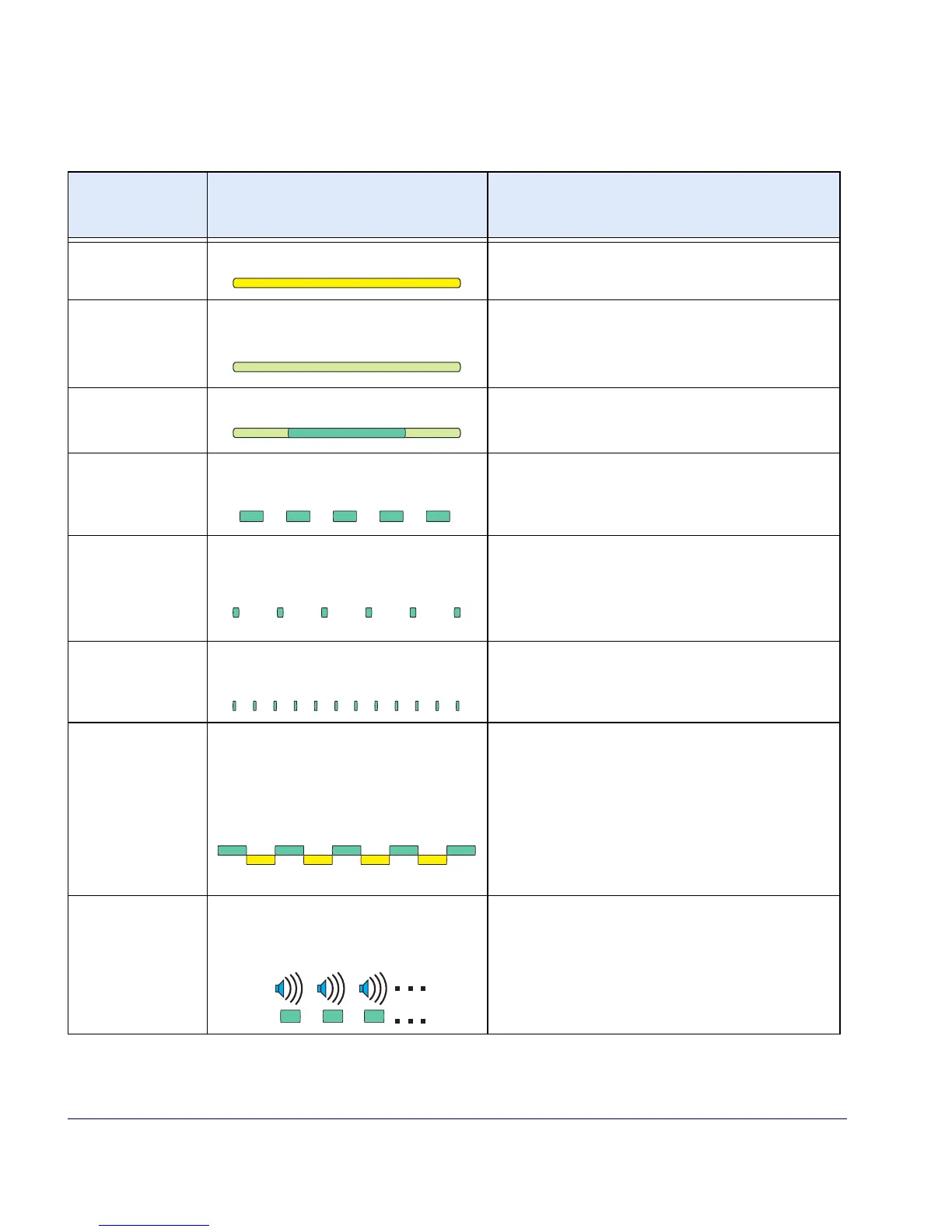

Table 1. Scanner and Scale Indications
LED
INDICATION
DURATION COMMENT
Scale at Zero
a
Scale (Yellow) LED on steady
The scale is at rest and reads zero
weight. The scale is ready to weigh.
Scanner Active
a
(Normal Mode)
Scanner (Green) LED on steady
and dim
The scanner is ready for operation.
Scanning is immediately available.
Good Read
Indication
a
Scanner (Green) LED - bright flash
Indicates a bar code has been read and
decoded.
Program Mode
Indication
Scanner (Green) LED - Continuous
flashing 1 second on, 1 second off
Indicates the scanner is in Label Pro-
gramming Mode. Cycle power to exit
Programming Mode.
Sleep Mode
Indication
Scanner (Green) LED flashes 10
mS on, 1990 mS off
The scanner motor and/or laser have
automatically switched off and the unit
has entered Sleep Mode due to extended
inactivity.
Host Disabled
Scanner (Green) LED 100 mS on,
900 mS off
Host has disabled scanning.
Field Replace-
able Unit
(FRU) Warning
(Error Mode)
Audible low error tone 1 second
Green and Yellow LEDs flash
alternately
Serves notice that a fatal FRU failure has
been detected. Consult the Product Ref-
erence Guide for more details. If a low
tone is heard, but continuous flashing is
not observed, the scanner can still func-
tion in a limited capacity. Call systems
support for service in either case.
FRU Indica-
tion
Scanner (Green) LED flashes a
coded sequence in concert with
the speaker.
Occurs ONLY upon Volume/Tone button
push following an FRU warning indica-
tion. Enables service technicians to
identify FRU failures.
a. Certain functions of the Green and Yellow LEDs are selectable to be enabled or disabled. Your scanner
may not be programmed to display all indications.
