Weighing Items Using the All-Weighs
®
Platter
Items to be weighed can be placed anywhere on the L-shaped All-
Weighs
®
platter (weigh platter) surface. Oversized items can even be
accurately weighed while leaned against the center of its vertical section
as shown.
The optional, raised Produce Bar or Produce Rail™ features conveniently
ensure that items do not rest on the counter or other non-weighing sur-
faces. With weighed items in place, enter PLU (Price Look-Up) data as
described in the POS instructions for your system. Weight data will be
displayed on the Remote Scale Display and/or the host display.

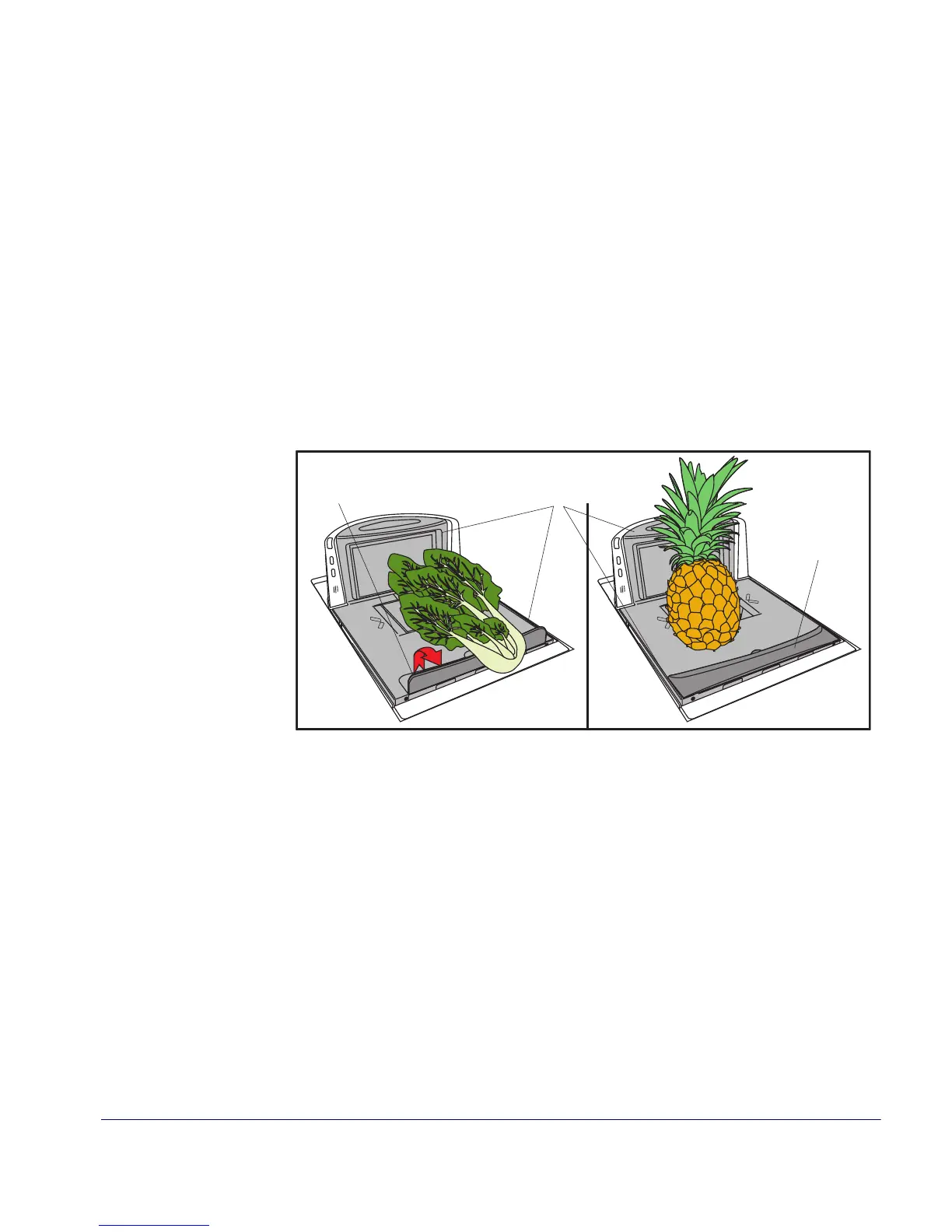

Figure 5. Weighing Items
All-Weighs
®
Platter
Produce
Bar Option
Produce
Rail Option
with the All-Weighs
®
Platter
LED and Beeper Indications
LED Indicators
The scanner LED (top-most) indicates scanner status, and the scale but-
ton/LED (scale models ONLY) is used to show scale status. See
Table 1
for a listing of LED indications.

Datalogic MAGELLAN 8300 Specifications

General

Read rate (max)	3900 reads/s
Decoding standards	1D, GS1 DataBar
Standard interfaces	Keyboard Wedge, RS-232
USB 2.0 ports quantity	1
Input voltage	100 - 250 V
Product color	Metallic
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	102 mm
Width	292 mm
Height	130 mm
