Datalogic MAGELLAN 8300

Counter Cutout
Technical Guide 2-13

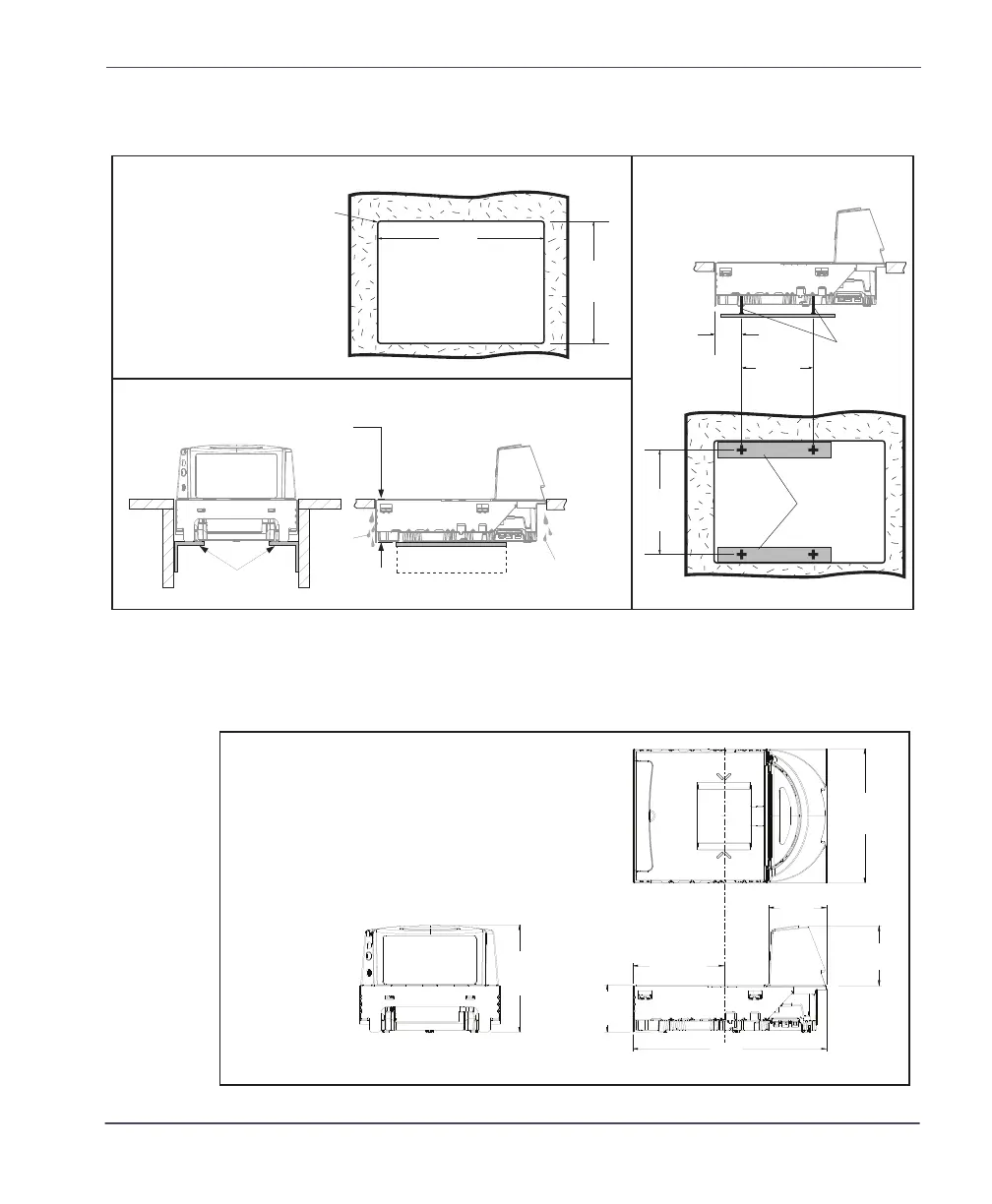

Figure 2-8. Medium Shelf Models 8302/8304/8402/8404
Cutout Dimensions
Figure 2-9. Medium Shelf Models 8302/8304/8402/8404
Scanner Reference Dimensions
Models 8302/8304/8402/8404 (Medium Shelf)
Minimum Cutout
Dimensions
Optional Leveling Feet
11.625"
(29.53cm)
min.
Max. Radius = 0.25"
(0.635cm) 4x
15.825"
(40.2cm)
min.
Models 8302/8304/8402/8404 (Medium Shelf)
Supports
4.08" (103.6mm)
Liquid
Drainage
Liquid
Drainage
Support Rails
6.89"
(17.5cm)
1.76"
(4.47cm)
10.83"
(27.5cm)
Shelf/
Support Rails
Leveling
Feet
Models 8302/8304/8402/8404 (Medium Shelf)
Scanner Reference Dimensions
7.5"
(19.05cm)
4.08"
(10.36cm
± 0.15cm)
15.71"
(39.9cm ± 0.15cm)
4.59"
(11.7cm)
11.5"
(29.21cm
± 0.1cm)
5.19"
(13.2cm)
9.27"
(23.6cm
± 0.2cm)
