Datalogic MAGELLAN 8300 Technical Guide

Calibrating the Scale
Technical Guide 4-5

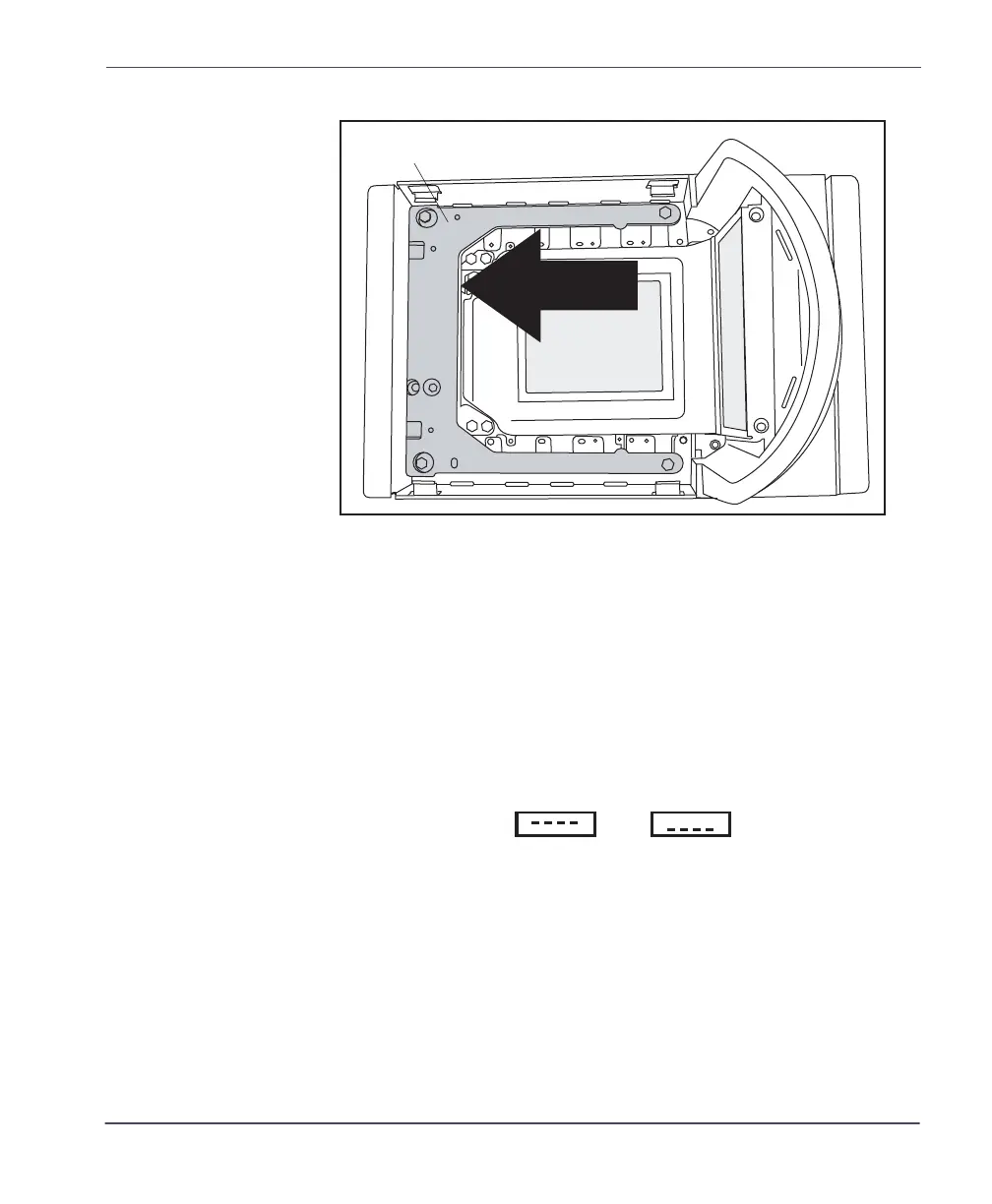

Figure 4-1. Calibration Switch Access
4. Press and release the Calibration Switch to place the scanner/scale in
Calibration Mode. The scanner/scale will sound a tone indicating it
is in Calibration Mode. If the motor was spinning when you initi-
ated Calibration Mode, the motor will stop and the Yellow LED will
begin flashing indicating the scale is in Calibration Mode. The dis-
play will show the message “ESCL” (empty scale).
5. Reinstall the weigh platter.
6. Press the Zero Push Button. The Yellow LED will go out for
approximately 10 seconds (or less) and the Remote Display will
alternately display and until the scale is
ready to proceed.
7. When the scale is ready, the Yellow LED will begin blinking again
and the display will show the message “Ad10 (add ten kilograms).”
The scanner/scale will also sound one tone when the scale is weigh-
ing in kilograms. Place the correct weight (ten kilograms for metric
calibration) from the Field Standard Weight set on the center of the
weighing area and press the Zero Push Button again.
Spider
Calibration
Switch
