Datalogic Magellan 9400i Setup Guide

Magellan 9300i/9400i/9800i Setup Guide
A Global Payments Company Page 2

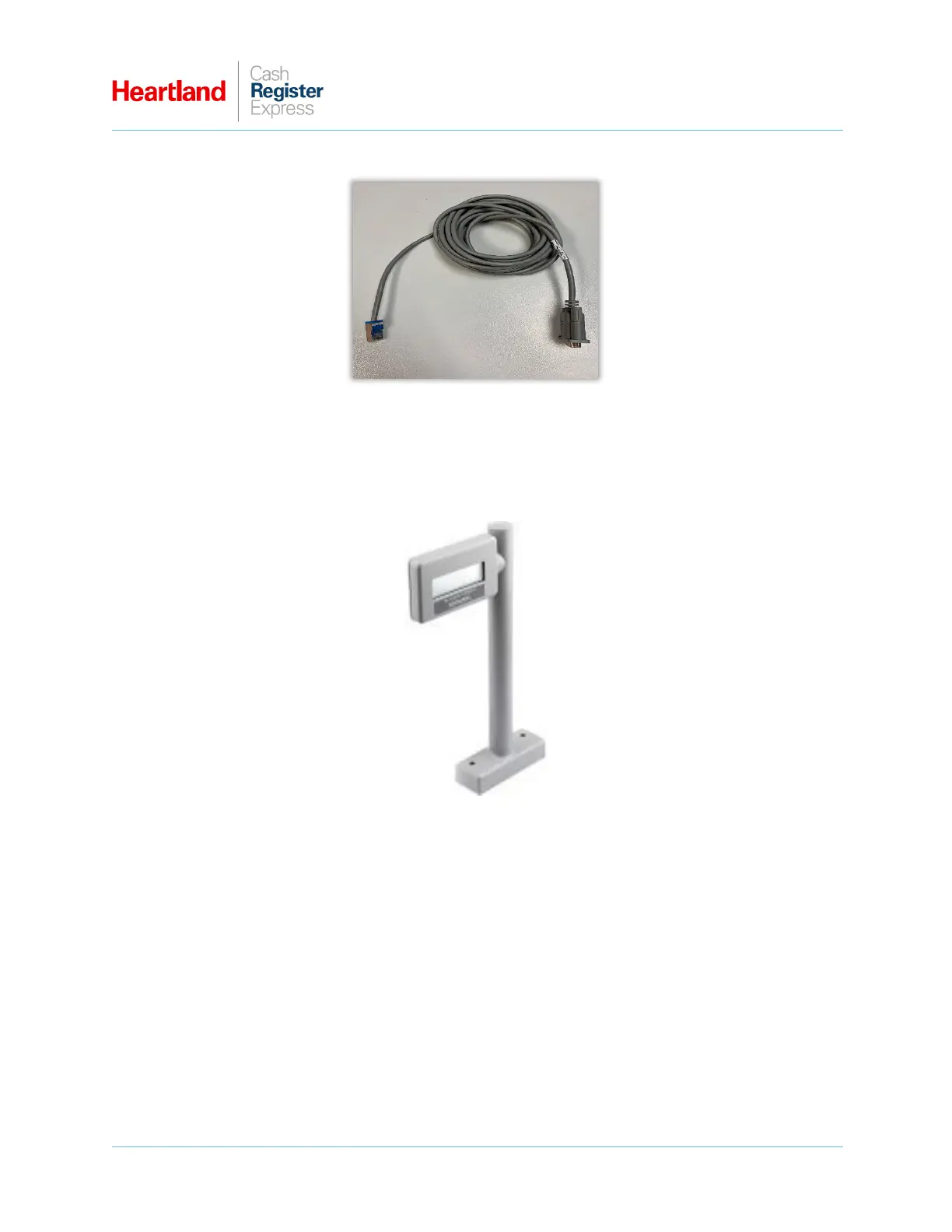

1 Insert the blue tipped end of the RS232 cable into the Host Port on the Scanner/Scale.
2 Connect the other end of the RS232 cable to your CRE workstation, either by plugging directly into a
serial port, or by connecting to a Cables 2 Go serial-to-USB adapter, and then connecting the adapter
to an open USB port on your register.
3 The optional remote display allows you to see the weight on the scale before the amount is sent to
CRE.
If you are using this device, connect it to the Remote Display port on the back of the scale.

Datalogic Magellan 9400i Specifications

General

Standard interfaces	USB
Connectivity technology	Wired
Type	Built-in bar code reader
Sensor type	Linear
Scanner type	1D/2D
Light levels (direct sunlight)	0 - 86080 lx
Linear (1D) barcodes supported	GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Micro QR Code, QR Code, Small Aztec Code
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power source type	AC
Power consumption (standby)	11 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Product color	Black, Grey
Housing material	-
Sustainability certificates	RoHS

Weight and Dimensions

Depth	102 mm
Width	401 mm
Height	130 mm
Weight	- g
