MATRIX N FAMILY HOST MODE PROGRAMMING
20
3

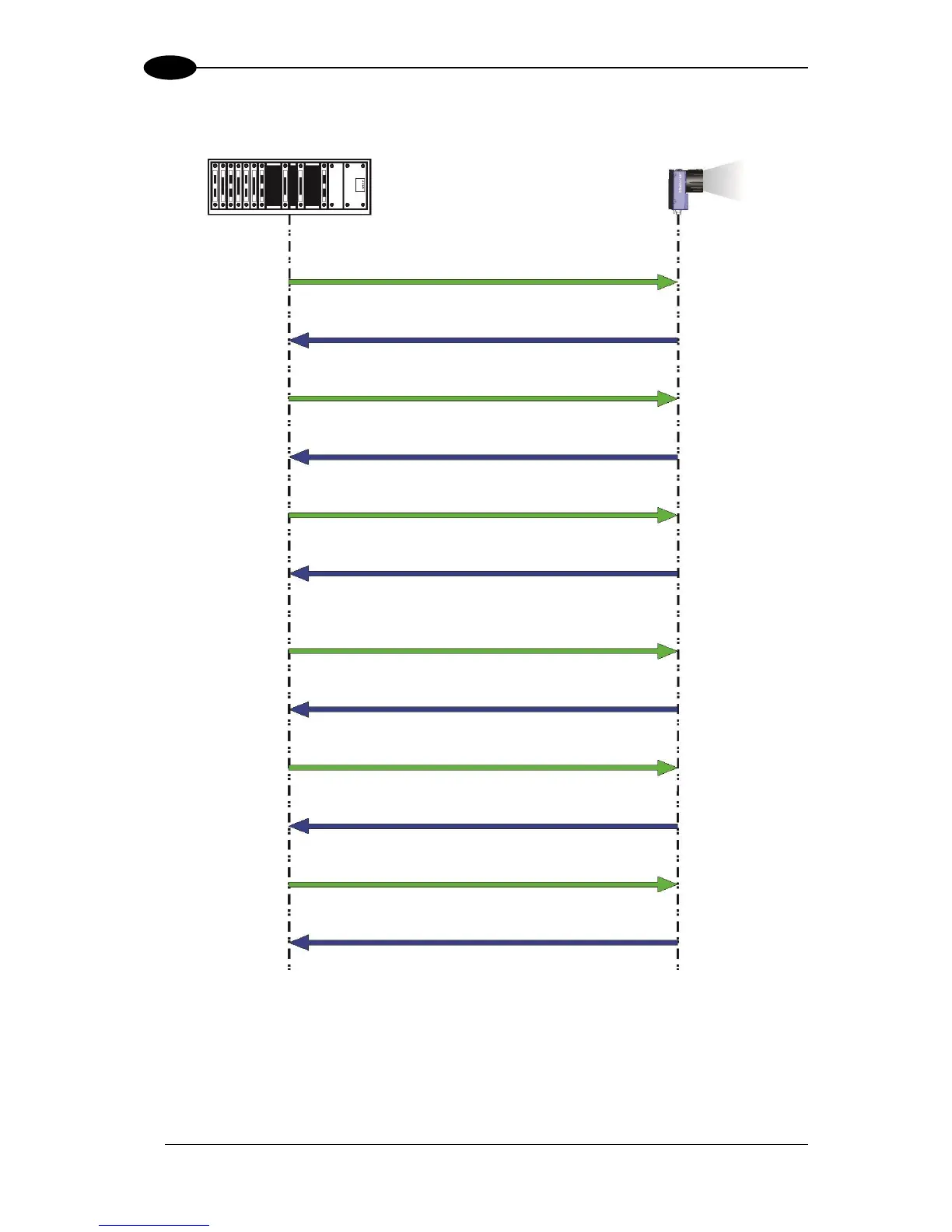

Figure 1 – Connection to Device, Programming and Disconnection from Device
ESC [ C
ESC [ B
COMMAND 1
COMMAND n
ESC H <CR><LF>
ESC S <CR><LF>
HOST
DEVICE
ACK <LF> or NACK <LF>
ACK <LF> or NACK <LF>
(SAVE COMMAND)
ACK <LF>
ESC [ A
ESC [ X
