POWERSCAN® D8530
4

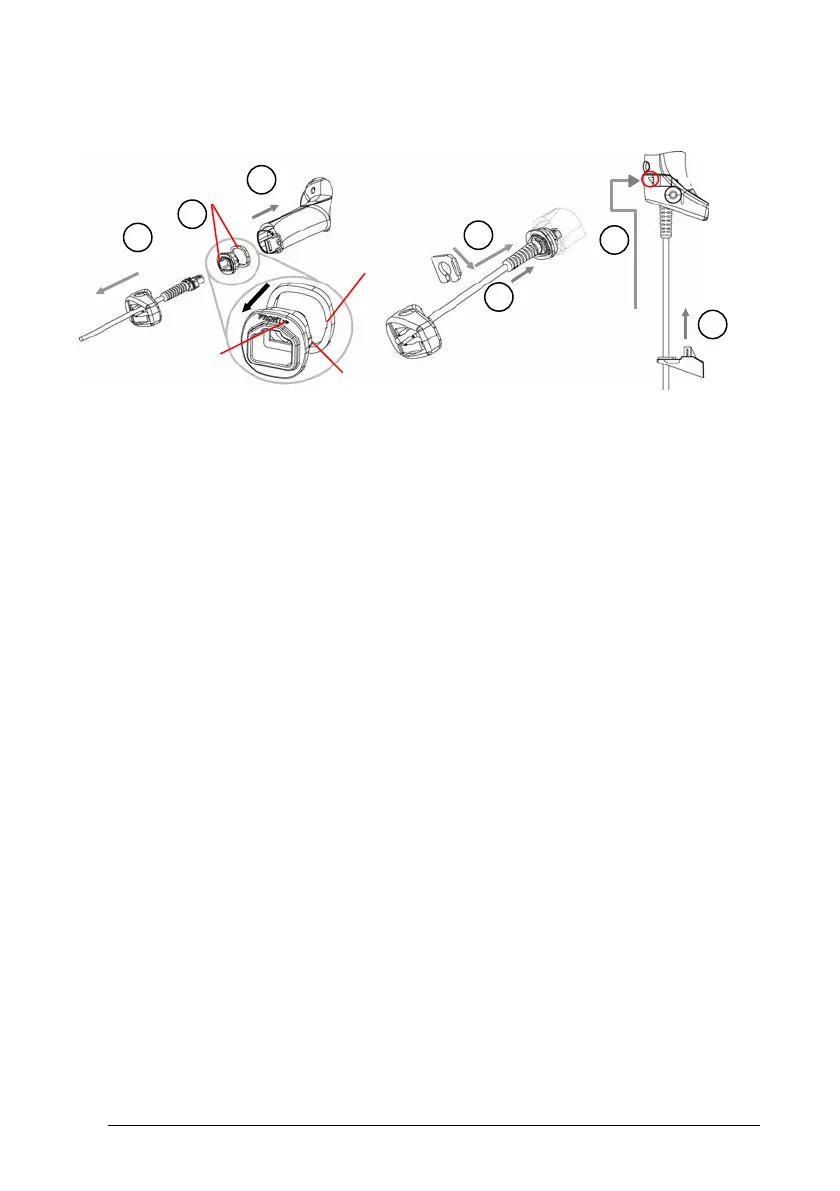

Follow the given procedure for correct cable insertion:
c Slip the cover over the cable.
d Push the plastic boot into the rubber gasket. Take care that the tab on the plastic
boot is aligned with the notch in the rubber gasket.
e Push the plastic boot and gasket into the handle. Ensure that the “Front” marking
on the plastic boot is facing out, with the arrow pointing towards the front of the
scanner.
f Insert the cable into the socket of the plastic boot.
g Insert the cable spacer into the cable wire and slide it towards the handle.
h Push the cover along the cable towards the reader, and hook it over the yellow
“tooth”.
i Insert the strain relief into the cover and tighten the screw to fix the whole
assembly to the reader handle.
Align
1
2
3
4
5
6
7
Notch
Tab
Arrow
To Next Page
