THE BC2090 RADIO BASE
Radio Base LEDs
LEDs on the QuickScan Base provide information about the
Base as well as battery charging status, as shown in Table 2.

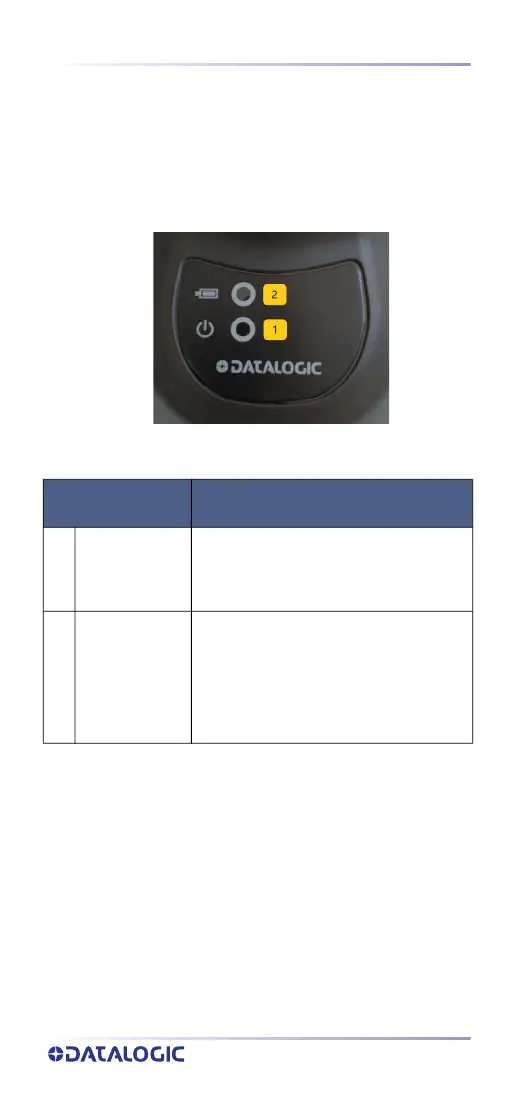

Figure 7 - QuickScan Base LEDs
Table 2 - Radio Base LEDs
The button can be used to force device connection via the
Datalogic Aladdin Software tool and for paging the scan-
ner when it is activated. Refer to the QuickScan™ QBT/
QM2500 Product Reference Guide (PRG) for a more
detailed explanation.
LED STATUS
1
Power ON / Data
Green On = Base is powered
Green Blinking = Base receives data and
commands from the Host or the Reader.
2 Charging
Green On = the battery is completely
charged
Green blinking = battery level 51 to 99%
Amber blinking = battery level 1 to 50%
Red blinking = pre-charge
