Using the QuickScan™ 2500
QUICK REFERENCE GUIDE 7
USING THE QUICKSCAN™ 2500
The QuickScan™ QD2500 and QW2500 normally function
by capturing and decoding codes. The reader is equipped
with an internal Motionix™ motion-sensing function
which activates the aiming system on device motion. The
intelligent aiming system indicates the field of view which
should be positioned over the bar code.
QuickScan™ QD2500

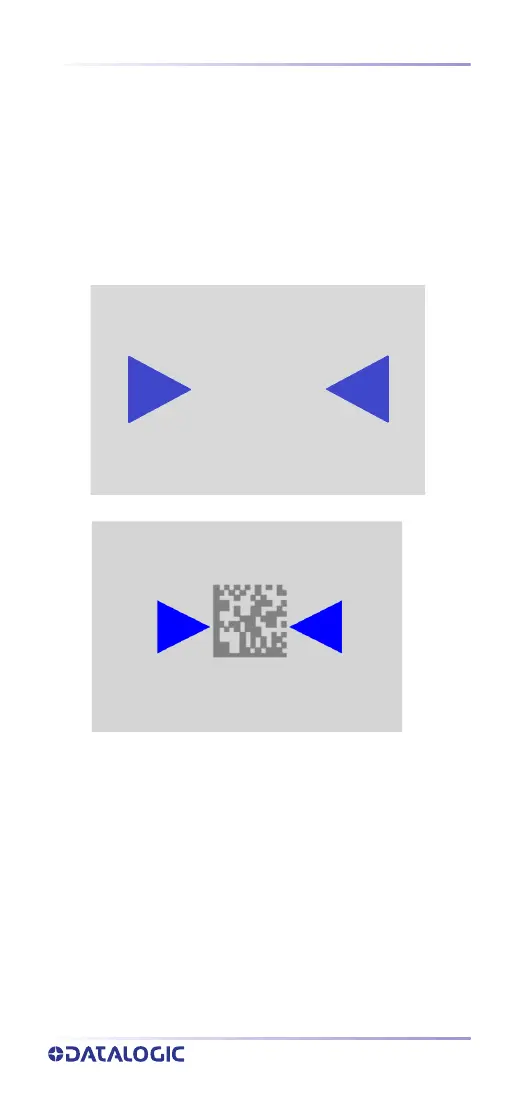

QuickScan™ QD2500’s Aiming System
Relative Size and Location of QuickScan™
QD2500’s Aiming System Pattern on 2D Matrix
Symbol
