Parts of the Reader
10 QUICKSCAN™ 2500

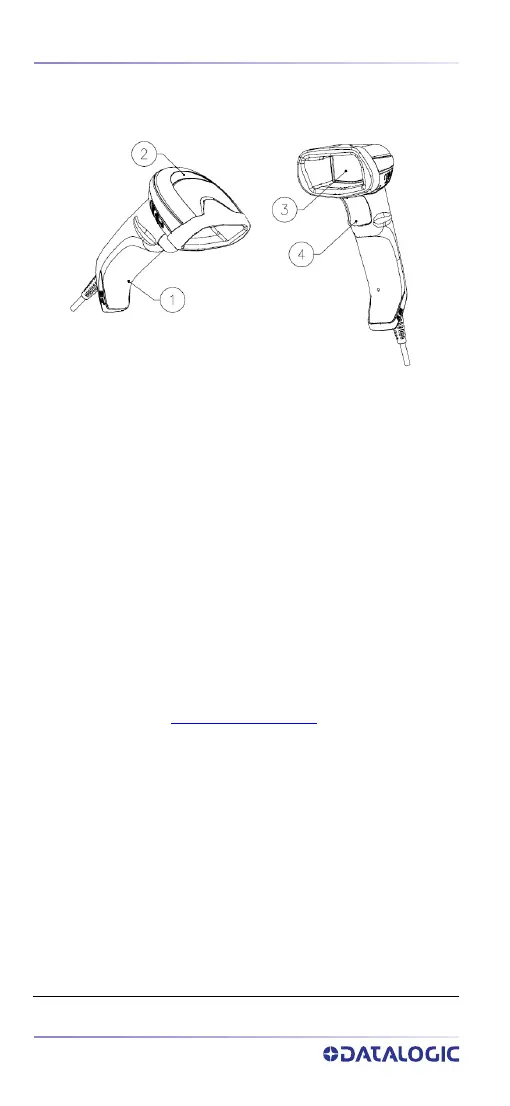

PARTS OF THE READER
1. Cable Release Hole 2. LED
3. Scan Window 4. Trigger
SELECTING THE INTERFACE TYPE
Upon completing the physical connection between the
reader and its host, proceed directly to Interface Selection
below for information and programming for the interface
type supported by the reader and scan the appropriate
bar code to select your system’s correct interface type,
according to your application.
For interfaces other than those
listed in this manual, see
the QuickScan™ 2500 Product Reference Guide
(PRG),
available online at
www.datalogic.com.
Interface Selection
The reader will support all the following host interfaces:
• R
S-232 STD
1
• RS-232 WN
1
• IBM46XX port 9b (a specific cable's required)
1
• USB HID POS
• USB T
oshiba TEC
• USB (K
eyboard, COM, OEM)
1. Available only for QuickScan™ QD2500
