Datalogic SC6000 Quick Reference Guide

SC6000 QUICK GUIDE
6

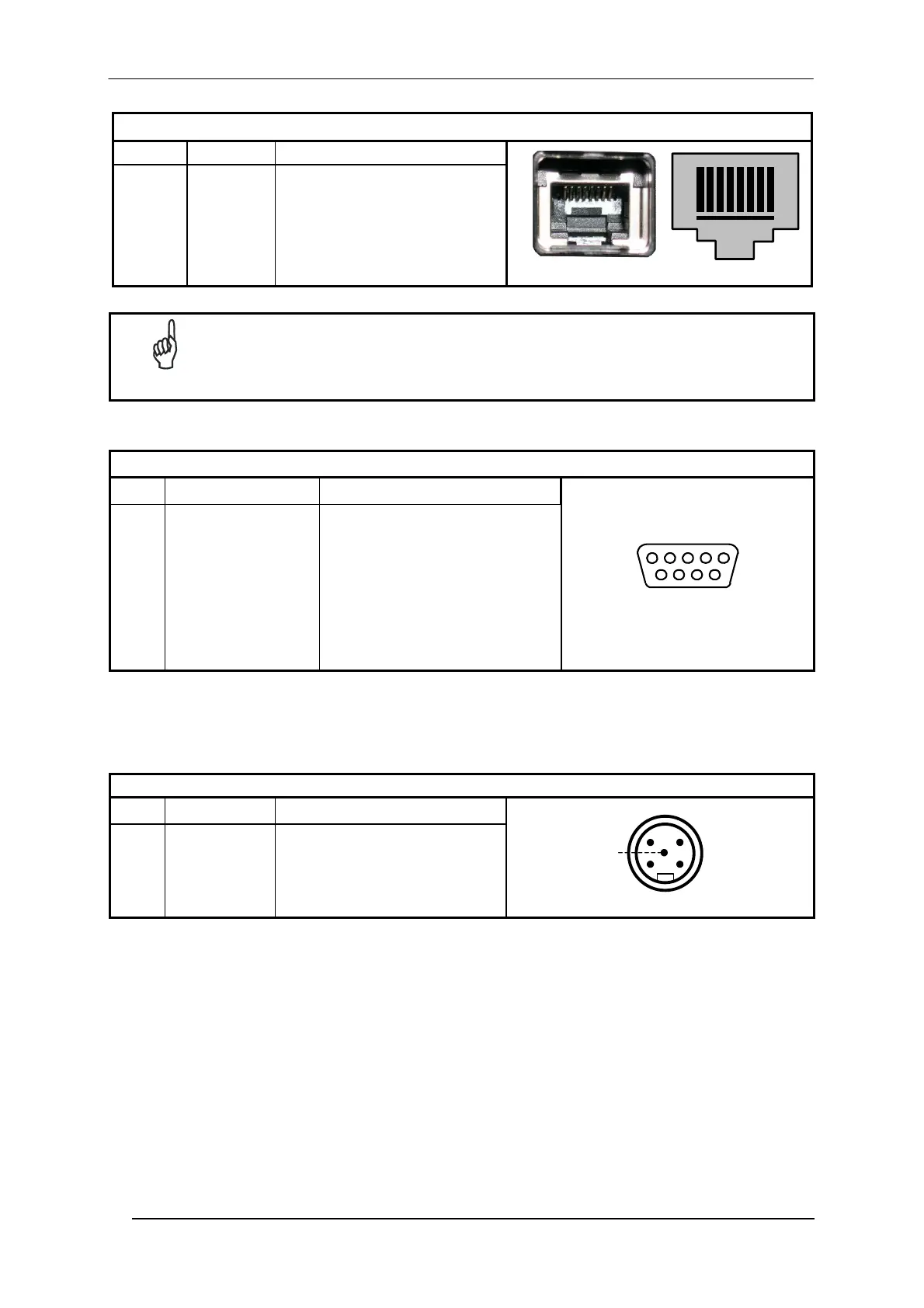

ETHERNET CONNECTOR
Pin Name Function
1 TX + Transmitted data (+)
2 TX - Transmitted data (-)
3 RX + Received data (+)
6 RX - Received data (-)
4, 5, 7, 8 N.C. Not connected
1
8
Harting RJ Industrial Female Connector
NOTE
For Ethernet connections, always use the Harting RJ Industrial® Push Pull Ethernet
connector (included in the package). This connector assures a robust connection and full IP
rated protection.
PROFIBUS CONNECTOR
Pin Name Function
1 Shield* Shield, protective ground resp.
2 N.C. Not connected
3 B-LINE (RxD/TxD-P) Received/Transmitted data-P
4 CNTR-P** Repeater control signal
5 DGND Data ground (M5V)
6 +5 V Voltage plus (P5V)
7 N.C. Not connected
8 A-LINE (RxD/TxD-N) Received/Transmitted data
9 CNTR-N** Repeater control signal
5
1
9
6
9-pin D-sub Female Connector
* signal is optional
** signal is optional; RS485 level
DEVICENET CONNECTOR
Pin Name Function
2 V+ Supply voltage – positive pin
5 CAN_L CAN bus data line – L
1 SHIELD Shield
4 CAN_H CAN bus data line – H
3 V- Supply voltage – negative pin
1
3
2
4
5
5-
p
in male DeviceNet Connector
